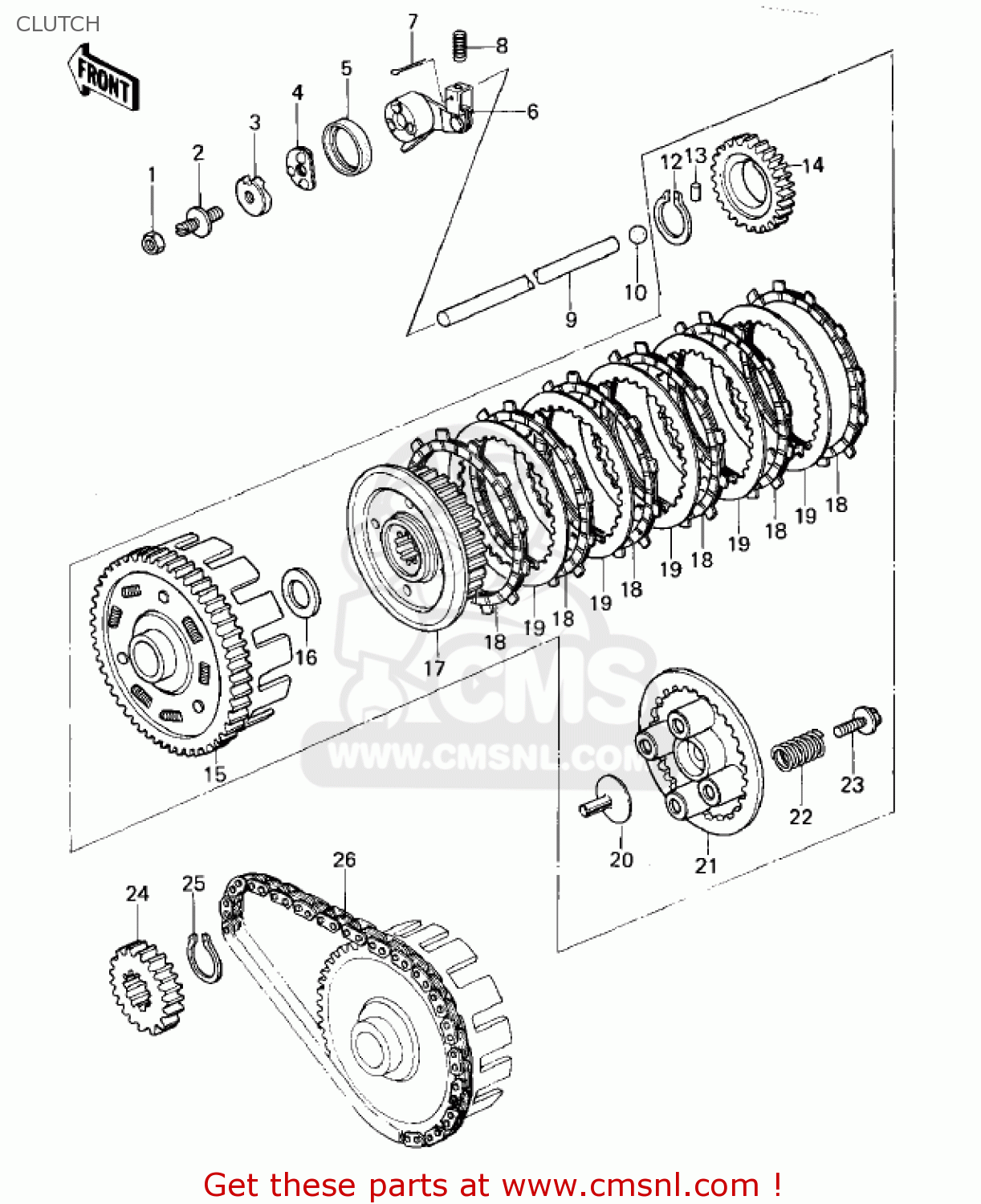

CLUTCH

ref

part #

description

quantity

1

318B0800
ref: 1

NUT,8MM

€ 0.50

2

920091009
ref: 2

SCREW,SLOTTED,8M/M

€ 2.50

3

131191003
ref: 3

CAM-RELEASE,CLUTCH

€ 11.50

4

920451001
ref: 4

BEARING,B.CLUTCH

€ 8.00

5

920491003
ref: 5

OIL SEAL,CLUTCH

€ 8.00

6

131021004
ref: 6

RELEASE-COMP-CLUTCH

€ 46.00

7

550D1615
ref: 7

PIN-COTTER,1.6X15

€ 1.50

8

920811058
ref: 8

SPRING,CLUTCH RETURN

€ 4.50

9

131161017
ref: 9

ROD-PUSH,CLUTCH,7X250

€ 26.00

10

600A1200
ref: 10

BALL-STEEL,3/8

€ 0.50

11

130811019
ref: 11

CLUTCH ASSY

€ 364.50

12

480J3800
ref: 12

CIRCLIP-TYPE-C,38MM

€ 3.50

13

610A0606
ref: 13

PIN,DOWEL,6X6

€ 1.50

14

590511001
ref: 14

GEAR OIL PUMP,34T

€ 32.00

15

130951008
ref: 15

HOUSING-COMP-CLUTCH

€ 237.50

16

92022288
ref: 16

WASHER,CLUTCH THRUST

€ 9.00

17

13087040
ref: 17

HUB,CLUTCH

€ 56.00

18

130881001
ref: 18

PLATE-FRICTION (NAS)

€ 11.50

19

13089026
ref: 19

PLATE,CLUTCH STEEL (NAS)

€ 6.50

20

13116029
ref: 20

ROD-PUSH,CLUTCH SPRIN

€ 18.00

21

131871003
ref: 21

PLATE,CLUTCH OPERATNG

€ 35.50

22

920811033
ref: 22

SPRING,CLUTCH

€ 6.50

23

920011066
ref: 23

BOLT, CLUTCH SPR FITT

€ 4.00

24

13121030
ref: 24

SPROCKET,PRIMARY

€ 38.50

25

480J3000
ref: 25

CIRCLIP-TYPE-C,30MM

€ 3.50

26

13122005A
ref: 26

CHAIN,63-139X74L(TUBA

€ 208.00

all assemblies
