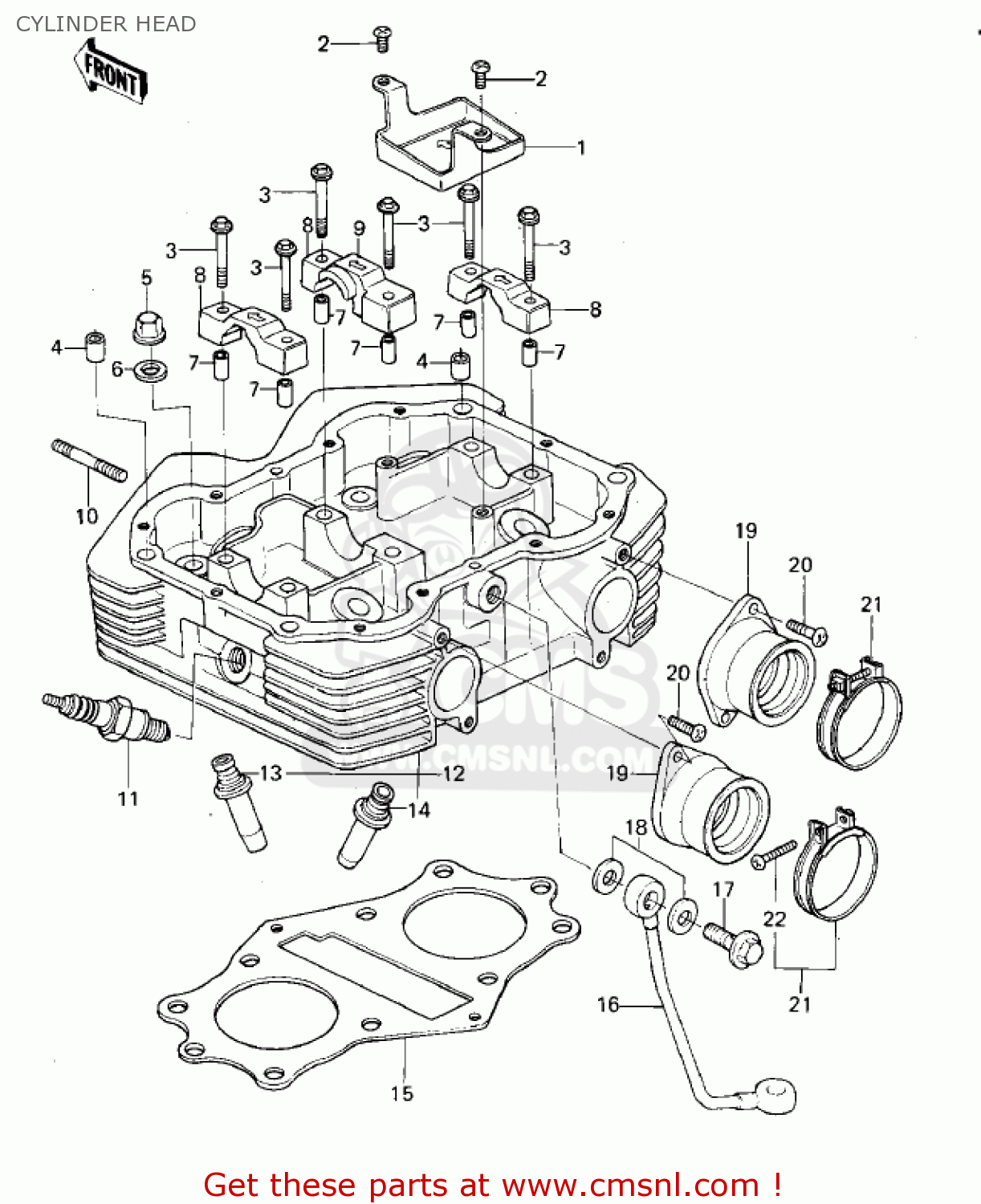

CYLINDER HEAD

ref

part #

description

quantity

1

110121027
ref: 1

CAP,CYLINDER HEAD OIL

€ 2.50

2

220B0610
ref: 2

SCREW-PAN HEAD,6X10

€ 2.00

3

92003206
ref: 3

BOLT, HEX HEAD, 6X38

€ 3.50

4

920431037
ref: 4

PIN,DOWEL,10X8.2X14

€ 0.50

5

92015076
ref: 5

NUT,FLANGED CAP,10MM

€ 9.00

6

920221005
ref: 6

WASHER,10.5X22X1.6

€ 3.00

7

92042007
ref: 7

PIN-DOWEL

€ 4.00

8

140221002
ref: 8

CAP,BEARING,HEAD,L&R

€ 44.00

9

140221003
ref: 9

CAP-BEARING,HEAD,CNT

€ 27.00

10

92004049
ref: 10

STUD,6X46

€ 5.50

11

B7ESA
ref: 11

SPARK PLUG, B7ES

€ 5.00

12

110021003
ref: 12

CYLINDER HEAD

€ 703.50

13

490021010
ref: 13

GUIDE-VALVE,EXHAUST

€ 20.50

14

12013003
ref: 14

GUIDE-VALVE,INTAKE

€ 24.00

15

110041008
ref: 15

GASKET,CYLINDER HEAD (MCA)

€ 39.00

16

320321084
ref: 16

PIPE,OIL

€ 26.50

17

920011017
ref: 17

BOLT,OIL PIPE

€ 12.50

18

110091105
ref: 18

GASKET,10X14.5X1.5 (NAS)

€ 4.00

19

160651002
ref: 19

HOLDER-CARBURETOR

€ 25.50

20

220B0618
ref: 20

SCREW-PAN HEAD,6X18

€ 2.50

21

920371021
ref: 21

CLAMP,CARBURETOR

€ 2.00

22

220B0530
ref: 22

SCREW-PAN-CROS

€ 2.00

1

120201001
ref: 1

SHAFT,ROCKER

€ 7.50

2

110091106
ref: 2

GASKET,16X19.7X1.5 (NAS)

€ 3.00

3

92016061
ref: 3

NUT,ROCKER ARM FITING

€ 3.00

4

920091032
ref: 4

SCREW,ADJUSTING

€ 4.00

5

120161001
ref: 5

ARM,ROCKER

€ 35.00

6

12011004
ref: 6

COLLET,RETAINER

€ 3.50

7

12009006
ref: 7

RETAINER,VALVE SPRIN

€ 7.50

8

12007013
ref: 8

SPRING,OUTER VALVE

€ 11.00

9

12007014
ref: 9

SPRING,INNER VALVE

€ 11.00

10

92049016
ref: 10

OIL SEAL,RV37129.5

€ 13.50

11

12010006
ref: 11

SEAT,VALVE INNER SPR

€ 2.00

12

12010005
ref: 12

SEAT-SPRING,OUTER

€ 4.50

13

120051001
ref: 13

VALVE,EXHAUST

€ 44.00

14

120041001
ref: 14

VALVE,INTAKE

€ 35.00
