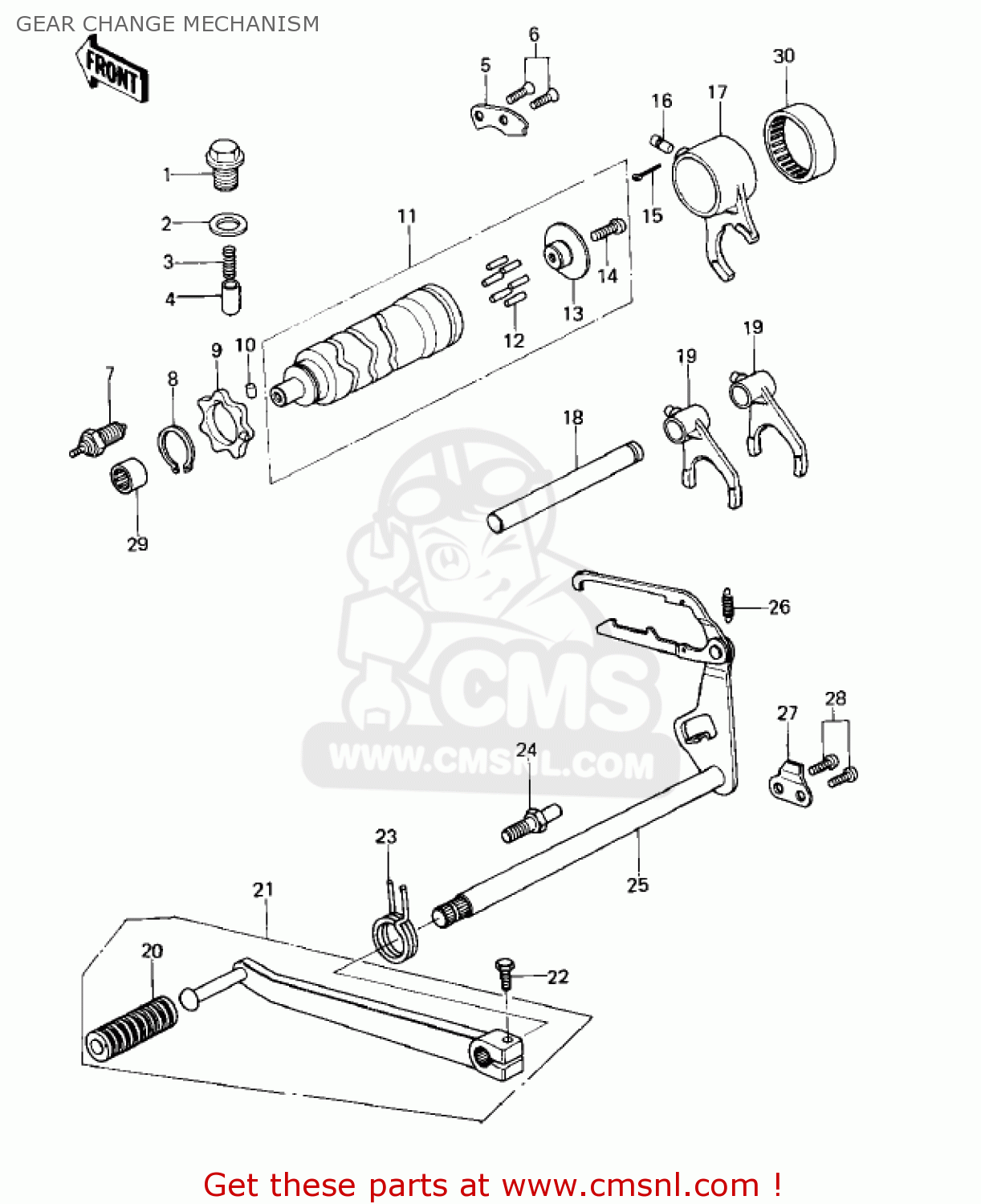

GEAR CHANGE MECHANISM

ref

part #

description

quantity

1

920011037
ref: 1

BOLT,NEUTAL POSITION

€ 9.50

2

110091008
ref: 2

GASKET,15.5X22X1 (NAS)

€ 2.50

3

92081112
ref: 3

SPRING

€ 4.00

4

92043076
ref: 4

PIN-NEUTRAL PISTON

€ 8.00

5

140141001
ref: 5

PLATE,SFT DRUM POSTON

€ 8.50

6

920091007
ref: 6

SCREW,CSK,6X16

€ 2.00

7

131515002
ref: 7

SWITCH,NEUTRAL

€ 22.50

8

480J3000
ref: 8

CIRCLIP-TYPE-C,30MM

€ 3.50

9

131451058
ref: 9

CAM-CHANGE DRUM

€ 15.00

10

610A0406
ref: 10

ROLLER,4X6

€ 2.50

11

132391011
ref: 11

DRUM ASSY,CHANGE

€ 127.00

12

92042014
ref: 12

PIN-GEAR CHANGE DRUM

€ 0.50

13

13142016
ref: 13

PLATE,SHIFT DRUM PIN

€ 26.00

14

220B0614
ref: 14

SCREW-PAN HEAD,6X14

€ 2.00

15

550D3020
ref: 15

PIN-COTTER,3.0X20

€ 2.00

16

92042021
ref: 16

PIN,DOWEL,8X18

€ 7.00

17

131401053
ref: 17

FORK-SHIFT,5TH&TOP

€ 35.50

18

13209022
ref: 18

ROD,SHIFT

€ 8.00

19

131401067
ref: 19

FORK-SHIFT,1,4&2,3

€ 51.00

20

13157004
ref: 20

RUBBER-CHANGE PEDAL

€ 4.00

21

13242017
ref: 21

LEVER-ASSY-CHANGE,PED

€ 36.00

22

112G0620
ref: 22

BOLT 6X20

€ 1.00

23

92083021
ref: 23
E/NO. 118001

SPRING,CHG PEDL RTN

€ 10.00

23

92083028
ref: 23
E/NO. 141331

SPRING,CHG PEDL RTRN

€ 9.50

24

920011401
ref: 24

BOLT,RETURN SPRING

€ 3.00

25

131611001
ref: 25

LEVER COMP,CHANGE

€ 71.00

26

92081076
ref: 26

SPRING-CHANG LEVER

€ 3.50

27

13169011
ref: 27

PLATE,SHIFT LEVER

€ 6.00

28

220B0616
ref: 28

SCREW-PAN HEAD,6X16

€ 2.50

29

920461010
ref: 29

BEARING-NEEDLE,HK1210

€ 17.00

30

92046051
ref: 30

BEARING-NEEDLE,37BTM4

€ 23.00

all assemblies
