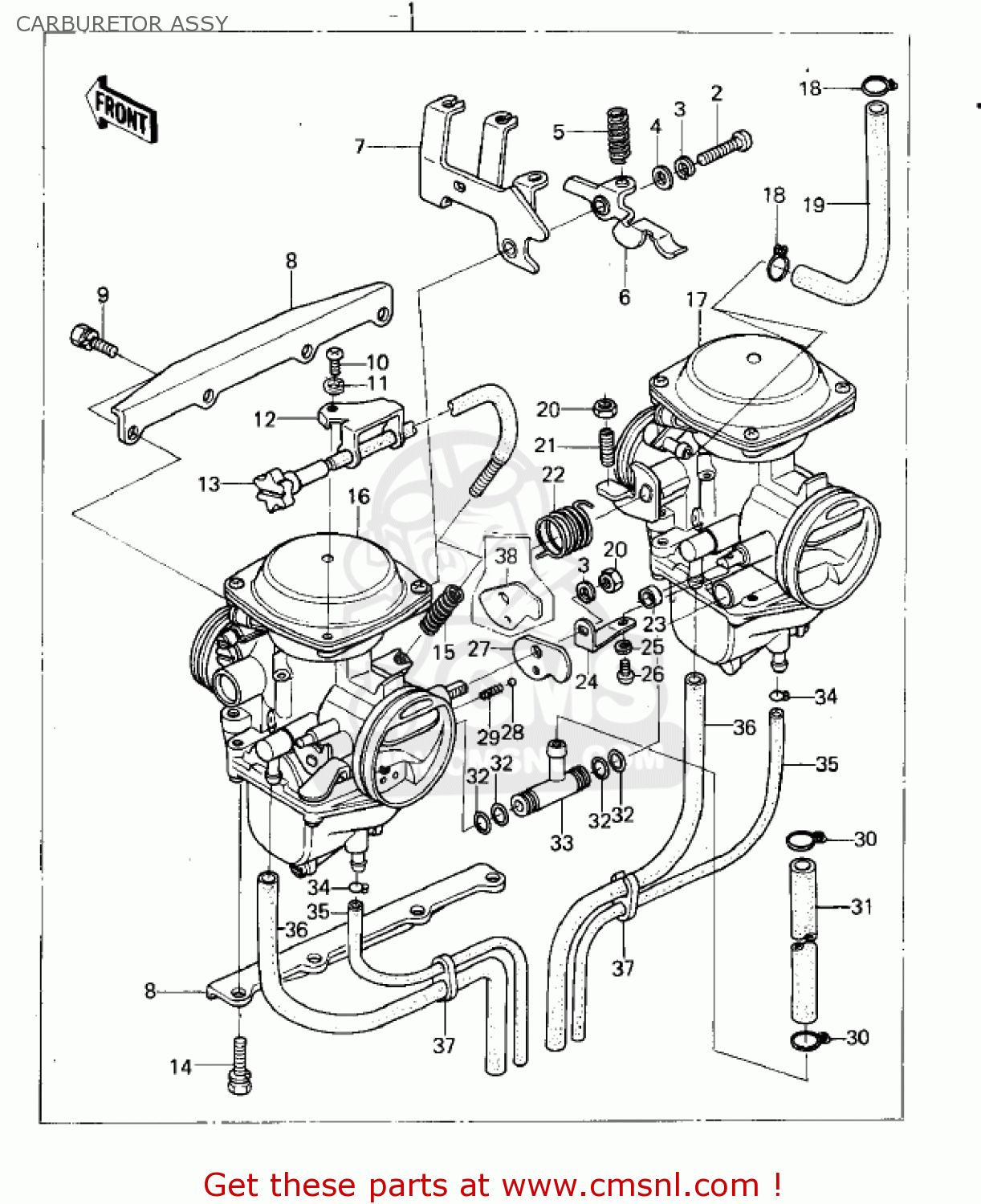

CARBURETOR ASSY

ref

part #

description

quantity

1

160011334
ref: 1
KZ400-B1

CARBURETOR ASSY

€ 496.50

1

160011112
ref: 1
KZ400-B2

CARBURETOR.ASSY,SWIT

€ 541.00

1

160011334
ref: 1
KZ400-B2

CARBURETOR ASSY

€ 496.50

2

220B0525
ref: 2

SCREW-PAN-CROS,5X25

€ 2.50

3

461F0500
ref: 3

WASHER-SPRING,5MM

€ 0.50

4

16039027
ref: 4

WASHER,PLAIN

€ 1.00

5

920811003
ref: 5

SPRING

€ 7.50

6

110341009
ref: 6

ROCKER ARM

€ 7.00

7

110341008
ref: 7

BRACKET,THR.CBL PULLY

€ 50.00

8

160651012
ref: 8

PLATE,STAY

€ 23.00

9

920091129
ref: 9

SCREW,6X16

€ 3.00

10

220B0410
ref: 10

SCREW-PAN-CROS

€ 2.00

11

461F0400
ref: 11

WASHER-SPRING,4MM

€ 0.50

12

110341202
ref: 12

BRACKET,STOP SCREW

€ 17.50

13

160211007
ref: 13

SCREW-THROTTLE STOP

€ 18.50

14

920091006
ref: 14

BOLT, HEX HEAD, 6X22

€ 3.00

15

920811062
ref: 15

SPRING,STOP SCREW

€ 4.50

16

160011064
ref: 16
USE FOR 16001-1008

CARBURETOR,L.H

€ 276.00

16

160011117
ref: 16
USE FOR 16001-1112

CARBURETOR,L.H,SWIT

€ 298.00

16

160011110
ref: 16
USE FOR 16001-1097

CARBURETOR,L.H.

€ 259.50

17

160011065
ref: 17
USE FOR 16001-1008

CARBURETOR,R.H

€ 262.50

17

160011118
ref: 17
USE FOR 16001-1112

CARBURETOR,R.H,SWIT

€ 272.00

17

160011111
ref: 17
USE FOR 16001-1097

CARBURETOR,R.H.

€ 272.00

18

920371040
ref: 18

CLAMP,FUEL HOSE

€ 2.00

19

920591001
ref: 19

HOSE, FUEL INLET

€ 13.50

20

311B0500
ref: 20

NUT-HEX

€ 0.50

21

160211002
ref: 21

SCREW, SLOTTED

€ 1.50

22

920811063
ref: 22

SPRING

€ 8.50

23

160731001
ref: 23

COLLAR, CHOKE LEVER

€ 1.50

24

110341203
ref: 24

BRACKET,CHOKE LEVER

€ 6.00

25

461F0300
ref: 25

WASHER-SPRING,3MM

€ 0.50

26

220B0306
ref: 26

SCREW-PAN-CROS

€ 0.50

27

131691015
ref: 27
USE FOR 16001-1008

CAM,CHOKE LINK

€ 2.50

28

600A0400
ref: 28

BALL-STEEL,1/8

€ 2.00

29

920811004
ref: 29

SPRING

€ 3.00

30

920371075
ref: 30

CLAMP,FUEL INLET TUBE

€ 2.50

31

920591029
ref: 31

TUBE,FUEL,7.3X12.5X20

€ 18.50

32

920551004
ref: 32

O RING

€ 2.50

33

920051033
ref: 33

FITTING,FUEL TUBE

€ 30.00

34

920371142
ref: 34

CLAMP,TUBE

€ 2.50

35

92059111
ref: 35

HOSE,FUEL OVERFLOW

€ 17.50

36

92059110
ref: 36

HOSE

€ 11.50

37

920371067
ref: 37

CLAMP,OVRFLW-ARVNT

€ 3.00

38

131691151
ref: 38
USE FOR 16001-1112/-

PLATE,CHOKE LINK

€ 4.50

all assemblies
