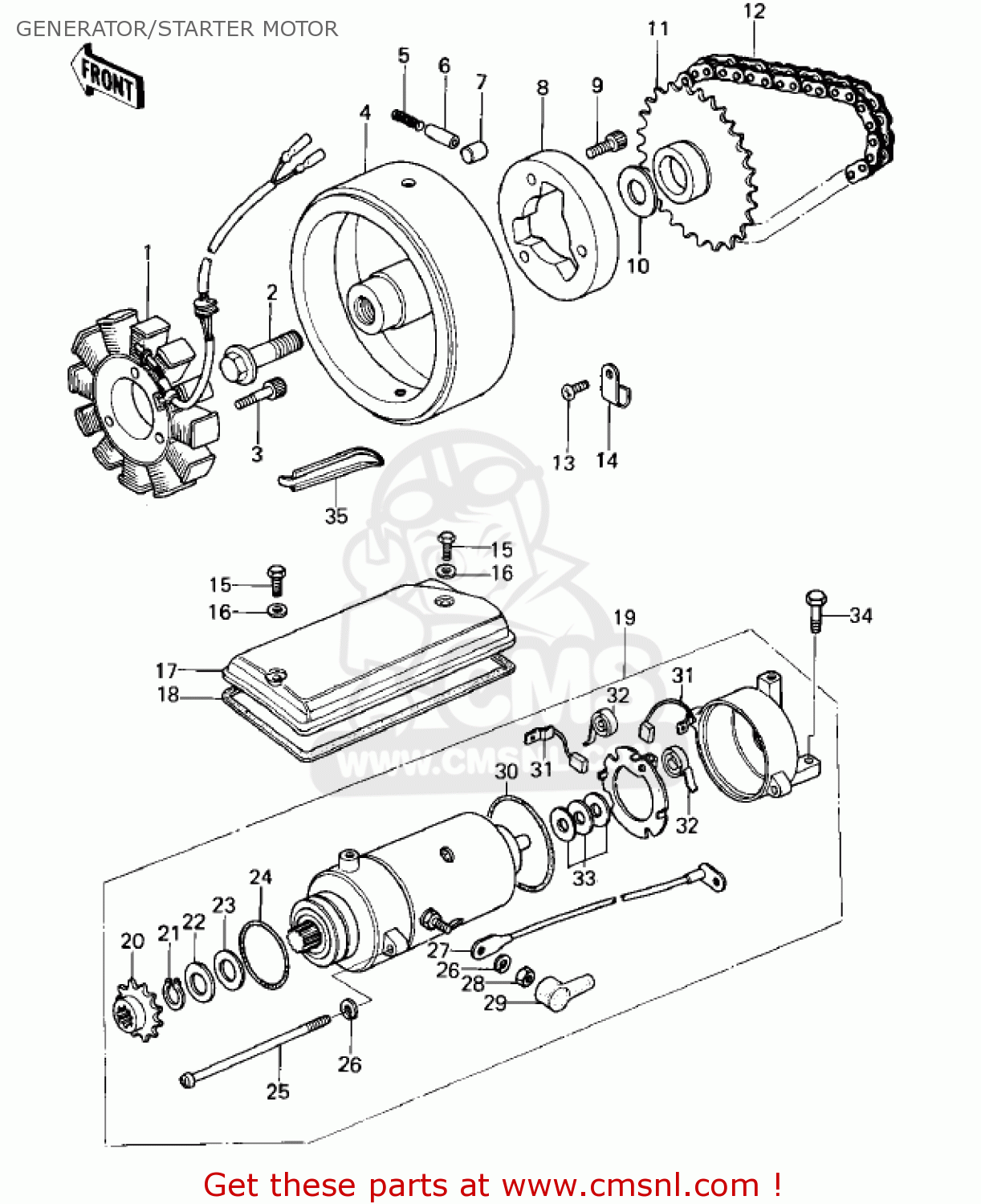

GENERATOR/STARTER MOTOR

ref

part #

description

quantity

1

210031009
ref: 1

STATOR ASSY,GENERATER

€ 332.50

2

920021303
ref: 2

BOLT,10X40

€ 9.50

3

120P0628
ref: 3

BOLT,ALLEN,6X28

€ 3.00

4

210501004
ref: 4

FLYWHEEL,GENERATOR

€ 560.50

5

92081110
ref: 5

SPRING

€ 3.00

6

92043087
ref: 6

PIN

€ 8.00

7

92122004
ref: 7

ROLLER,15X13

€ 7.00

8

120P0816
ref: 8

BOLT-SOCKET

€ 2.50

9

120P0816
ref: 9

BOLT-SOCKET

€ 2.50

10

920261004
ref: 10

SPACER,25X40X1

€ 4.50

11

120461030
ref: 11

SPROCKET,ONWAY CLUTCH

€ 99.00

12

920571009
ref: 12

CHAIN,DYNAMO

€ 12.50

13

220B0610
ref: 13

SCREW-PAN HEAD,6X10

€ 2.00

14

21126008
ref: 14

CLAMP,WIRING HARNESS

€ 3.00

15

110R0610
ref: 15

BOLT,6X10

€ 5.00

16

410D0600
ref: 16

WASHER-PLAIN-SMALL,6M

€ 0.50

17

140251284
ref: 17

COVER,STARTER

€ 16.00

18

110091006
ref: 18

GASKET,STARTER COVER (NAS)

€ 8.00

19

211631011
ref: 19

MOTOR ASSY,STARTER

€ 595.00

20

21053002
ref: 20

SPROCKET,STARTNG MOT

€ 24.50

21

480J1400
ref: 21

CIRCLIP-TYPE-C,14MM

€ 3.00

22

21025008
ref: 22

WASHER,PLAIN,14MM

€ 3.50

23

21025009
ref: 23

WASHER,PLAIN,14MM

€ 3.50

24

21027005
ref: 24

'O' RING,42.8MM

€ 5.50

25

220B06110
ref: 25

SCREW-PAN HEAD,6X110

€ 2.50

26

461F0600
ref: 26

WASHER-SPRING,6MM

€ 0.50

27

26010035
ref: 27

WIRE,STARTER LEAD

€ 33.50

28

312B0600
ref: 28

NUT,6MM

€ 0.50

29

21017020
ref: 29

CAP,STARTING MOTOR

€ 6.00

30

21027006
ref: 30

RING-O,62MM

€ 8.00

31

21039004
ref: 31

BRUSH,CARBON

€ 23.00

32

21040004
ref: 32

SPRING-BRUSH

€ 5.50

33

21025007
ref: 33

WASHER,PLAIN,9MM

€ 2.50

34

112G0625
ref: 34

BOLT-UPSET,6X25

€ 4.00

35

131691008
ref: 35

PLATE,LEAD CLAMP

€ 2.00
