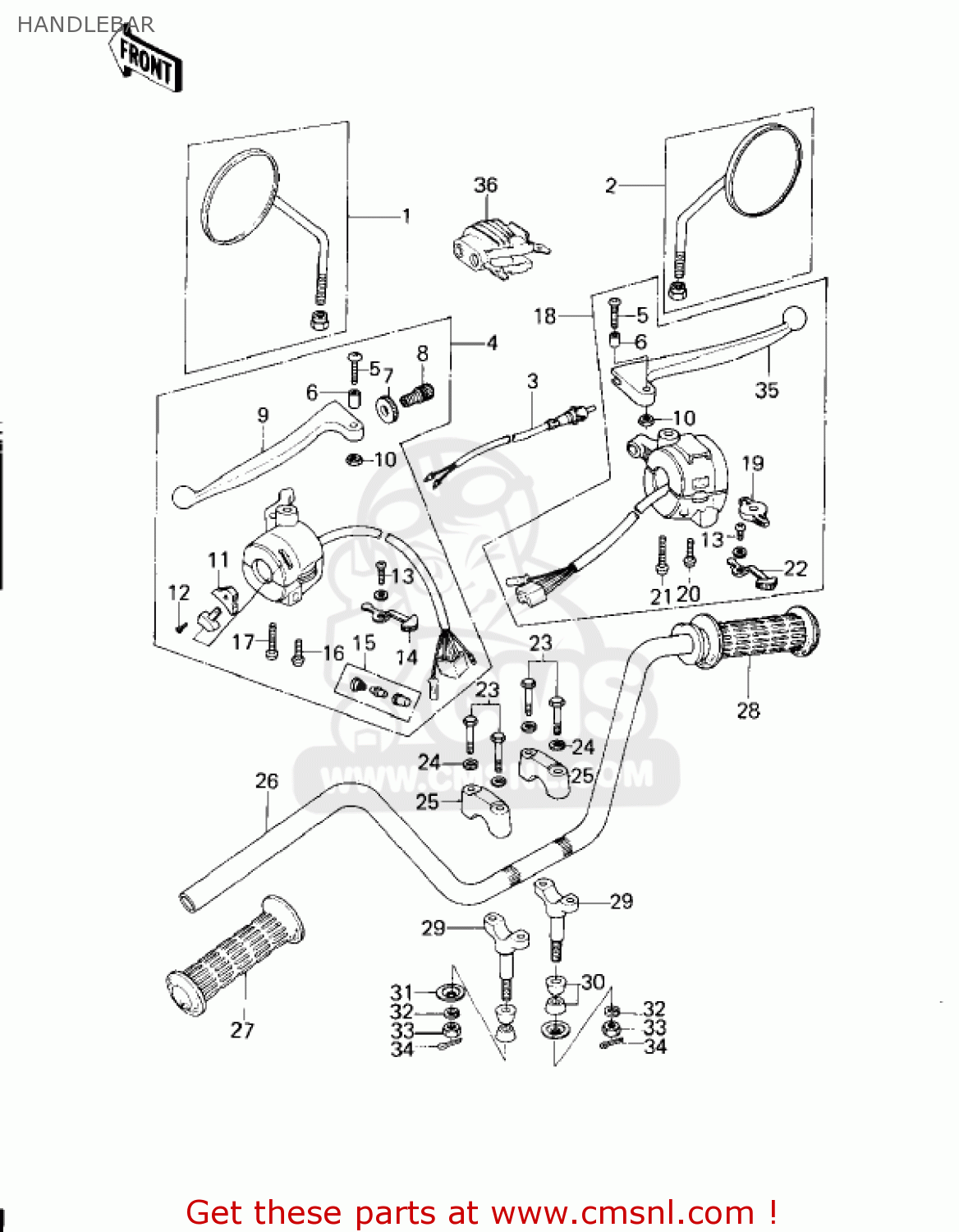

HANDLEBAR

ref

part #

description

quantity

1

56003019
ref: 1

MIRROR-ASSY,LH

€ 51.00

2

56002029
ref: 2
OPTION

MIRROR-ASSY,RH

€ 49.00

3

27021004
ref: 3

SWITCH,FR BRAKE LAMP

€ 23.00

4

460911004
ref: 4

CONTROLLER HOUSING ASSEMBLY,LH

€ 92.00

5

220B0522
ref: 5

SCREW-PAN-CROS

€ 0.50

6

920271042
ref: 6

COLLAR, LEVER

€ 2.00

7

46056005
ref: 7

NUT-LOCK

€ 6.00

8

46055003
ref: 8

SCREW-CABLE ADJUST

€ 11.50

9

46092024
ref: 9

LEVER-GRIP,CLUTCH

€ 10.50

10

92019014
ref: 10

NUT-LOCK,5M/M

€ 2.50

11

46044013
ref: 11

KNOB,LIGHTING SWITCH,

€ 8.00

12

221B0308A
ref: 12

SCREW-CNTSNK HD,3X8

€ 2.50

13

220B0305A
ref: 13

SCREW-PAN HEAD,3X5

€ 1.00

14

920771003
ref: 14

KNOB,SIGNAL LAMP SWIT

€ 9.50

15

270101009
ref: 15

SWITCH ASSY,HORN BUTN

€ 5.50

16

220B0525
ref: 16

SCREW-PAN-CROS,5X25

€ 2.50

17

920091018
ref: 17

SCREW,PAN HEAD,5X38

€ 2.00

18

460911006
ref: 18
KZ200-A1

CONTROLLER HOUSING ASSEMBLY,RH

€ 71.00

18

460911007
ref: 18
KZ200-A1A~

CONTROLLER HOUSING ASSEMBLY,RH

€ 57.50

18

460911007
ref: 18
USE FOR CANADIAN MAR

CONTROLLER HOUSING ASSEMBLY,RH

€ 57.50

19

920771002
ref: 19

KNOB, ENGINE STOP

€ 7.50

20

220B0530
ref: 20

SCREW-PAN-CROS

€ 2.00

21

920091017
ref: 21

SCREW,PAN HEAD,5X48

€ 2.50

22

46043006
ref: 22
NOT USE FOR P/NO. 46

KNOB-ASSY,LIGHTING SW

€ 8.00

23

920011405
ref: 23

BOLT,8X38

€ 10.00

24

461F0800
ref: 24

WASHER-SPRING,8MM

€ 0.50

25

46012008
ref: 25
UPPER

HOLDER-HANDLE,UPP

€ 23.00

26

46003041
ref: 26

HANDLEBAR

€ 212.00

27

46075028
ref: 27

GRIP,LH

€ 32.00

28

46019041
ref: 28

GRIP-ASSY,THROTTLE

€ 28.00

29

46012010
ref: 29
LOWER

HOLDER-HANDLE,LWR

€ 20.00

30

92075039
ref: 30

DAMPER RUBBER-HANDLE

€ 3.00

31

46016003
ref: 31

PLATE,HANDLE HOLDER

€ 3.50

32

461F1000
ref: 32

WASHER-SPRING,10MM

€ 0.50

33

314B1000
ref: 33

NUT,10MM

€ 0.50

34

554A0800
ref: 34

PIN-SNAP,8MM

€ 1.00

35

46058019
ref: 35

LEVER-GRIP,FRONT BRAK

€ 16.50

36

490161028
ref: 36
KZ200-A2

DUST COVER

€ 4.00

all assemblies
