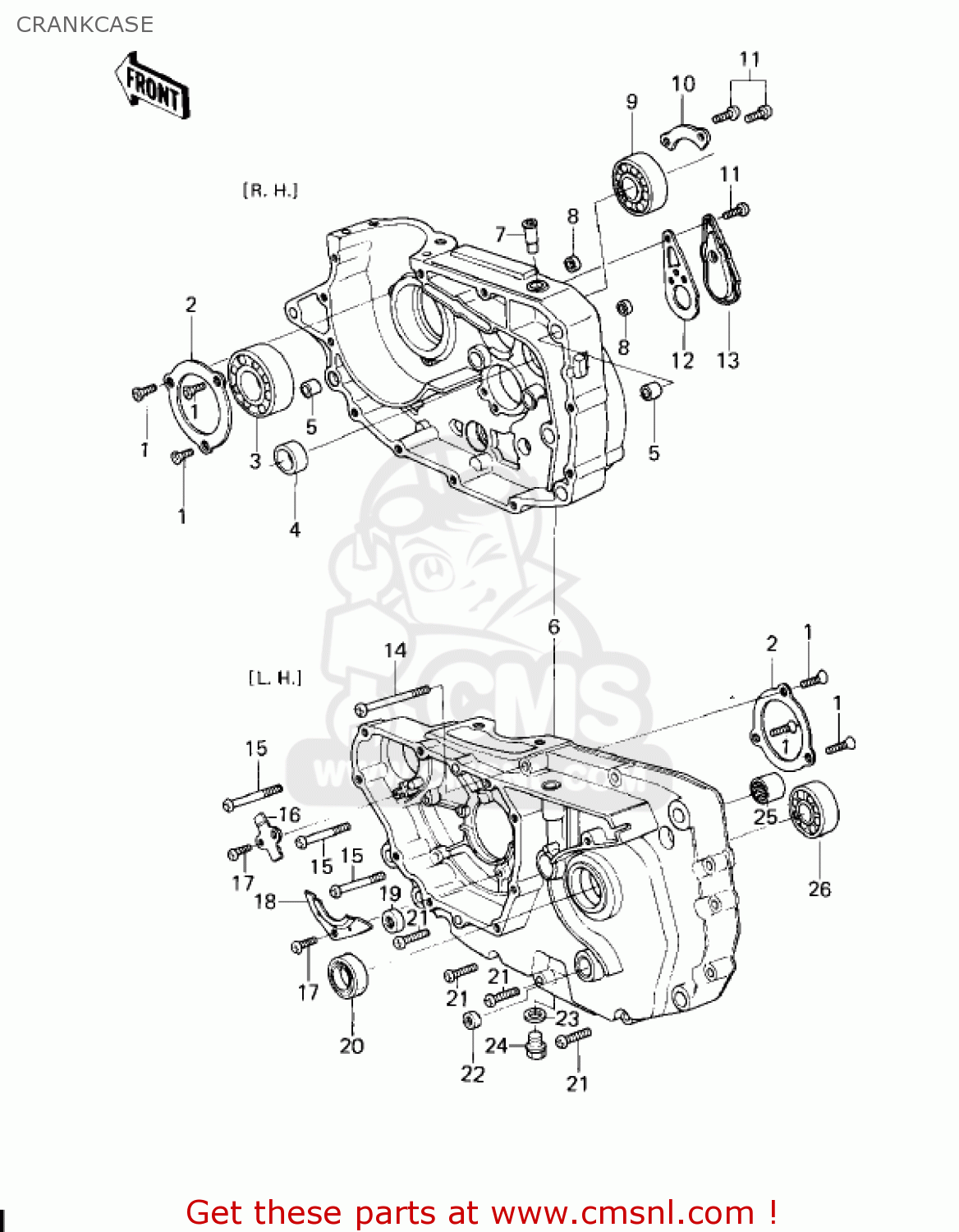

CRANKCASE

ref

part #

description

quantity

1

221B0616
ref: 1

SCREW-CNTSNK HD,6X16

€ 0.50

2

140141004
ref: 2

PLATE,POSITIONING

€ 8.00

3

92045037
ref: 3

BEARING-BALL,#6306

€ 40.00

4

92028132
ref: 4

BUSHING

€ 28.00

5

92042032
ref: 5

PIN,DOWEL,14MM

€ 3.00

6

140015083
ref: 6

SET-CRANKCASE

€ 442.00

7

14067006
ref: 7

BREATHER JOINT

€ 14.00

8

920661282
ref: 8

PLUG

€ 4.00

9

92045038
ref: 9

BEARING-BALL,#6006

€ 23.50

10

14014037
ref: 10

PLATE-POSITION

€ 2.50

11

220B0614
ref: 11

SCREW-PAN HEAD,6X14

€ 2.00

12

16079002
ref: 12

GASKET (MCA)

€ 2.50

13

16078002
ref: 13

CAP

€ 6.00

14

220B0675
ref: 14

SCREW,PAN HEAD,6X75

€ 3.00

15

220B0655
ref: 15

SCREW-PAN HEAD,6X55

€ 2.50

16

131691010
ref: 16

PLATE

€ 3.50

17

220B0614
ref: 17

SCREW-PAN HEAD,6X14

€ 2.00

18

14014035
ref: 18

PLATE-POSITION,CAM CH

€ 3.00

19

92050077
ref: 19

OIL SEAL, PUSH ROD

€ 7.50

20

920491159
ref: 20

SEAL-OIL,TC32457

€ 8.00

21

220B0630
ref: 21

SCREW-PAN HEAD,6X30

€ 2.50

22

92050082
ref: 22

OIL SEAL,CHANGE SHAFT

€ 5.50

23

92065097
ref: 23

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

24

920661174
ref: 24

PLUG,OIL DRAIN,12X15

€ 4.00

25

92046060
ref: 25

BEARING-NEEDLE,HMK151

€ 17.50

26

601B6205
ref: 26

BEARING-BALL,#6205C3

€ 14.00
