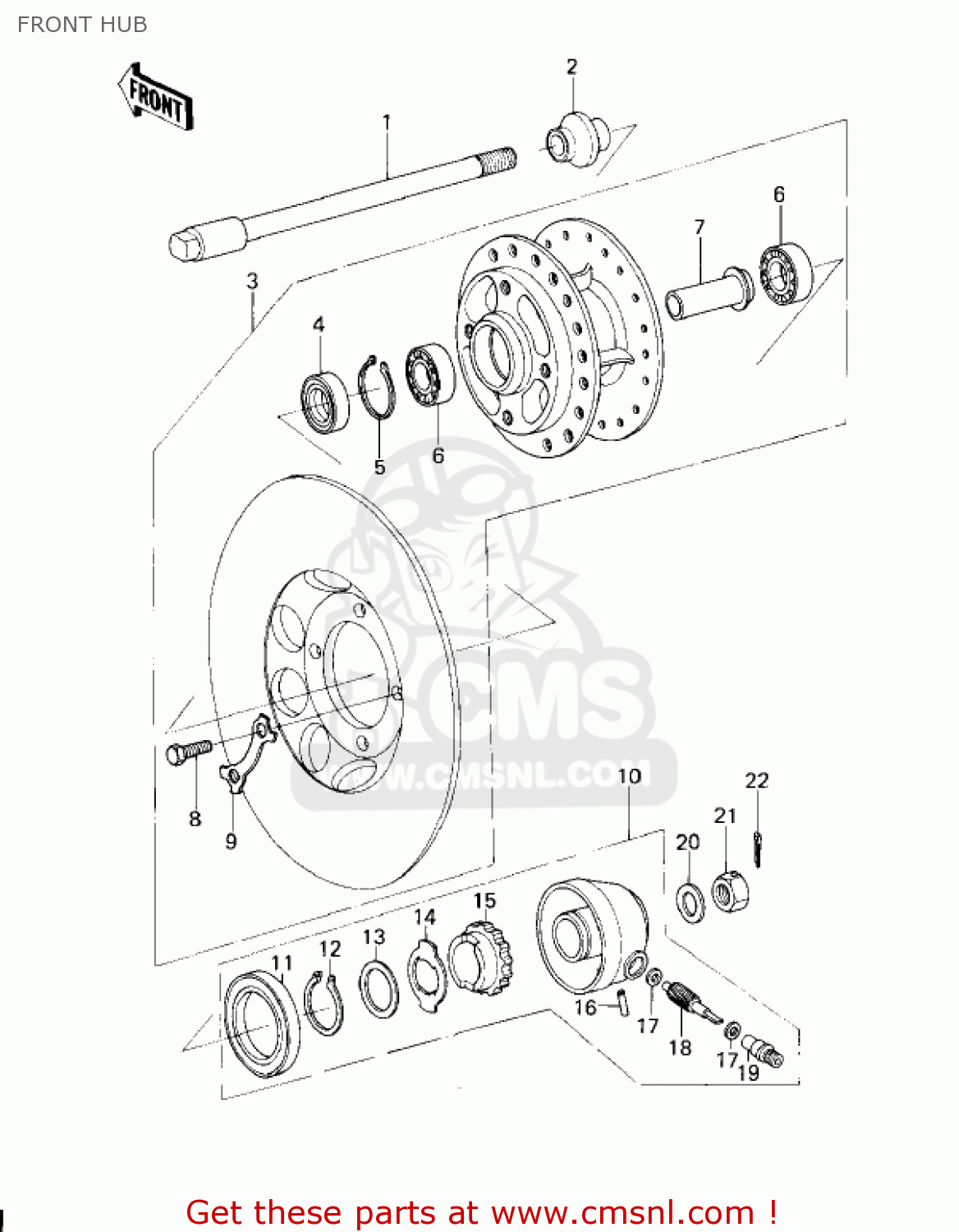

FRONT HUB

ref

part #

description

quantity

1

41068052
ref: 1

AXLE, FRONT

€ 31.50

2

41069037
ref: 2

COLLAR, AXLE

€ 7.50

3

41034051
ref: 3

DRUM ASSY, FRONT

€ 130.00

4

654A223508
ref: 4

OIL SEAL

€ 7.50

5

481J3500
ref: 5

CIRCLIP-TYPE-C,35MM

€ 1.00

6

601B6202
ref: 6

BEARING-BALL,#6202C3

€ 14.50

7

41039035
ref: 7

COLLAR,FRONT HUB BEAR

€ 9.00

8

92001141
ref: 8

BOLT,HEX HEAD,8X25

€ 3.50

9

92088029
ref: 9

WASHER, LOCK

€ 2.50

10

41078013
ref: 10

CASE-ASSY-METER GEAR

€ 94.00

11

654A425509
ref: 11

OIL SEAL, 42X55X9

€ 8.00

12

480J2200
ref: 12

CIRCLIP-TYPE-C,22MM

€ 3.00

13

41065006
ref: 13

WASHER, PLAIN

€ 2.00

14

41064016
ref: 14

RECEIVER-SPEEDOMETER

€ 4.00

15

41059028
ref: 15
21T

GEAR, SPEEDOMETER

€ 22.50

16

41082001
ref: 16

PIN-SPRING

€ 2.50

17

41063001
ref: 17

WASHER-THRST SPD PINI

€ 3.00

18

41060015
ref: 18
8T

PINION,SPEEDOMETER

€ 17.00

19

41062005
ref: 19

BUSHING,SPEEDOMETER C

€ 12.00

20

410B1400
ref: 20

410B1400

21

42045020
ref: 21

NUT,14MM

€ 6.50

22

550D3025
ref: 22

PIN-COTTER,3.0X25

€ 0.50

all assemblies
