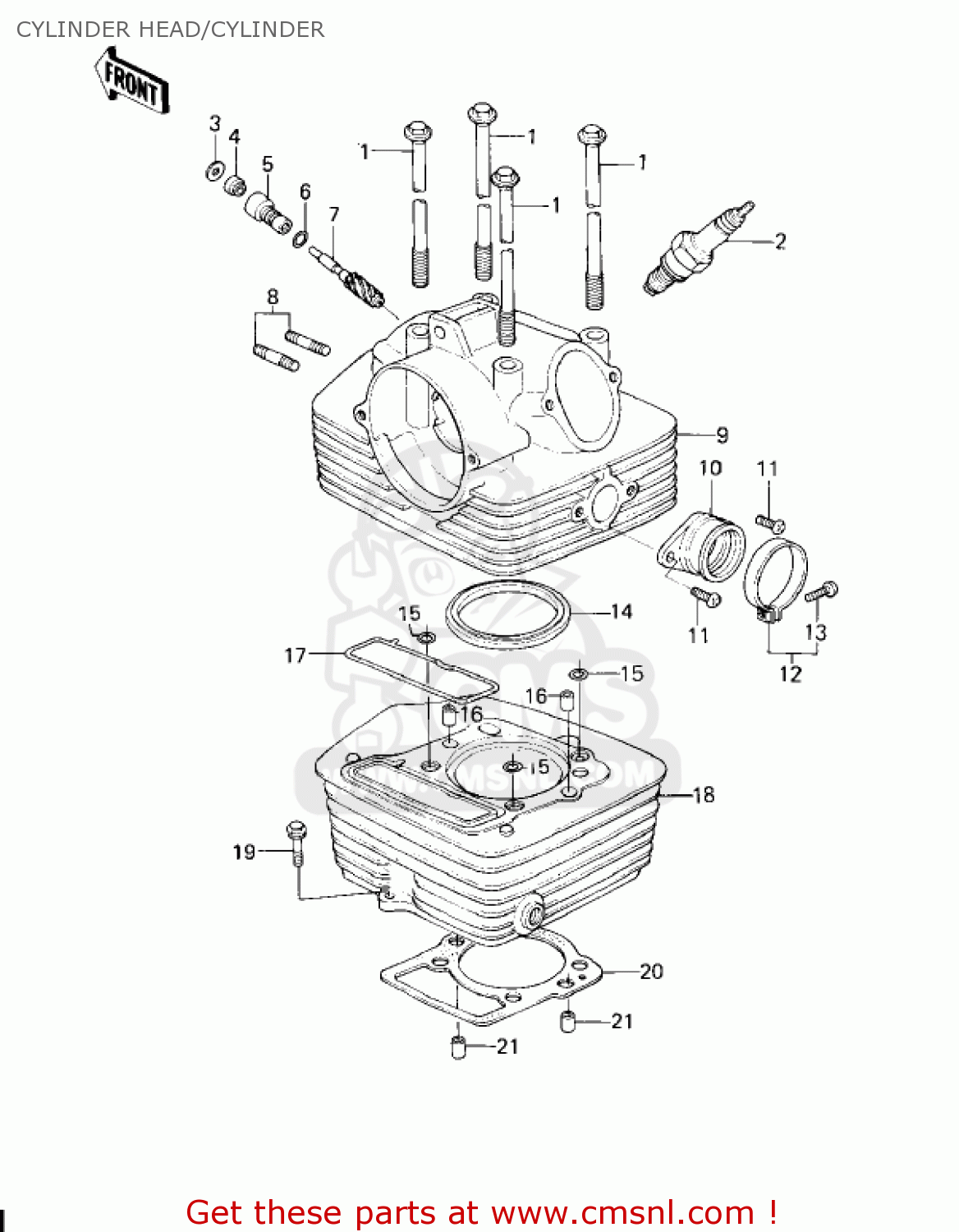

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

1

92003220
ref: 1

BOLT, 8X233

€ 12.00

2

B7ESA
ref: 2

SPARK PLUG, B7ES

€ 5.00

3

92065104
ref: 3

GASKET,TACHO GEAR (NAS)

€ 3.50

4

92050075
ref: 4

OIL SEAL,TACHOMETER

€ 7.50

5

92087011
ref: 5

BUSHING-METER GEAR,TA

€ 12.50

6

920551149
ref: 6

RING-O,10MM

€ 4.00

7

13223012
ref: 7

GEAR, TACHOMETER

€ 30.50

8

92004066
ref: 8

STUD, 6X27

€ 3.50

9

110025014
ref: 9

HEAD ASSY,CYLINDER

€ 454.50

10

16065045
ref: 10

HOLDER, CABURETOR

€ 19.00

11

220B0614
ref: 11

SCREW-PAN HEAD,6X14

€ 2.00

12

92037178
ref: 12

CLAMP

€ 7.00

13

220B0525
ref: 13

SCREW-PAN-CROS,5X25

€ 2.50

14

110041004
ref: 14

GASKET,CYLINDER HEAD (NAS)

€ 32.00

15

920551149
ref: 15

RING-O,10MM

€ 4.00

16

920431037
ref: 16

PIN,DOWEL,10X8.2X14

€ 0.50

17

92055105
ref: 17

RING-O,CHAIN TUNNEL

€ 23.50

18

11005153
ref: 18

CYLINDER

€ 276.00

19

92003202
ref: 19

BOLT

€ 4.00

20

11009043
ref: 20

GASKET, CYLINDER BASE (MCA)

€ 9.00

21

920431037
ref: 21

PIN,DOWEL,10X8.2X14

€ 0.50
