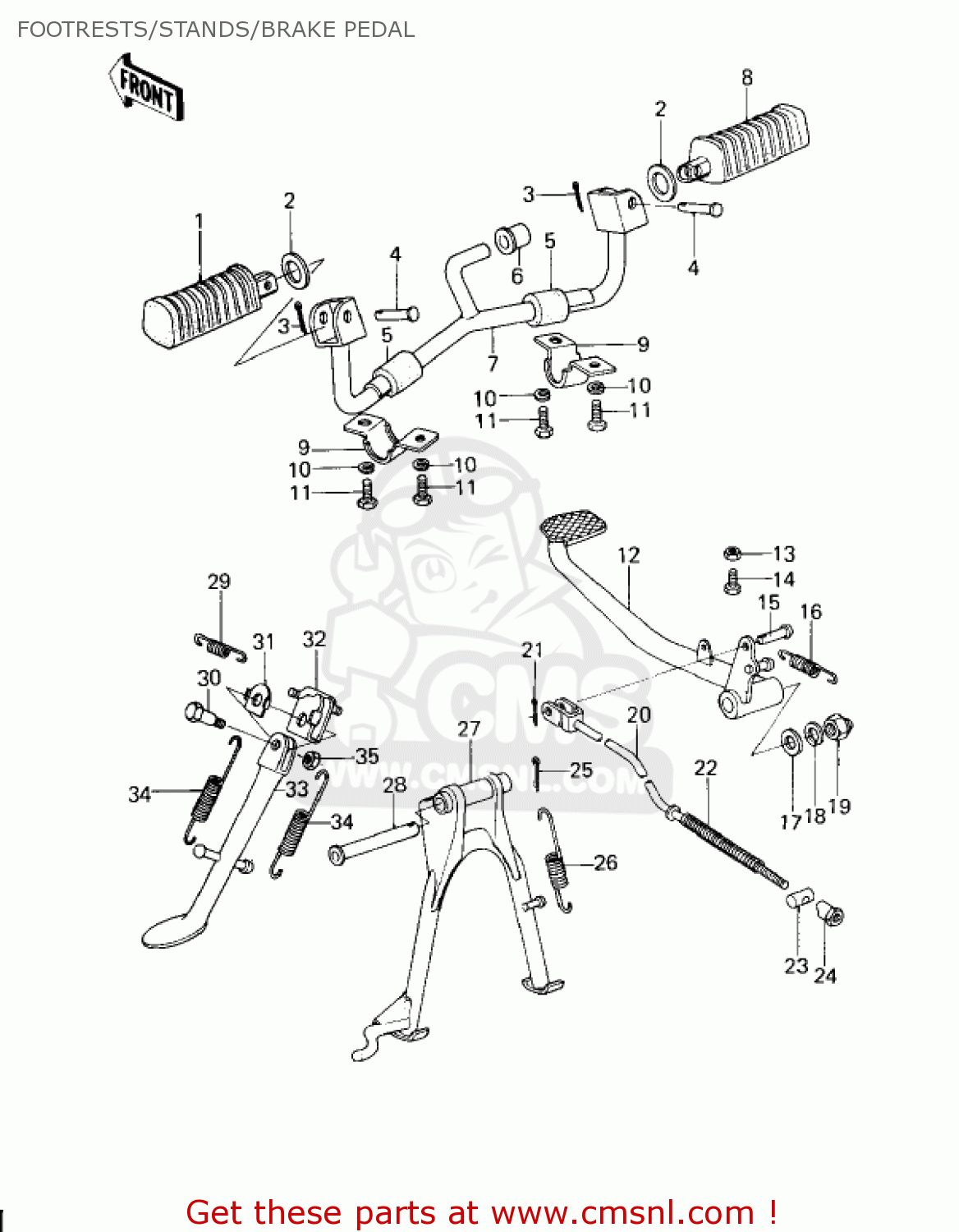

FOOTRESTS/STANDS/BRAKE PEDAL

ref

part #

description

quantity

1

340271103
ref: 1

STEP-ASSY,FR,RH

€ 45.00

2

92022250
ref: 2

WASHER,PLAIN

€ 3.00

3

550D2516
ref: 3

PIN-COTTER,2.5X16

€ 1.50

4

92043080
ref: 4

PIN-FOOTREST BAR FIT

€ 3.50

5

92075306
ref: 5

DAMPER

€ 3.50

6

920751029
ref: 6

DAMPER

€ 3.50

7

34004008
ref: 7

BAR, FOOTREST

€ 34.00

8

340271103
ref: 8

STEP-ASSY,FR,RH

€ 45.00

9

130911003
ref: 9

HOLDER,FOOTREST

€ 10.50

10

461F0800
ref: 10

WASHER-SPRING,8MM

€ 0.50

11

115G0816
ref: 11

BOLT-HEX,HEAD 8X16

€ 0.50

12

43001077
ref: 12

LEVER-BRAKE,PEDAL

€ 92.50

13

311B0600
ref: 13

NUT,6MM

€ 0.50

14

112G0625
ref: 14

BOLT-UPSET,6X25

€ 4.00

15

92043090
ref: 15

PIN,6X13

€ 4.00

16

43005029
ref: 16

SPRING,BRAKE PEDAL

€ 6.00

17

920221561
ref: 17

WASHER,8.5X20X1.6

€ 2.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

92019013
ref: 19

NUT,CAP,LOCK,8MM

€ 5.50

20

43011028
ref: 20

ROD, BRAKE

€ 10.00

21

550D2015
ref: 21

PIN-COTTER,2.0X15

€ 1.00

22

43012001
ref: 22

SPRING,BRAKE ROD

€ 3.00

23

92043039
ref: 23

PIN,BRAKE ROD

€ 4.50

24

92015042
ref: 24

NUT-BRAKE ROD ADJUST

€ 4.00

25

550D3030
ref: 25

PIN-COTTER,3.0X30

€ 1.50

26

34023016
ref: 26

SPRING,MAIN STAND

€ 11.00

27

34011050
ref: 27

STAND

€ 78.50

28

34019011
ref: 28

SHAFT-STAND,CNT

€ 9.00

29

34025011
ref: 29

SPRING, SIDE STAND

€ 3.50

30

92003226
ref: 30

BOLT,SIDE STAND FITNG

€ 5.50

31

92024078
ref: 31

WASHER,LOCK

€ 3.50

32

320851009
ref: 32

STOPPER

€ 12.50

33

34024070
ref: 33

STAND-SIDE

€ 41.00

34

34025010
ref: 34

SPRING, SIDE STAND

€ 4.00

35

92019021
ref: 35

NUT,LOCK,10M/M

€ 2.00

all assemblies
