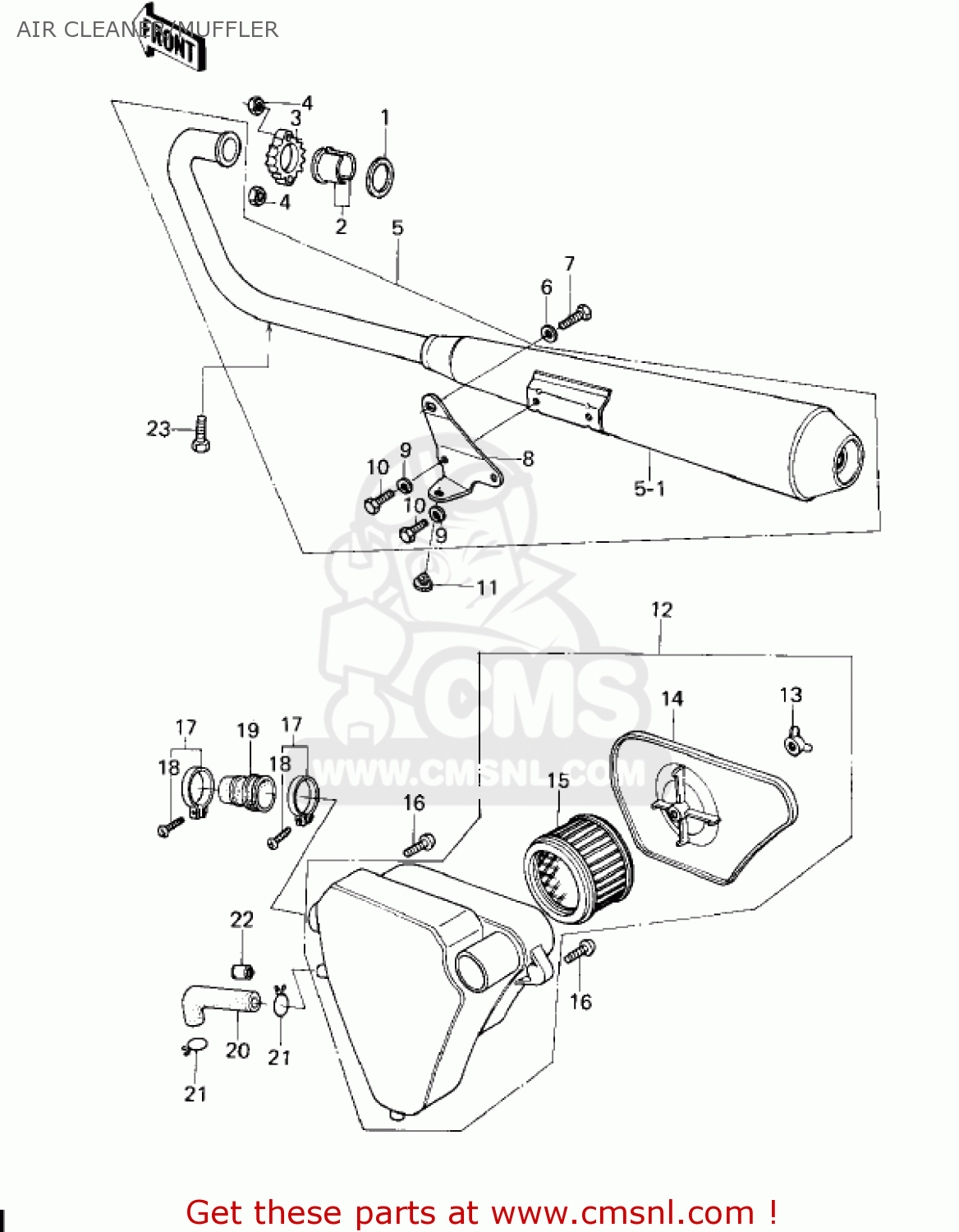

AIR CLEANER/MUFFLER

ref

part #

description

quantity

1

110091866
ref: 1

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

2

92027278
ref: 2

COLLAR,EXHAUST PIPE

€ 3.00

3

180691006
ref: 3

HOLDER-EXHAUST PIPE

€ 16.00

4

92017014
ref: 4

NUT,LOCK,6MM

€ 4.00

5

180011197
ref: 5
KZ200-A1

MUFFLER

€ 417.50

5

180011197
ref: 5
KZ200-A2

MUFFLER

€ 417.50

5-1

180015006
ref: 5-1
KZ200-A1A/A2

MUFFLER ASSEMBLY

€ 277.00

6

410B1000
ref: 6

WASHER-PLAIN-SMALL,10

€ 0.50

7

113G1014
ref: 7

BOLT,HEX HEAD,10X14

€ 2.50

8

18024037
ref: 8

BRACKET, MUFFLER

€ 18.50

9

461F0800
ref: 9

WASHER-SPRING,8MM

€ 0.50

10

115G0820
ref: 10

BOLT,8X20

€ 2.00

11

92075015
ref: 11

DAMPER RUBB-MAIN STND

€ 3.00

12

110101024
ref: 12
KZ200-A1

AIR CLEANER ASSY

€ 95.50

12

110101024
ref: 12
KZ200-A1A/A2

AIR CLEANER ASSY

€ 95.50

13

92016062
ref: 13

NUT,6MM

€ 3.00

14

110121281
ref: 14

CAP,AIR FILTER"MRAK"A

€ 28.00

15

11013059
ref: 15

ELEMENT-AIR FILTER

€ 10.50

16

220B0610
ref: 16

SCREW-PAN HEAD,6X10

€ 2.00

17

92037178
ref: 17

CLAMP

€ 7.00

18

220B0525
ref: 18

SCREW-PAN-CROS,5X25

€ 2.50

19

11015065
ref: 19

DUCT,AIR INLET

€ 8.00

20

92059138
ref: 20

TUBE,BREATHER

€ 6.50

21

92037213
ref: 21

CLAMP, BREATHER TUBE

€ 2.50

22

920621002
ref: 22
NOT USE FOR P/NO. 11

NOZZLE

€ 2.00

23

110R0610
ref: 23
KZ200-A1A~

BOLT,6X10

€ 5.00

all assemblies
