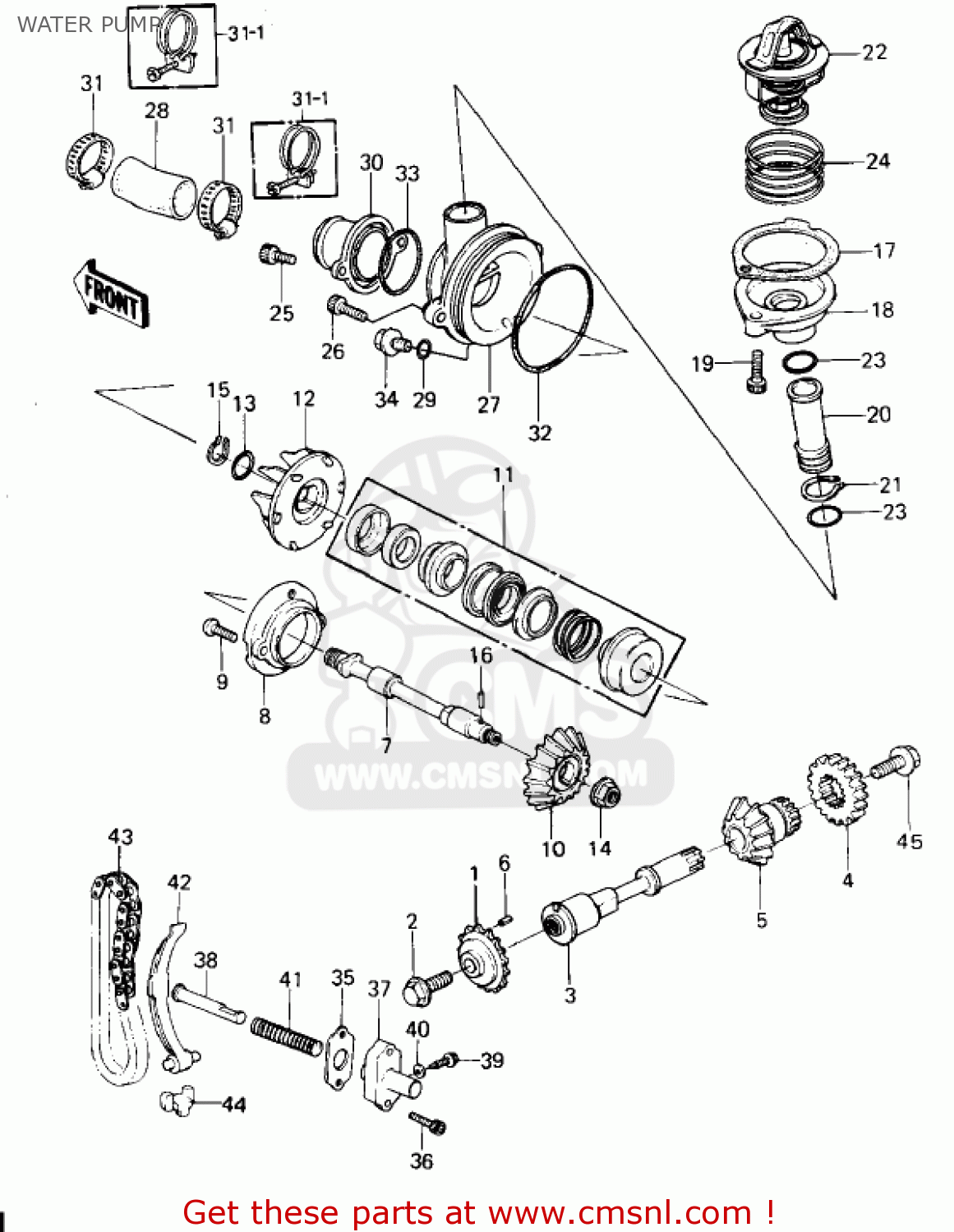

WATER PUMP

ref

part #

description

quantity

1

120461015
ref: 1

SPROCKET,TIMING CHAIN

€ 51.00

2

130G0820
ref: 2

BOLT,FLANGED,8X20

€ 0.50

3

131071009
ref: 3

SHAFT,WATER PUMP DRIV

€ 71.50

4

132161010
ref: 4

GEAR,21T,TIMING

€ 24.00

5

490221005
ref: 5
KZ1300-A1/A2

GEAR,BEVEL,WATER PUMP

€ 29.50

5

490221015
ref: 5
KZ1300-A3

GEAR-BEVEL,WATER PUMP

€ 61.00

6

555A0408
ref: 6

PIN-SPRING,4X8

€ 2.50

7

131071011
ref: 7

SHAFT,WATER PUMP

€ 76.50

8

140201004
ref: 8

RETAINER,MECHANICAL S

€ 16.00

9

220R0516
ref: 9

SCREW-PAN-CROS

€ 2.50

10

490221006
ref: 10

GEAR,BEVEL WATER PUMP

€ 96.00

11

490631001
ref: 11

SEAL,MECHANICAL

€ 59.00

12

592561001
ref: 12

IMPELLER,WATER PUMP

€ 32.50

13

670B1508
ref: 13

O RING,8MM

€ 1.00

14

920151014
ref: 14

NUT,8MM

€ 0.50

15

920331024
ref: 15

RING-SNAP,11MM

€ 2.50

16

92042014
ref: 16

PIN-GEAR CHANGE DRUM

€ 0.50

17

110091087
ref: 17

GASKET,THERMOSTAT CAP (NAS)

€ 4.00

18

110121054
ref: 18

CAP,THERMOSTAT

€ 19.00

19

120P0625
ref: 19

BOLT,6X25

€ 1.50

20

320321184
ref: 20

PIPE,WATER BYPASS

€ 18.00

21

480J2000
ref: 21

CIRCLIP-TYPE-C,20MM

€ 1.00

22

490541001
ref: 22

THERMOSTAT

€ 44.50

23

670B2016
ref: 23

O RING,16MM

€ 1.00

24

920811104
ref: 24

SPRING,THERMOSTAT

€ 9.50

25

120P0616
ref: 25

BOLT,SOCKET,6X16

€ 1.50

26

120P0620
ref: 26

BOLT-HEX HEAD,6X20

€ 0.50

27

140251077
ref: 27

COVER,WATER PUMP

€ 42.00

28

390621020
ref: 28

HOSE-COOLING

€ 10.00

29

670B1508
ref: 29

O RING,8MM

€ 1.00

30

920051011
ref: 30

FITTING,SUCTION

€ 16.50

31

920371177
ref: 31

CLAMP,HOSE

€ 6.00

31-1

920371177
ref: 31-1

CLAMP,HOSE

€ 6.00

32

920551032
ref: 32

RING-O,67MM

€ 7.50

33

920551033
ref: 33

RING-O,OR2037

€ 5.50

34

920661026
ref: 34

PLUG,DRAIN,8X10

€ 6.00

35

110091099
ref: 35

GASKET,TIMING CHAIN T (NAS)

€ 2.50

36

120P0625
ref: 36

BOLT,6X25

€ 1.50

37

120491007
ref: 37

TENSIONER,TIMING CHAI

€ 25.50

38

131161014
ref: 38

ROD-PUSH,TENSIONER

€ 10.00

39

920011155
ref: 39

BOLT,TENSIONER ADJUST

€ 3.50

40

92022077
ref: 40

WASHER,6.1X12X1

€ 0.50

41

920811102
ref: 41

SPRING,TENSIONER

€ 3.50

42

120531027
ref: 42

GUIDE,CHAIN TIMING

€ 38.00

43

920571019
ref: 43

CHAIN,TIMING,72L

€ 6.50

44

920751187
ref: 44

DAMPER,TIMING CHAIN G

€ 3.50

45

130G0820
ref: 45
KZ1300A1/A2

BOLT,FLANGED,8X20

€ 0.50

45

920011371
ref: 45
KZ1300-A3

BOLT,FLANGED,8X17

€ 4.50
