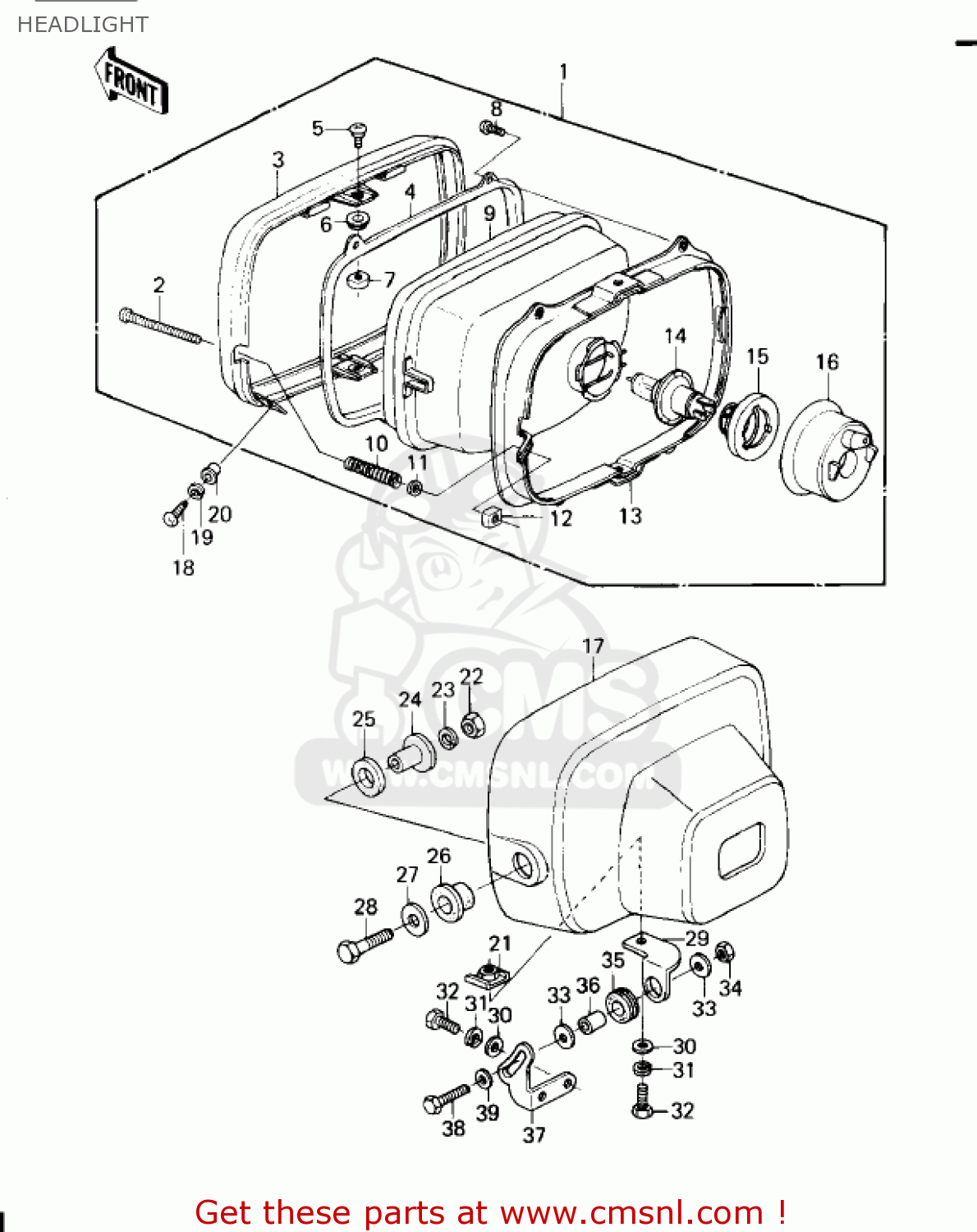

HEADLIGHT

ref

part #

description

quantity

1

230041075
ref: 1

LAMP-HEAD

€ 584.00

2

920091047
ref: 2

SCREW,HEAD LAMP LENS

€ 3.00

3

230061005
ref: 3

RIM-LAMP

€ 56.00

4

140201005
ref: 4

RETAINER,HEAD LAMP

€ 25.00

5

23019023
ref: 5

SCREW-PAN HEAD,5X12

€ 3.50

6

23021012
ref: 6

WASHER

€ 3.00

7

23020023
ref: 7

NUT,5MM

€ 3.00

8

220B0308
ref: 8

SCREW-PAN-CROS

€ 0.50

9

230071013
ref: 9

HEADLAMP UNIT LENS

€ 143.50

10

920811103
ref: 10

SPRING,HEAD LAMP LENS

€ 3.00

11

23021004
ref: 11

WASHER,4.1X8X0.8

€ 2.00

12

23020018
ref: 12

NUT,4MM,FOCUS ADJUST

€ 3.00

13

130911035
ref: 13

HOLDER,HEAD LAMP MOUN

€ 33.50

14

920691002
ref: 14
PHILIPS (H4 12342)

BULB,12V-60155W

€ 15.00

15

130911036
ref: 15

HOLDER,HEAD LAMP SOCK

€ 12.50

16

490161023
ref: 16

COVER-SEAL,HEAD LAMP

€ 11.50

17

23005102421
ref: 17

BODY-COMP-HEAD LAMP,F

€ 87.00

18

92011024
ref: 18

SCREW-PAN HEAD,5MM

€ 2.00

19

461F0500
ref: 19

WASHER-SPRING,5MM

€ 0.50

20

23021010
ref: 20

WASHER

€ 2.50

21

920151050
ref: 21

NUT,HEAD LAMP BODY

€ 6.00

22

317B0800
ref: 22

NUT,8M/M

€ 0.50

23

461F0800
ref: 23

WASHER-SPRING,8MM

€ 0.50

24

920271131
ref: 24

COLLAR,HEAD LAMP FITT

€ 6.00

25

920751110
ref: 25

DAMPER,HEAD LAMP FITT

€ 3.00

26

920751109
ref: 26

DAMPER,HEAD LAMP FITT

€ 4.00

27

411D0800
ref: 27

WASHER,PLAIN,8MM

€ 2.00

28

920011405
ref: 28

BOLT,8X38

€ 10.00

29

110341289
ref: 29

BRACKET,HEAD LAMP BOD

€ 6.00

30

411B0600
ref: 30

WASHER-PLAIN,6MM

€ 0.50

31

461F0600
ref: 31

WASHER-SPRING,6MM

€ 0.50

32

112G0616
ref: 32

BOLT UPSET,6X16

€ 1.00

33

92022125
ref: 33

WASHER,6.5X20X1.6

€ 1.00

34

92017014
ref: 34

NUT,LOCK,6MM

€ 4.00

35

92075209
ref: 35

DAMPER RUBBER

€ 3.00

36

92027241
ref: 36

COLLAR

€ 4.50

37

110341290
ref: 37
KZ1300-A1/A2

BRACKET,HEAD LAMP BOD

€ 3.00

37

110361042
ref: 37
KZ1300-A3

BRACKET-A,HEAD LAMP B

€ 6.00

38

112G0630
ref: 38

BOLT-UPSET

€ 1.00

39

411B0600
ref: 39

WASHER-PLAIN,6MM

€ 0.50

all assemblies
