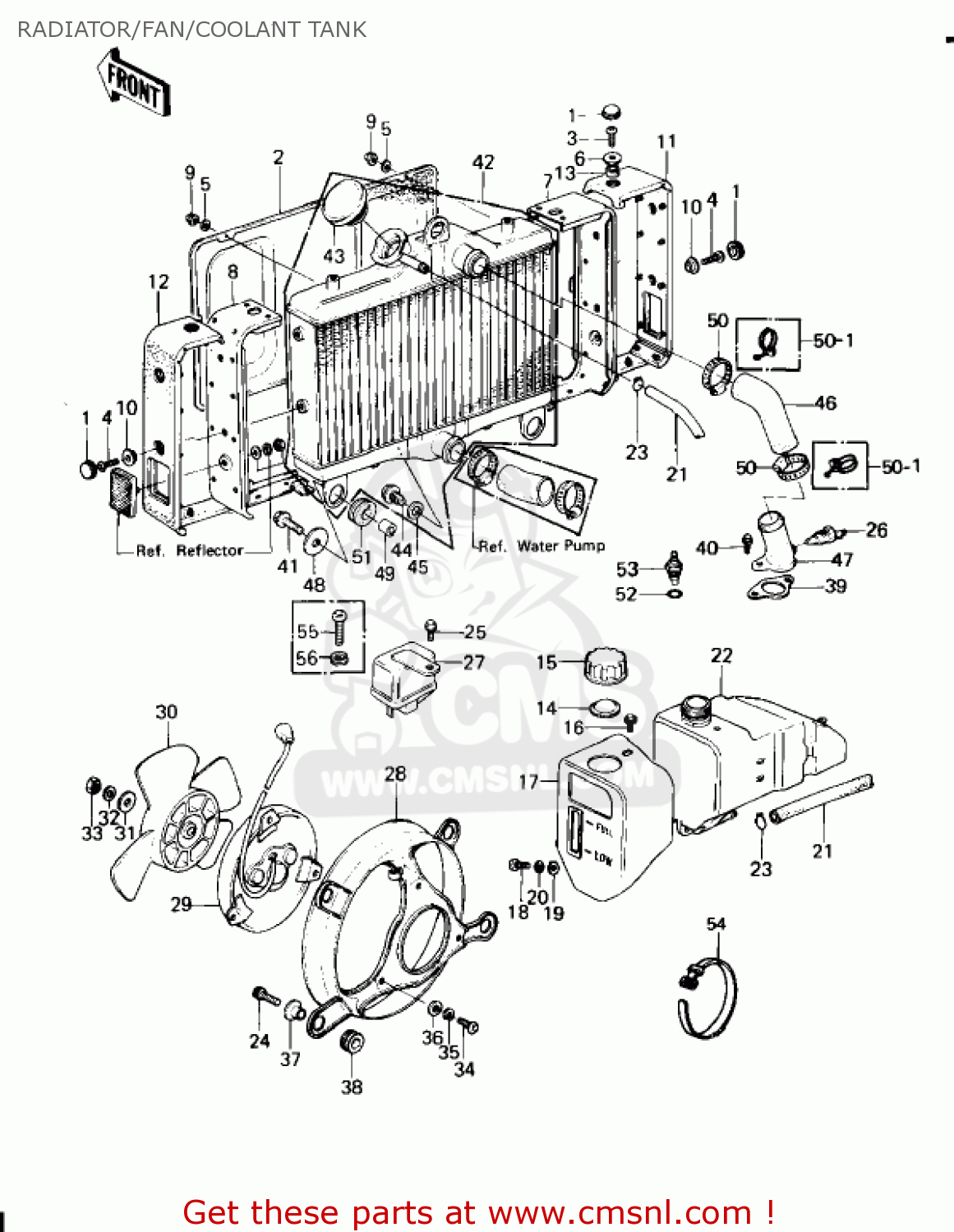

RADIATOR/FAN/COOLANT TANK

ref

part #

description

quantity

1

110121077
ref: 1

CAP,RADIATOR GUARD

€ 2.50

2

140371001
ref: 2

SCREEN,RADIATOR

€ 49.00

3

220B0610
ref: 3

SCREW-PAN HEAD,6X10

€ 2.00

4

220B0616
ref: 4

SCREW-PAN HEAD,6X16

€ 2.50

5

410B0600
ref: 5

WASHER-PLAIN-SMALL,6M

€ 0.50

6

42046008
ref: 6

WASHER,6.5X24X1.2

€ 2.00

7

550201036
ref: 7

GUARD,RADIATOR,RH

€ 75.50

8

550201037
ref: 8

GUARD,RADIATOR,LH

€ 75.50

9

322C0600
ref: 9

NUT-CAP,6MM,BLACK

€ 1.50

10

920271189
ref: 10

COLLAR,L=9

€ 3.50

11

920751210
ref: 11

RADIATOR DAMPER,RH

€ 27.50

12

920751211
ref: 12

RADIATOR DAMPER,LH

€ 33.00

13

920921005
ref: 13

BUSHING-RUBBER,14X22X

€ 2.50

14

110091145
ref: 14

GASKET,RESERVOIR TANK (NAS)

€ 1.00

15

110121084
ref: 15

CAP

€ 1.50

16

130B0610
ref: 16

BOLT,FLANGED,6X10

€ 0.50

17

140251152
ref: 17

COVER,RESERVER TANK

€ 16.00

18

220B0616
ref: 18

SCREW-PAN HEAD,6X16

€ 2.50

19

411B0600
ref: 19

WASHER-PLAIN,6MM

€ 0.50

20

461F0600
ref: 20

WASHER-SPRING,6MM

€ 0.50

21

390621003
ref: 21

HOSE,COOLNG,7X12X1500

€ 16.50

22

430781007
ref: 22

RESERVOIR,TANK

€ 67.50

23

920371104
ref: 23

CLAMP,HOSE

€ 1.00

24

120P0620
ref: 24

BOLT-HEX HEAD,6X20

€ 0.50

25

131B0612
ref: 25
KZ1300-A1/A2

BOLT,FLANGED,6X12

€ 0.50

26

270101026
ref: 26
E/NO.000101-009426

SWITCH,FAN

€ 66.00

26

270101036
ref: 26
E/NO.009427-

SWITCH,FAN

€ 75.00

27

270341002
ref: 27

RELAY,FAN

€ 54.00

28

140731014
ref: 28

SHROUD,FAN

€ 112.00

29

211741001
ref: 29

MOTOR-ELECTRIC,FAN

€ 506.00

30

590411001
ref: 30

FAN,COOLING

€ 80.00

31

920221089
ref: 31

WASHER,FAN

€ 2.50

32

463H0500
ref: 32

WASHER-TOOTHED,5MM

€ 1.50

33

311B0500
ref: 33

NUT-HEX

€ 0.50

34

220B0510
ref: 34

SCREW-PAN-CROS,5X10

€ 0.50

35

461F0500
ref: 35

WASHER-SPRING,5MM

€ 0.50

36

411B0500
ref: 36

WASHER-PLAIN,5MM

€ 0.50

37

920271188
ref: 37

COLLAR,FAN

€ 3.50

38

920751167
ref: 38

DAMPER

€ 3.50

39

110091100
ref: 39

GASKET,HOSE FITTING (MCA)

€ 2.50

40

130B0625
ref: 40

BOLT,FLANGED,6X25

€ 0.50

41

130B0825
ref: 41

BOLT,FLANGED,8X25

€ 1.00

42

390611053
ref: 42

RADIATOR-ASSY

€ 745.50

43

490851051
ref: 43

CAP-ASSY-PRESSURE,RAD

€ 31.00

44

920021682
ref: 44

BOLT,RADIATOR DRAIN

€ 13.50

45

110091152
ref: 45

GASKET,DRAIN BOLT (NAS)

€ 4.50

46

390621002
ref: 46

HOSE,COOLING,RADIATOR

€ 19.00

47

920051012
ref: 47

FITTING,UPPER HOSE

€ 22.50

48

92022298
ref: 48

WASHER,8.5X35X2.3

€ 9.50

49

920271141
ref: 49

COLLAR,12.7X15.9X12.5

€ 2.50

50

920371177
ref: 50

CLAMP,HOSE

€ 6.00

50-1

920371177
ref: 50-1

CLAMP,HOSE

€ 6.00

51

920751127
ref: 51

DAMPER,RADIATOR

€ 3.50

52

92055073
ref: 52

RING-O,13.5MM

€ 6.50

53

920661028
ref: 53

SENDER,WATER TEMPERAT

€ 38.00

54

92072056
ref: 54

BAND,RUBBER

€ 3.00

55

220B0616
ref: 55
KZ1300-A3

SCREW-PAN HEAD,6X16

€ 2.50

56

461F0600
ref: 56
KZ1300-A3

WASHER-SPRING,6MM

€ 0.50
