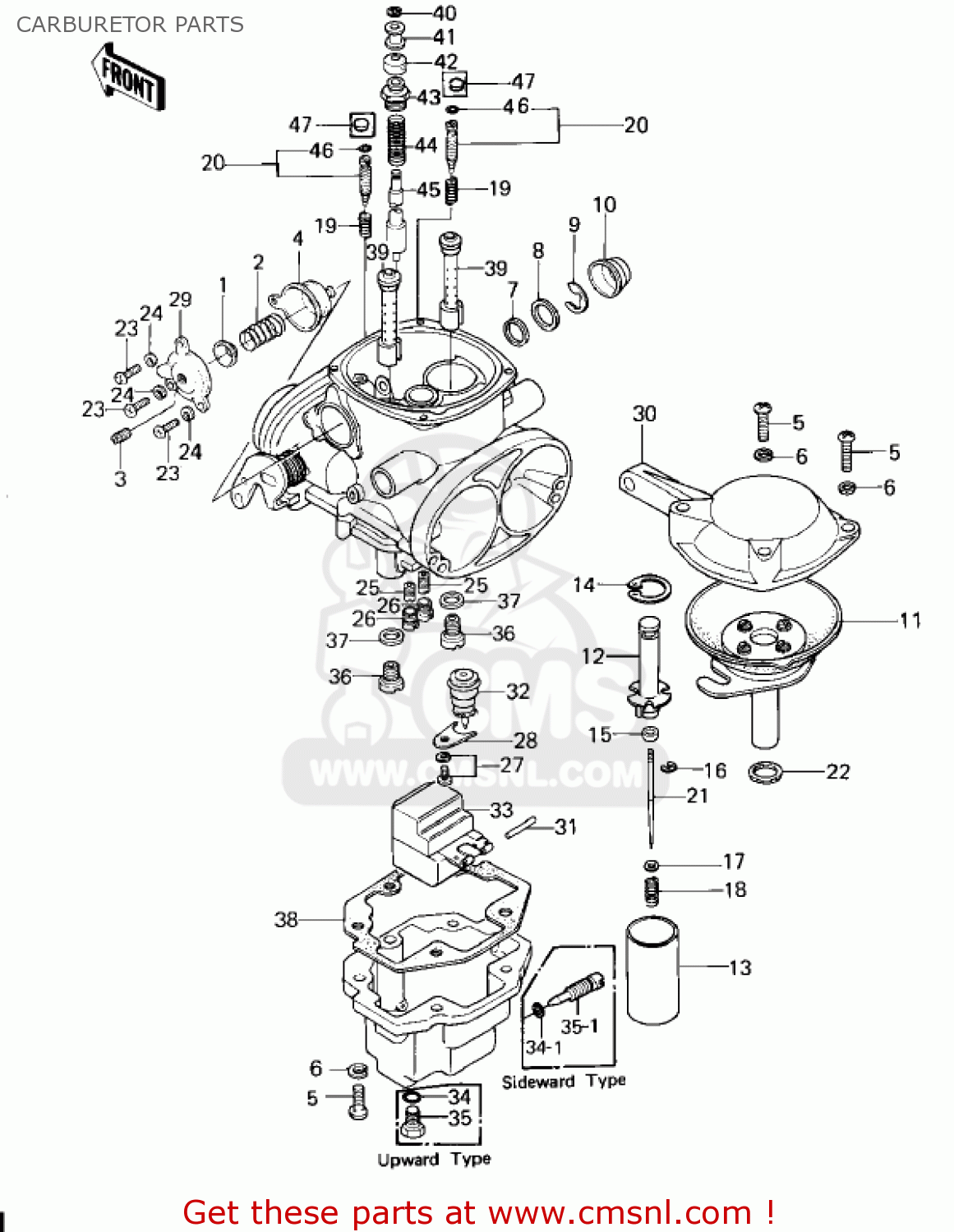

CARBURETOR PARTS

ref

part #

description

quantity

1

430271004
ref: 1

PLATE-DIAPHRAGM

€ 6.50

2

920811156
ref: 2

SPRING,RICHR DIAPHRGM

€ 3.00

3

450071001
ref: 3

SCREW,SLOTTED

€ 3.00

4

430281017
ref: 4
KZ1300-A1

DIAPHRAGM,RICHER

€ 62.50

4

430281017
ref: 4
KZ1300-A2

DIAPHRAGM,RICHER

€ 62.50

5

220B0516A
ref: 5

SCREW-PAN HEAD,5X16

€ 2.50

6

461F0500
ref: 6

WASHER-SPRING,5MM

€ 0.50

7

920931027
ref: 7

OIL SEAL

€ 3.50

8

920221150
ref: 8

WASHER,PLAIN

€ 3.50

9

920371140
ref: 9

CIRCRIP

€ 2.00

10

390311002
ref: 10

CAP,STEEL

€ 4.00

11

430281014
ref: 11

DIAPHRAGM ASSY,VACUUM

€ 178.50

12

130911056
ref: 12

HOLDER,PISTON VALVE

€ 5.50

13

160251029
ref: 13

VALVE,PISTON

€ 46.50

14

920331009
ref: 14

RING-SNAP

€ 4.50

15

920271115
ref: 15

RING,JET NEEDLE

€ 3.50

16

16008014
ref: 16

CLAMP,E-TYPE

€ 5.50

17

920221123
ref: 17

WASHER,JET NEEDLE

€ 5.50

18

920811126
ref: 18

SPRING,JET NEEDLE

€ 4.00

19

16022016
ref: 19

SPRING, PILOT SCREW

€ 6.00

20

160141016
ref: 20

SCREW-PILOT AIR

€ 16.50

21

160091035
ref: 21
KZ1300-A1

JET,NEEDLE,5P2

€ 16.00

21

160091050
ref: 21
KZ1300-A2

JET,NEEDLE,5P4

€ 20.00

21

160091038
ref: 21

NEEDLE-JET,5P3

€ 23.00

22

920221155
ref: 22

WASHER,PLAIN,DURACON

€ 3.50

23

220B0410
ref: 23

SCREW-PAN-CROS

€ 2.00

24

461F0400
ref: 24

WASHER-SPRING,4MM

€ 0.50

25

920641024
ref: 25

JET-PILOT,#42.5

€ 12.50

26

920661044
ref: 26

SCREW,HOLE PLUG

€ 6.00

27

16033014
ref: 27

SCREW-CLAMP

€ 3.00

28

131691190
ref: 28

PLATE,LOCK

€ 3.50

29

140251158
ref: 29

COVER,COASTING RICHER

€ 15.50

30

140251159
ref: 30

TOP,MIXING CHAMBR,L.H

€ 75.00

30

140251160
ref: 30

TOP,MIXING CHAMBER,C.

€ 72.50

30

140251161
ref: 30

TOP,MIXING CHAMBR,R.H

€ 77.00

31

16032003
ref: 31

FLOAT PIN

€ 4.00

32

160301005
ref: 32

VALVE-FLOAT

€ 66.00

33

160311006
ref: 33

FLOAT

€ 58.00

34

16038016
ref: 34

GASKET,O-RING

€ 2.50

34-1

92055044
ref: 34-1

'O' RING

€ 7.00

35

920661045
ref: 35

BOLT,HEX HEAD,DRAIN

€ 8.50

35-1

920661064
ref: 35-1

SCREW,DRAIN

€ 8.50

36

920631038
ref: 36

JET-MAIN,#A110

€ 10.50

36

920631042
ref: 36
RACING USE ONLY

JET-MAIN,#A105R

€ 10.50

36

92063073
ref: 36
RACING USE ONLY

JET-MAIN,#107.5R

€ 9.50

36

92063076
ref: 36
RACING USE ONLY

MAIN JET,#115R

€ 5.50

37

16034001
ref: 37

WASHER-MAIN JET

€ 2.50

38

110091148
ref: 38

GASKET,FLOAT CHAMBER (MCA)

€ 24.50

39

160171038
ref: 39

NEEDLE JET,Y-8

€ 38.00

40

16076003
ref: 40

CLAMP

€ 4.50

41

16073014
ref: 41

COLLAR,STARTER PLUNGE

€ 5.50

42

16036017
ref: 42

BOOT,STARTER PLUNGER

€ 8.00

43

160121005
ref: 43

CAP-STARTER PLUNGER

€ 12.00

44

920811163
ref: 44

SPRING,STARTER PLNGER

€ 2.50

45

160161005
ref: 45

PLUNGER,STARTER

€ 30.50

46

16038022
ref: 46

GASKET,O-RING

€ 4.50

47

920661051
ref: 47
KZ1300-A2

PLUG,PILOT AIR SCREW,

€ 3.00

all assemblies
