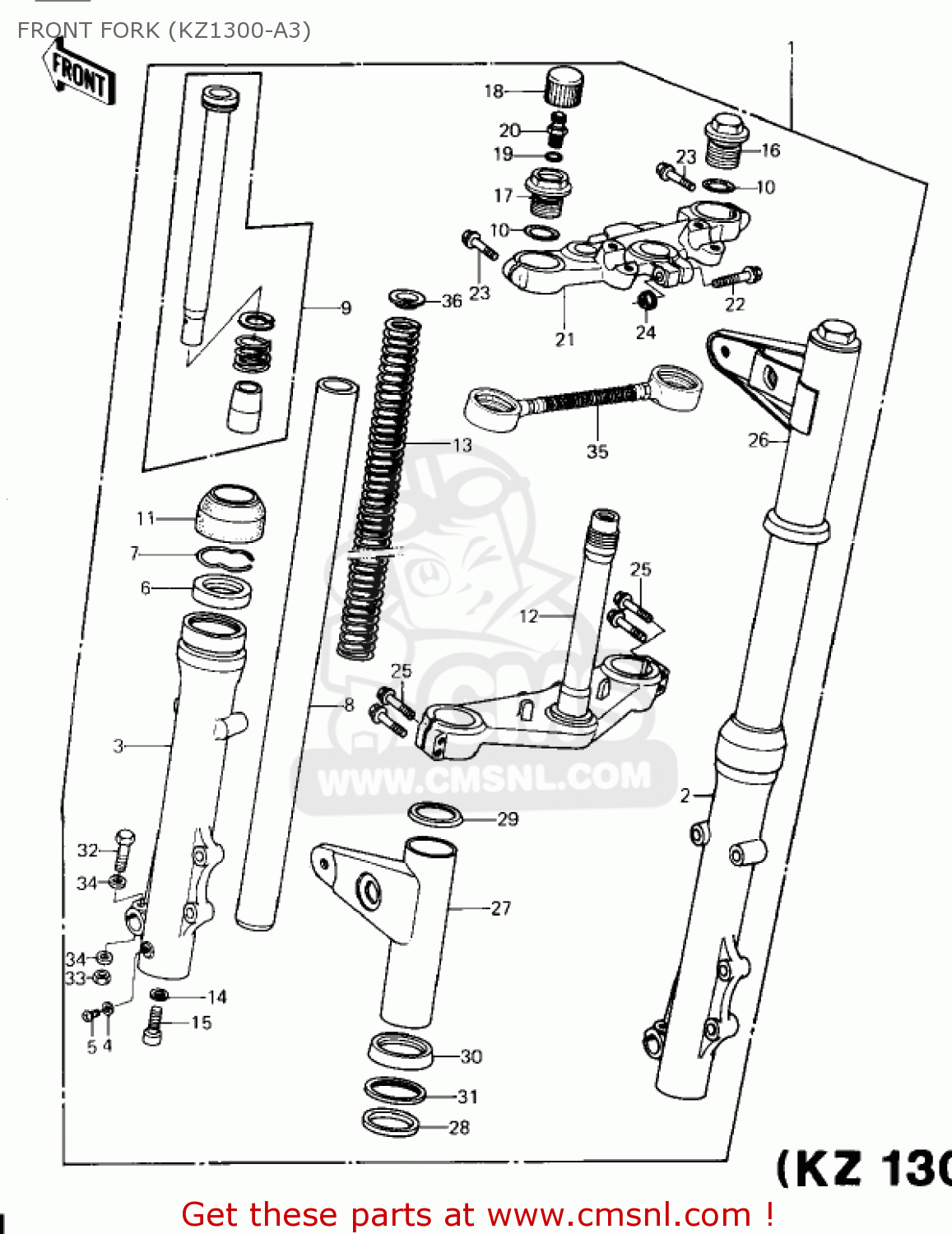

FRONT FORK (KZ1300-A3)

ref

part #

description

quantity

1

440011267
ref: 1

FRONT FORK ASSY

€ 1,493.50

2

440061043
ref: 2

TUBE,R.H,FORK OUTER

€ 364.00

3

440051043
ref: 3

PIPE-LEFT FORK OUTER

€ 406.00

4

44045002
ref: 4

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

5

220B0408
ref: 5

SCREW-PAN-CROS

€ 0.50

6

920491043
ref: 6

OIL SEAL

€ 13.00

7

920331036
ref: 7

CIRCLIP

€ 4.00

8

440131057
ref: 8

FORK TUBE INNER

€ 201.50

9

440221029
ref: 9

CYLINDER,FORK

€ 77.50

10

920551050
ref: 10

RING-O,FORK TOP CAP

€ 4.00

11

920931023
ref: 11

SEAL,FORK

€ 10.50

12

440371016
ref: 12

STEM,STEERING

€ 390.50

13

440261028
ref: 13

SPRING,FORK

€ 54.50

14

110091127
ref: 14

GASKET,FORK CYLID BOL (NAS)

€ 3.00

15

920011309
ref: 15

BOLT,FORK CYLINDER

€ 4.50

16

440291023
ref: 16

CAP,FORK TOP.RH

€ 32.50

17

440291024
ref: 17

CAP,FORK TOP,LH

€ 50.00

18

110121241
ref: 18

CAP,AIR VALVE

€ 11.00

19

920551094
ref: 19

0 RING,AIR VALVE

€ 1.00

20

161261052
ref: 20

VALVE,AIR

€ 22.00

21

440391013
ref: 21

HOLDER-FORK UPPER

€ 243.00

22

920011398
ref: 22

BOLT,FLANGED 8X55

€ 2.50

23

920011189
ref: 23

BOLT,10X45

€ 6.00

24

440071002
ref: 24

NUT,8M/M

€ 2.00

25

920011188
ref: 25

BOLT,8X40

€ 5.50

26

440331064
ref: 26

COVER-FORK,RH

€ 82.00

27

440331063
ref: 27

COVER-FORK.LH

€ 75.50

28

920751155
ref: 28

DAMPER,FORK COVER

€ 3.00

29

131691164
ref: 29

PLATE,FORK COVER,UPP

€ 8.00

30

131691163
ref: 30

PLATE,FORK COVER,LWR

€ 6.00

31

131691154
ref: 31

GUIDE,FORK COVER DAMP

€ 6.00

32

114G0855
ref: 32

BOLT,HEX HEAD,8X55

€ 4.50

33

920151124
ref: 33

NUT,LOCK,8MM

€ 3.50

34

410B0800
ref: 34

WASHER-PLAIN-SMALL,8M

€ 0.50

35

510441005
ref: 35

HOSE ASSY FRONT FORK

€ 122.00

36

440281003
ref: 36

GUIDE-FORK SPRING

€ 7.50
