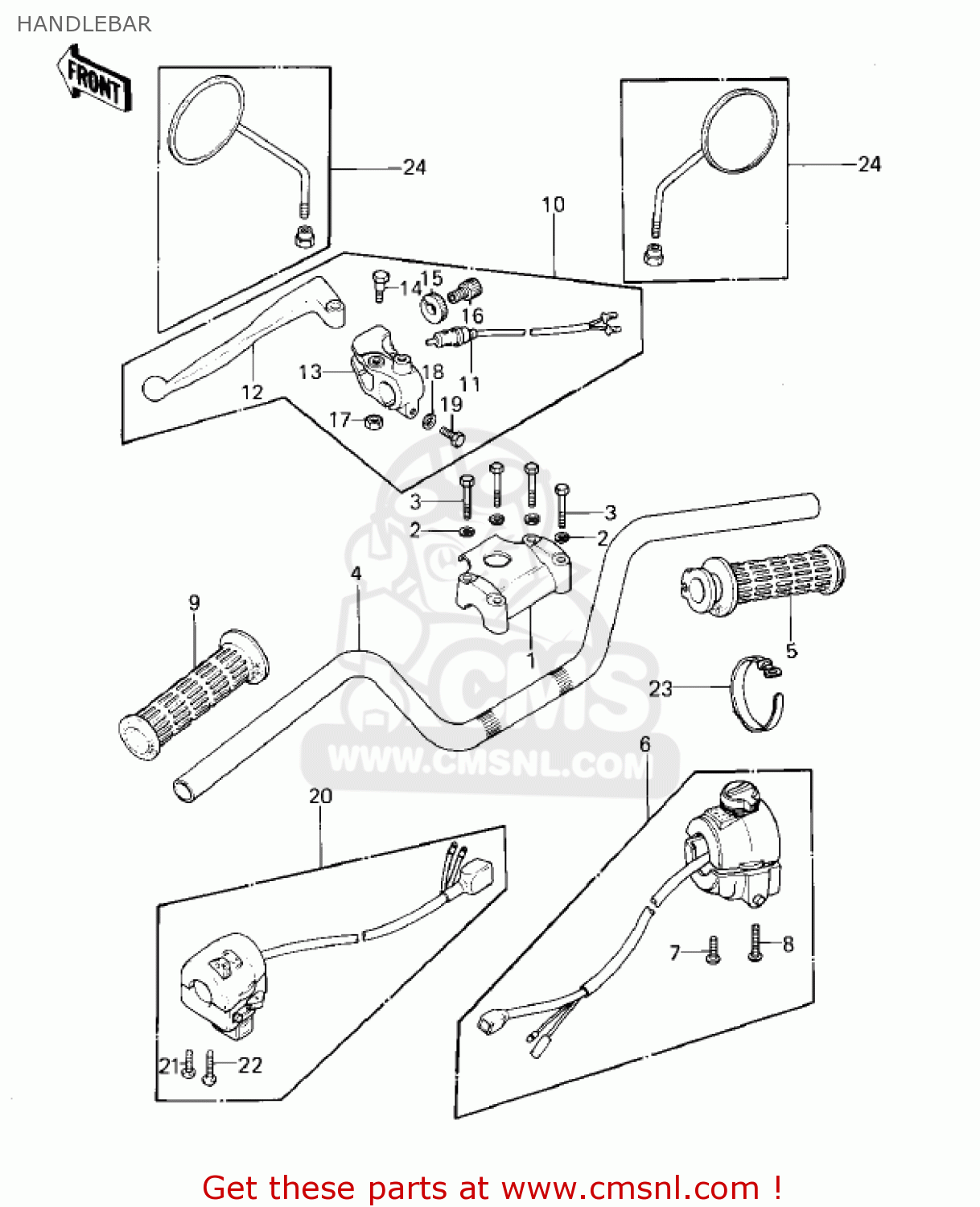

HANDLEBAR

ref

part #

description

quantity

1

460121004
ref: 1

HOLDER,HANDLEBAR

€ 35.50

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

920011405
ref: 3

BOLT,8X38

€ 10.00

4

460031031
ref: 4

HANDLEBAR

€ 72.00

5

46019038
ref: 5

GRIP-ASSY,THROTTLE

€ 80.50

6

460911047
ref: 6

HOUSING ASSY, CONT,RH

€ 118.50

7

220B0530
ref: 7

SCREW-PAN-CROS

€ 2.00

8

220B0540
ref: 8

SCREW-PAN-CROS

€ 2.00

9

46075028
ref: 9

GRIP,LH

€ 32.00

10

46076054
ref: 10

LEVER-ASSY-GRIP,CLUTC

€ 101.00

11

27043002
ref: 11

SWITCH,CLUTCH

€ 21.00

12

46092023
ref: 12

LEVER-GRIP,CLUTCH

€ 17.00

13

46094019
ref: 13

HOLDER,CLUTCH LEVER

€ 55.00

14

92007047
ref: 14

BOLT,HEX HEAD

€ 6.50

15

46056007
ref: 15

NUT,CABLE ADJUST LOCK

€ 9.00

16

46055003
ref: 16

SCREW-CABLE ADJUST

€ 11.50

17

92017014
ref: 17

NUT,LOCK,6MM

€ 4.00

18

410B0600
ref: 18

WASHER-PLAIN-SMALL,6M

€ 0.50

19

112G0625
ref: 19

BOLT-UPSET,6X25

€ 4.00

20

460911049
ref: 20

HOUSING ASSEMBLY,LH

€ 84.00

21

220B0530
ref: 21

SCREW-PAN-CROS

€ 2.00

22

220B0535
ref: 22

SCREW-PAN-CROS

€ 2.00

23

92072030
ref: 23

BAND,SHORT

€ 3.00

24

560011030
ref: 24

MIRROR-ASSY

€ 99.00

all assemblies
