CARBURETOR PARTS (CANADA)
KZ1000E2 SHAFT 1980 CANADA

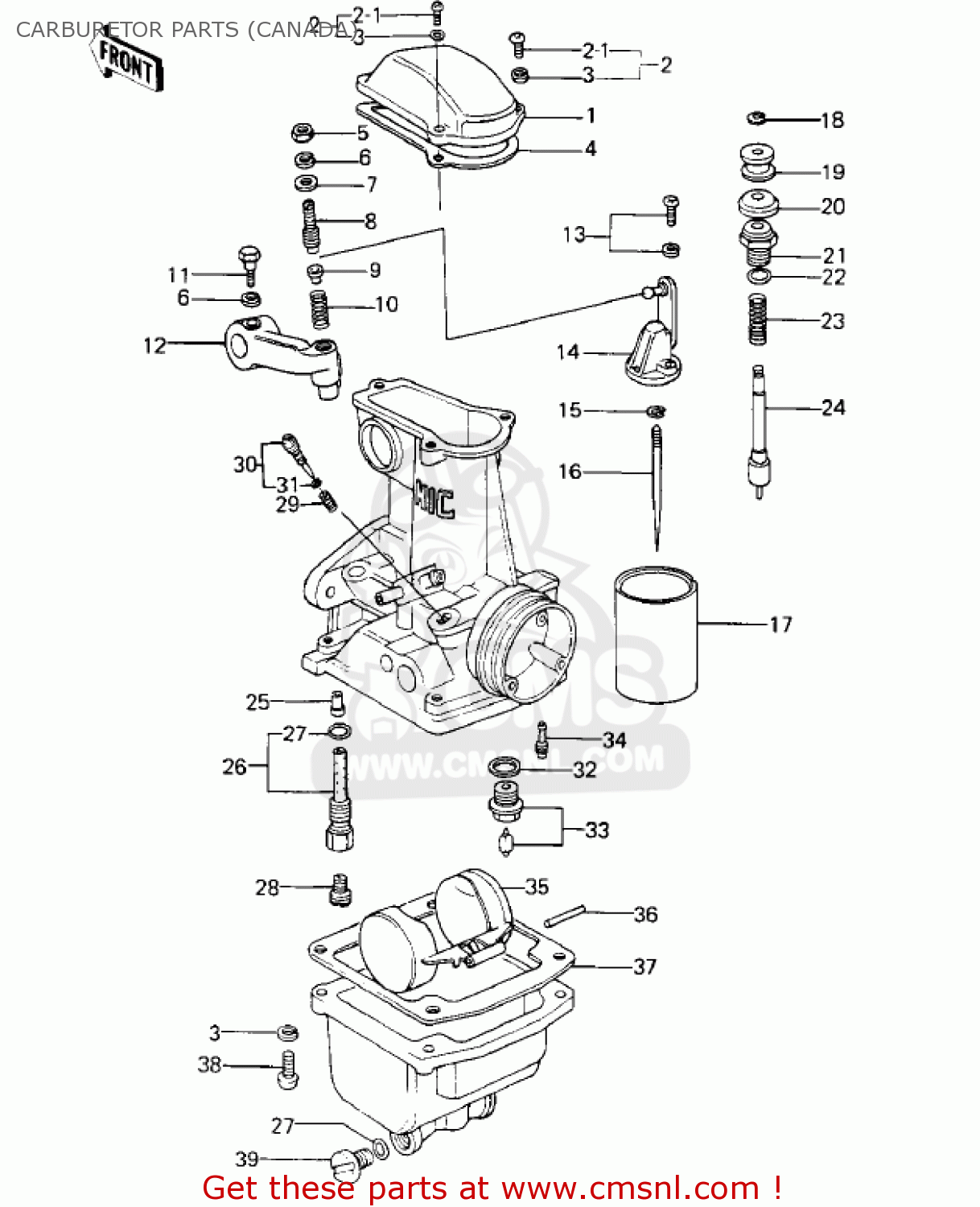

Carburetor parts (canada) diagram KZ1000E2 SHAFT 1980 CANADA
CARBURETOR PARTS (CANADA) KZ1000E2 SHAFT 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16005027
ref: 1
TOP,MIXING CHAMBER
€ 15.50
2
223B0414
ref: 2
SCREW PAN-WS-CROS
€ 2.50
2-1
220B0414
ref: 2-1
SCREW-PAN-CROS
€ 2.00
3
461F0400
ref: 3
WASHER-SPRING,4MM
€ 0.50
4
16019031
ref: 4
GASKET,CHAMBER,TOP (NAS)
€ 24.50
5
16003013
ref: 5
NUT,5M/M
€ 6.00
5
312B0500
ref: 5
NUT-HEX,5MM
€ 0.50
6
461F0500
ref: 6
WASHER-SPRING,5MM
€ 0.50
7
16039016
ref: 7
WASHER,PLAIN
€ 3.50
8
16046012
ref: 8
SCREW, SLOTTED
€ 13.50
9
16057002
ref: 9
SEAT-SPRING
€ 6.00
10
16040026
ref: 10
SPRING
€ 3.50
11
16067006
ref: 11
BOLT-HEX HEAD,5X14
€ 10.50
12
390751001
ref: 12
LEVER,THROTTLE
€ 25.00
13
16033031
ref: 13
SCREW, PAN HEAD, 3X14
€ 3.50
14
16007028
ref: 14
BRACKET,THROTTLE VALV
€ 41.00
15
16008010
ref: 15
CLAMP,E-TYPE
€ 5.00
16
160091013
ref: 16
NEEDLE-JET,5CN15
€ 28.00
17
160251033
ref: 17
VALVE,THROTTLE,CA1.75
€ 63.00
18
16076003
ref: 18
CLAMP
€ 4.50
19
16073014
ref: 19
COLLAR,STARTER PLUNGE
€ 5.50
20
16039015
ref: 20
CAP,STARTER PLUNGER
€ 4.50
21
16012015
ref: 21
CAP-STARTER PLUNGER
€ 8.50
22
670B1509
ref: 22
O RING,9MM
€ 1.00
23
16013008
ref: 23
SPRING-STARTER PLUNG
€ 4.50
24
16016021
ref: 24
PLUNGER,STARTER
€ 26.00
25
160171011
ref: 25
NEEDLE JET,0-1
€ 18.50
26
491221008
ref: 26
PIPE,BLEED
€ 17.00
27
16038016
ref: 27
GASKET,O-RING
€ 2.50
28
920631038
ref: 28
S.T.D.
JET-MAIN,#A110
€ 10.50
28
92063073
ref: 28
RACING USE ONLY
JET-MAIN,#107.5R
€ 9.50
28
920631042
ref: 28
RACING USE ONLY
JET-MAIN,#A105R
€ 10.50
28
92063075
ref: 28
RACING USE ONLY
MAIN JET,#112.5R
€ 10.00
28
92063076
ref: 28
RACING USE ONLY
MAIN JET,#115R
€ 5.50
29
16022007
ref: 29
SPRING-THR STOP SCREW
€ 5.50
30
160141004
ref: 30
SCREW-PILOT AIR
€ 22.00
31
16038022
ref: 31
GASKET,O-RING
€ 4.50
32
16029004
ref: 32
WASHER-FLOAT VLV SEAT
€ 2.50
33
16030027
ref: 33
VALVE-FLOAT
€ 85.00
34
920641003
ref: 34
PILOT JET,#15
€ 15.00
35
16031031
ref: 35
FLOAT
€ 114.50
36
16032003
ref: 36
FLOAT PIN
€ 4.00
37
110091563
ref: 37
GASKET,FLOAT CHAMBER (NAS)
€ 14.00
38
220B0416
ref: 38
SCREW-PAN-CROS
€ 2.00
39
16049007
ref: 39
SCREW, GUIDE
€ 9.50
