FRONT BEVEL GEARS
KZ1000E2 SHAFT 1980 CANADA

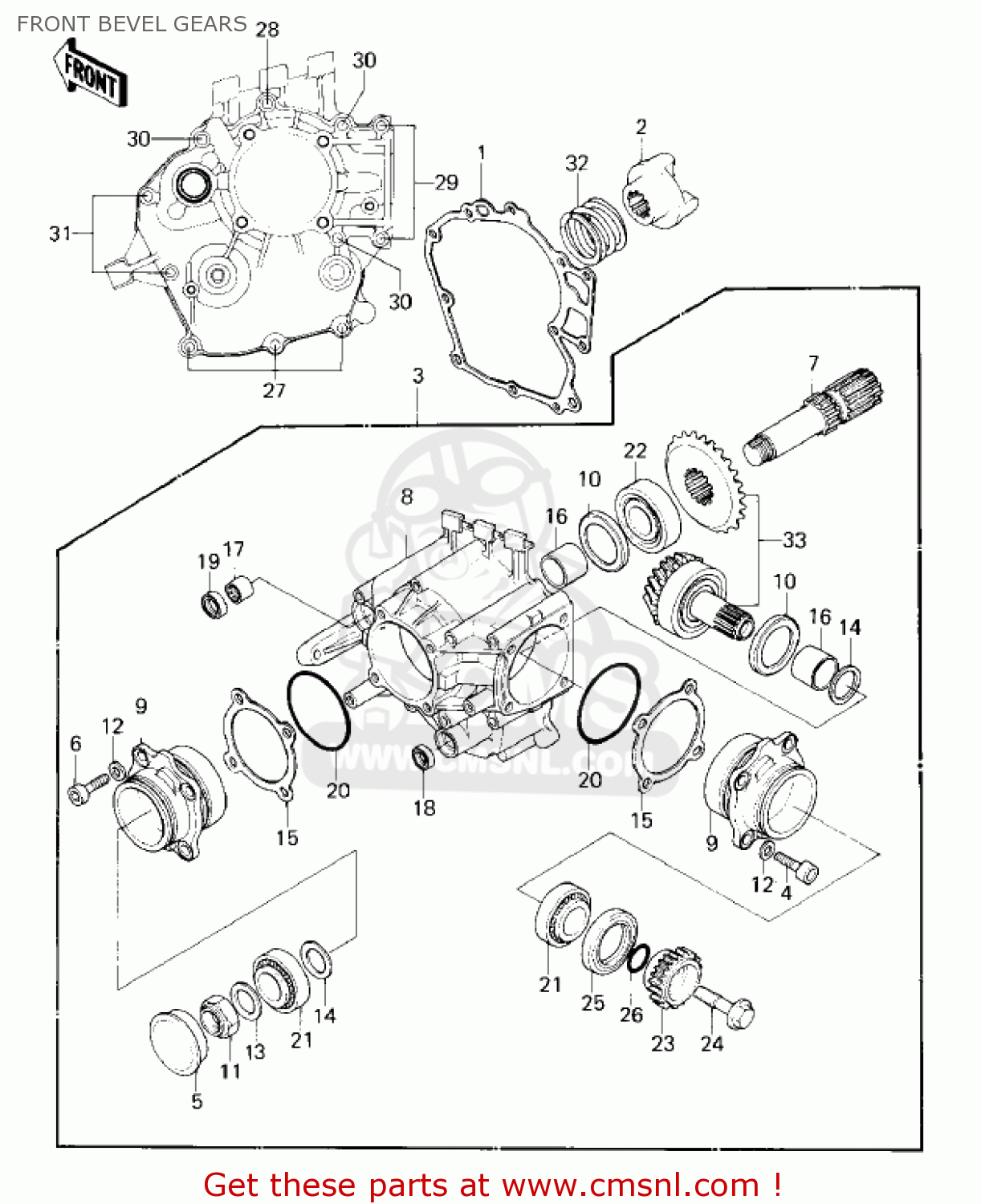

Front bevel gears diagram KZ1000E2 SHAFT 1980 CANADA
FRONT BEVEL GEARS KZ1000E2 SHAFT 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110091112
ref: 1
GSKET,FRNT BEVL GE CA
€ 10.00
2
130481005
ref: 2
CAM,DAMPER
€ 57.00
3
131011010
ref: 3
GEAR ASSY FRONT BEVEL
€ 1,105.50
4
120P0825
ref: 4
BOLT,SOCKET,8X25
€ 1.50
5
110121071
ref: 5
CAP
€ 21.50
6
120P0825
ref: 6
BOLT,SOCKET,8X25
€ 1.50
7
131071014
ref: 7
SHAFT,FRONT BEVEL GEA
€ 185.00
8
140551003
ref: 8
CASE,FRONT BEVEL GEAR
€ 447.00
9
410461010
ref: 9
HOUSING,BEARING
€ 102.00
10
510361002
ref: 10
CAP
€ 3.50
11
920151065
ref: 11
NUT,20MM
€ 6.00
12
920221028
ref: 12
WASHER,8.5X13X1
€ 2.50
13
920221116
ref: 13
WASHER,20.3X36X2.3
€ 5.50
14
920251072
ref: 14
SHIM,1.70T
€ 6.50
14
920251073
ref: 14
SHIM,1.72T
€ 6.50
14
920251074
ref: 14
SHIM,1.74T
€ 6.50
14
920251075
ref: 14
SHIM,1.76T
€ 6.50
14
920251076
ref: 14
SHIM,1.78T
€ 6.50
14
920251077
ref: 14
SHIM,1.80T
€ 6.50
15
920251078
ref: 15
SHIM,0.15T
€ 4.50
15
920251079
ref: 15
SHIM,T=0.50
€ 7.50
15
920251080
ref: 15
SHIM,0.60T
€ 4.50
15
920251081
ref: 15
SHIM,0.70T
€ 6.00
15
920251082
ref: 15
SHIM,0.80T
€ 7.00
15
920251083
ref: 15
SHIM,0.90T
€ 4.50
15
920251084
ref: 15
SHIM,1.00T
€ 6.00
15
920251085
ref: 15
SHIM,1.20T
€ 4.50
16
920271152
ref: 16
COLLAR,25.2X29.8X22.8
€ 12.00
16
920271153
ref: 16
COLLAR,25.2X29.8X22.9
€ 12.00
16
920271154
ref: 16
COLLAR,25.2X29.8X23
€ 12.00
16
920271155
ref: 16
COLLAR,25.2X29.8X23.1
€ 12.50
16
920271156
ref: 16
COLLAR,25.2X29.8X23.2
€ 13.00
16
920271157
ref: 16
COLLAR,25.2X29.8X23.3
€ 12.00
16
920271158
ref: 16
COLLAR,25.2X29.8X23.4
€ 12.00
16
920271159
ref: 16
COLLAR,25.2X29.8X23.5
€ 12.00
16
920271160
ref: 16
COLLAR,25.2X29.8X23.6
€ 12.00
16
920271161
ref: 16
COLLAR,25.2X29.8X23.7
€ 12.00
16
920271162
ref: 16
COLLAR,25.2X29.8X23.8
€ 12.00
16
920271163
ref: 16
COLLAR,25.2X29.8X23.9
€ 12.00
16
920271164
ref: 16
COLLAR,25.2X29.8X24
€ 12.00
16
920271165
ref: 16
COLLAR,25.2X29.8X24.1
€ 12.00
17
92046037
ref: 17
BEARING-NEEDLE,7E-HK1
€ 17.00
18
92049004
ref: 18
OIL SEAL SB12205
€ 6.00
19
920491037
ref: 19
TC1424?8
OIL SEAL,TC14244.8
€ 6.50
20
671B2565
ref: 20
O RING,65MM
€ 6.00
21
921161003
ref: 21
BEARING,R,4T-30205
€ 41.00
22
921161006
ref: 22
BEARING-ROLLER,4T3030
€ 52.00
23
420341091
ref: 23
COUPLING,FR DRIVEN
€ 96.00
24
920011169
ref: 24
BOLT,12X42
€ 15.50
25
920491038
ref: 25
OIL SEAL,TC35527
€ 12.50
26
920551044
ref: 26
RING-O,ID=18.64
€ 3.00
27
92003110
ref: 27
BOLT-HEX HEAD,6X54
€ 1.50
28
92003111
ref: 28
BOLT-HEX HEAD,6X99
€ 2.00
29
130G0695
ref: 29
BOLT-FLANGED,6X95
€ 3.50
30
92003113
ref: 30
BOLT-HEX HEAD,6X116
€ 3.00
31
130G0670
ref: 31
BOLT-FLANGED,6X70
€ 0.50
32
920811117
ref: 32
SPRING,CAM DAMPER
€ 27.00
33
131015027
ref: 33
GEAR-ASSY,FRONT BEVEL
€ 1,107.50
