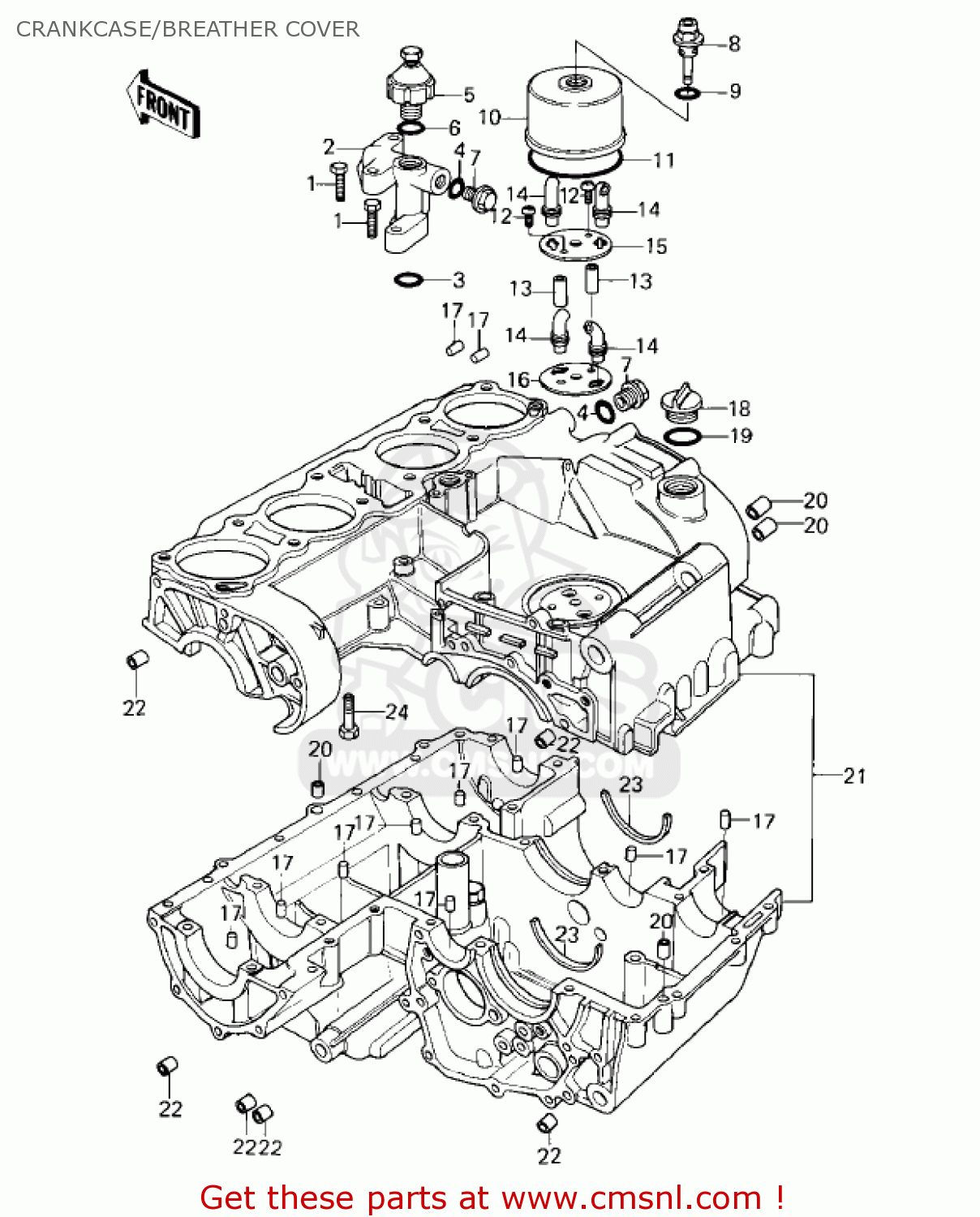

CRANKCASE/BREATHER COVER

ref

part #

description

quantity

1

92001164
ref: 1

BOLT,6X35

€ 3.50

2

16109003
ref: 2

PIPE

€ 16.00

3

670B2018
ref: 3

O RING,18MM

€ 1.00

4

670B2015
ref: 4

O RING,15MM

€ 1.00

5

270101013
ref: 5

SWITCH,OIL PRESSURE

€ 28.50

6

92055055
ref: 6

'0'RING

€ 2.50

7

92066021
ref: 7

PLUG,14X12

€ 15.00

8

92003098
ref: 8

BOLT-BREATHER FITTING

€ 35.50

9

670B2016
ref: 9

O RING,16MM

€ 1.00

10

14070007
ref: 10

BODY, BREATHER

€ 31.50

11

92055052
ref: 11

RING-O,91.6X3.4

€ 6.00

12

220B0640
ref: 12

SCREW-PAN HEAD,6X40

€ 2.00

13

92027276
ref: 13

COLLAR,IGNITION COIL

€ 4.00

14

92059140
ref: 14

TUBE, BREATHER

€ 4.50

15

14068009
ref: 15

PLATE, BREATHER

€ 7.50

16

14068007
ref: 16

PLATE,BREATHER

€ 6.50

17

92042016
ref: 17

PIN,DOWEL,6X16

€ 3.50

18

16115013
ref: 18

PLUG-OIL FILLER

€ 13.50

19

92055049
ref: 19

'0'RING,31MM

€ 2.50

20

920431037
ref: 20

PIN,DOWEL,10X8.2X14

€ 0.50

21

140015030
ref: 21
FLAT BLACK

CRANKCASE SET

€ 1,627.50

22

92042007
ref: 22

PIN-DOWEL

€ 4.00

23

140131004
ref: 23

RING-POSITION,CRANK

€ 3.00

23

14013013
ref: 23

RING-POSITION,T=1.90

€ 7.50

24

92003107
ref: 24

BOLT-HEX HEAD,8X72

€ 10.00

all assemblies
