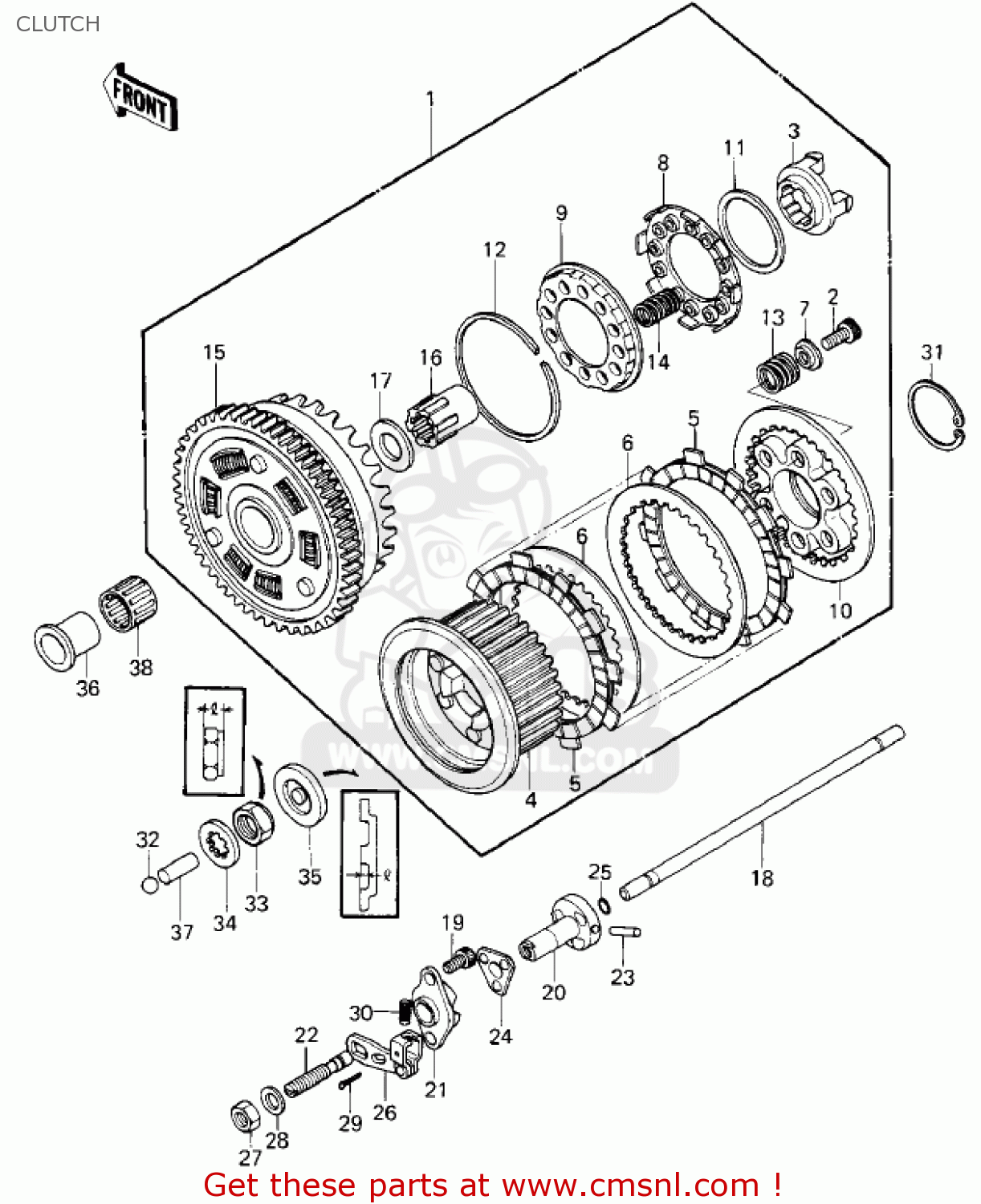

CLUTCH

ref

part #

description

quantity

1

130811021
ref: 1

CLUTCH ASSY

€ 897.50

2

120S0616
ref: 2

BOLT-SOCKET,6X16

€ 1.00

3

130481007
ref: 3

CAM-DAMPER

€ 61.50

4

130871009
ref: 4

HUB-CLUTCH

€ 155.50

5

13088040
ref: 5

PLATE,CLUTCH FRICTION (NAS)

€ 12.50

6

130891004
ref: 6

PLATE,CLUTCH STEEL (NAS)

€ 6.50

7

130911041
ref: 7

HOLDER CLUTCH SPRING

€ 8.50

8

130911042
ref: 8

HOLDER,DAMPER SPRING,

€ 16.50

9

130911043
ref: 9

HOLDER,DAMPER SPRING,

€ 16.50

10

131871004
ref: 10

PLATE-CLUTCH OPERATIN (NAS)

€ 49.00

11

920261043
ref: 11

SPACER,3.5X59X70

€ 19.00

12

920331029
ref: 12

RING-SNAP

€ 9.50

13

920811114
ref: 13

SPRING,CLUTCH

€ 4.50

14

920811115
ref: 14

SPRING,CLUTCH DAMPER

€ 4.50

15

130951014
ref: 15

HOUSING,CLUTCH

€ 251.00

16

131071013
ref: 16

SHAFT,CLUTCH

€ 39.50

17

92026022
ref: 17

SPACER,25.5X47X2.5

€ 6.50

18

131161007
ref: 18

ROD-PUSH,CLUTCH,8X270

€ 27.00

19

120S0616
ref: 19

BOLT-SOCKET,6X16

€ 1.00

20

131191007
ref: 20

CAM-RELEASE,CLUTCH,IN

€ 38.50

21

131191008
ref: 21

CAM-RELEASE,CLUTCH,OU

€ 34.50

22

920091052
ref: 22

SCREW,CLUTCH RELEASE

€ 9.50

23

92042030
ref: 23

PIN,GEAR CHNGE DRUM

€ 2.50

24

920451023
ref: 24

BEARING-BALL,CLUTCH R

€ 8.00

25

670B1505
ref: 25

O RING,5MM

€ 1.00

26

132361012
ref: 26

LEVER ASSY,CLUTCH REL

€ 4.50

27

318B0800
ref: 27

NUT,8MM

€ 0.50

28

411B0800
ref: 28

WASHER-PLAIN,8MM

€ 0.50

29

550D1615
ref: 29

PIN-COTTER,1.6X15

€ 1.50

30

92081069A
ref: 30

CLUTCH RELEASE SPRING

€ 4.50

31

481J5000
ref: 31

CIRCLIP,50M/M

€ 3.50

32

600A1200
ref: 32

BALL-STEEL,3/8

€ 0.50

33

920151065
ref: 33
USE FOR 92026 1042

NUT,20MM

€ 6.00

33

920151555
ref: 33
USE FOR 92026 1065

NUT,20MM

€ 9.00

34

920221114
ref: 34

WASHER,TOOTHED,25X40X

€ 10.50

35

920261065
ref: 35

SPACER,CLUTCH

€ 34.00

36

92028135
ref: 36

BUSHING,CLUTCH

€ 35.50

37

920431051
ref: 37

PIN,PUSH ROD

€ 4.50

38

92046028
ref: 38
KTV323723

BEARING-NEEDLE,KTV323

€ 20.50
