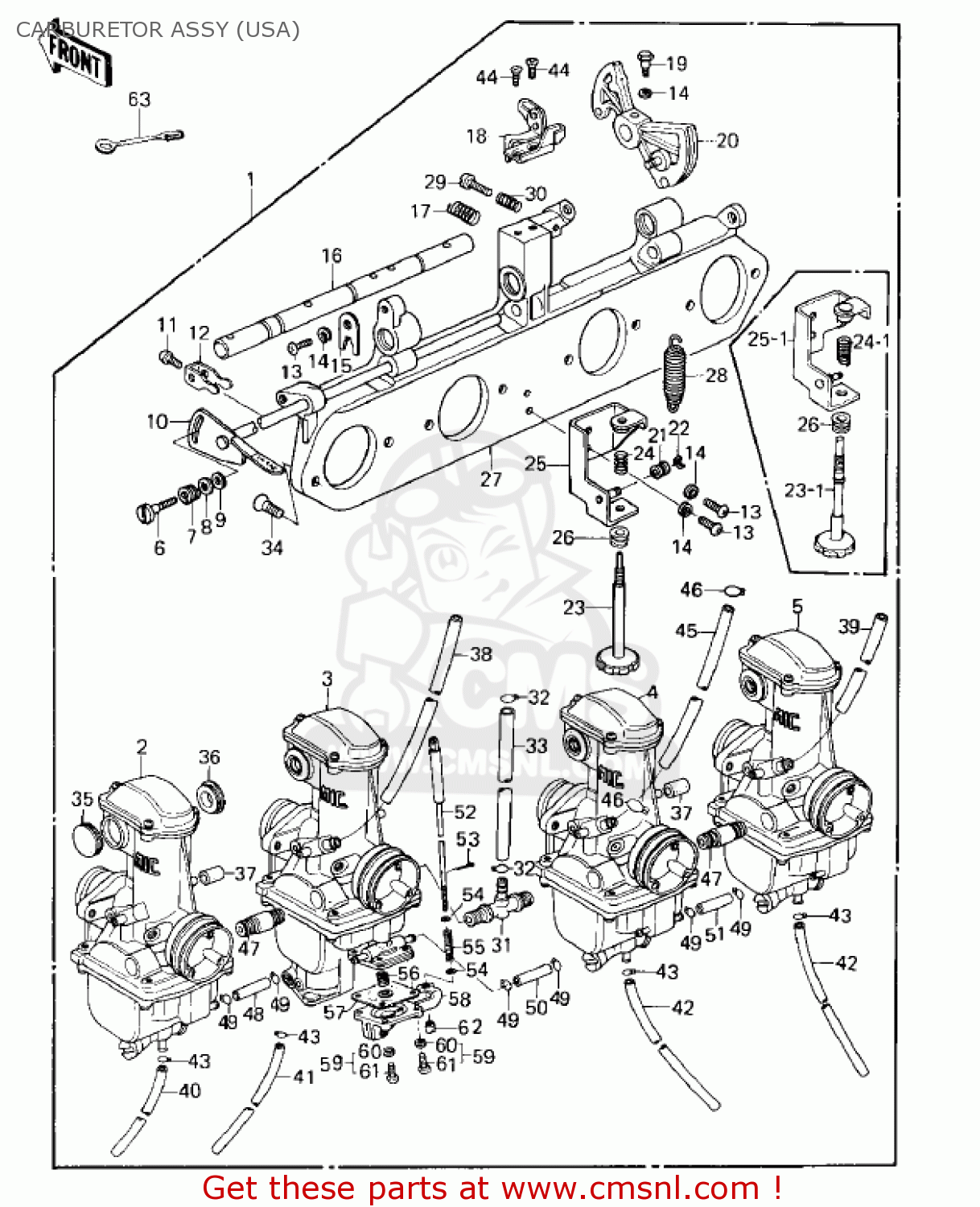

CARBURETOR ASSY (USA)

ref

part #

description

quantity

1

160011098
ref: 1
KZ1000-E1

CARBURETOR ASSEMBLY

€ 954.50

1

160011205
ref: 1
KZ1000-E2

CARBURETOR ASSEMBLY

€ 863.50

2

160011144
ref: 2
KZ1000-E1

CARBURETOR,OUTSIDE,LH

€ 378.00

2

160011234
ref: 2
KZ1000-E2

CARBURETOR,OUTSIDE,LH

€ 266.50

3 & 56

160011145
ref: 3 & 56
KZ1000-E1

CARBURETOR,INSIDE,LH

€ 372.50

3 & 56

160011235
ref: 3 & 56
KZ1000-E2

CARBURETOR,INSIDE,LH

€ 266.50

4

160011146
ref: 4
KZ1000-E1

CARBURETOR,INSIDE,RH

€ 372.50

4

160011236
ref: 4
KZ1000-E2

CARBURETOR,INSIDE,RH

€ 267.00

5

160011147
ref: 5
KZ1000-E1

CARBURETOR,OUTSIDE,RH

€ 372.50

5

160011237
ref: 5
KZ1000-E2

CARBURETOR,OUTSIDE,RH

€ 266.50

6

16046005
ref: 6

SCREW

€ 4.50

7

16040009
ref: 7

SPRING,F

€ 6.50

8

16039020
ref: 8
STEEL

WASHER,PLAIN

€ 3.50

8

410B0500
ref: 8
STEEL

WASHER-PLAIN-SMALL,5M

€ 0.50

9

16039019
ref: 9
NYLON

WASHER-PLAIN

€ 3.00

10

160411005
ref: 10

SHAFT,STARTER PLUNGER

€ 30.00

11

16046007
ref: 11

SCREW,PAN HEAD,5X7

€ 6.50

12

131681026
ref: 12

LEVER,STARTER PLUNGER

€ 13.50

13

220B0514
ref: 13

ACREW-PAN HEAD,5X14

€ 2.50

14

461F0500
ref: 14

WASHER-SPRING,5MM

€ 0.50

15

16055012
ref: 15

PLATE,SHAFT STOPPER

€ 7.00

16

16041017
ref: 16

SHAFT,CARB CONNECTION

€ 47.50

17

16040022
ref: 17

SPRING,CABLE PLY BKT

€ 6.00

18

16077017
ref: 18

BRACKET,THROTTLE CABL

€ 41.00

19

16067006
ref: 19

BOLT-HEX HEAD,5X14

€ 10.50

20

132361015
ref: 20

THROTTLE CABLE PULLEY

€ 36.50

21

16073016
ref: 21

RING

€ 8.00

22

482K3000
ref: 22

CIRCLIP-TYPE-E,3MM

€ 2.00

23

160211006
ref: 23
KZ1000-E1

SCREW,THROTTLE STOP

€ 18.50

23-1

160211020
ref: 23-1
KZ1000-E2

SCREW,THROTTLE STOP

€ 17.50

24

16022017
ref: 24
KZ1000-E1

SPRING, THROTTLE STOP

€ 4.50

24-1

920811200
ref: 24-1
KZ1000-E2

SPRING,THROTT STP SCR

€ 5.50

25

110341185
ref: 25
KZ1000-E1

BRACKET,THROTTLE CABL

€ 27.00

25-1

110341667
ref: 25-1
KZ1000-E2

BRACKET,THROTT CBL PL

€ 23.00

26

920281071
ref: 26

BUSHING,IDLING ADJUST

€ 4.50

27

160651009
ref: 27

HOLDER,CARBURETOR MOT

€ 103.00

28

920811028
ref: 28

SPRING,THORTTLE PULLY

€ 41.00

29

160211011
ref: 29

SCREW,ADJUSTER

€ 7.00

30

16022010
ref: 30

SPRING,THROTTLE ADJST

€ 4.50

31

920051010
ref: 31

NIPPLE,FUEL HOSE

€ 19.50

32

920371184
ref: 32

CLAMP,HOSE

€ 1.00

33

920591082
ref: 33

TUBE,FUEL

€ 10.50

34

16033029
ref: 34

SCREW,PAN HEAD,6X14

€ 3.00

34

221B0614
ref: 34

SCREW-CNTSNK HD,6X14

€ 2.50

35

16039042
ref: 35

CAP,RUBBER

€ 9.00

36

92071104
ref: 36

GROMMET,CARBURETOR

€ 16.00

37

92059141
ref: 37

HOSE, 6X11.5X16

€ 9.00

38

920591028
ref: 38

HOSE,AIR VENT,5X8X550

€ 13.00

39

920591028
ref: 39

HOSE,AIR VENT,5X8X550

€ 13.00

40

92059147
ref: 40

HOSE,FUEL OVERFLOW

€ 17.50

41

92059134
ref: 41

HOSE,OVERFLOW

€ 17.50

42

92059134
ref: 42

HOSE,OVERFLOW

€ 17.50

43

92037178
ref: 43

CLAMP

€ 7.00

44

221B0510A
ref: 44

SCREW-CNTSNK HD,5X10

€ 2.50

45

920591023
ref: 45

HOSE,FUEL TAP DIAPHRA

€ 17.00

46

92037072
ref: 46

CLAMP,TUBE

€ 4.00

47

920051009
ref: 47

FITTING,FUEL TUBE

€ 36.50

48

920591072
ref: 48

TUBE,3.5X7.5X47.5

€ 7.00

49

920371124
ref: 49

CLAMP,TUBE

€ 4.00

50

920591071
ref: 50

TUBE,

€ 14.00

51

920591072
ref: 51

TUBE,3.5X7.5X47.5

€ 7.00

52 & 5

461021007
ref: 52 & 5
KZ1000-E1

PUMP ROD ASSEMBLY

€ 24.50

52 & 5

461021013
ref: 52 & 5
KZ1000-E2

PUMP ROD ASSEMBLY

€ 24.00

53

550D1006
ref: 53

COTTER PIN,1.0X6

€ 2.00

54

920221138
ref: 54

PUMP ROD WASHER

€ 2.00

55

920811138
ref: 55

SPRING, PUMP ROD

€ 4.50

56

920811139
ref: 56

PUMP DIAPHRAGM SPRING

€ 2.00

57

430281012
ref: 57

DIAPHRAGM,PUMP

€ 64.50

58

140251139
ref: 58

PUMP COVER ASSEMBLY

€ 40.50

59

16033?013
ref: 59

16033?013

60

461F0400
ref: 60

WASHER-SPRING,4MM

€ 0.50

61

220B0414
ref: 61

SCREW-PAN-CROS

€ 2.00

62

920151075
ref: 62

NUT, PUMP ROD

€ 5.50

63

92037134
ref: 63

CLAMP,OVER FLOW PIPE

€ 7.50

all assemblies
