TRANSMISSION/CHANGE DRUM
KX400 1975 USA

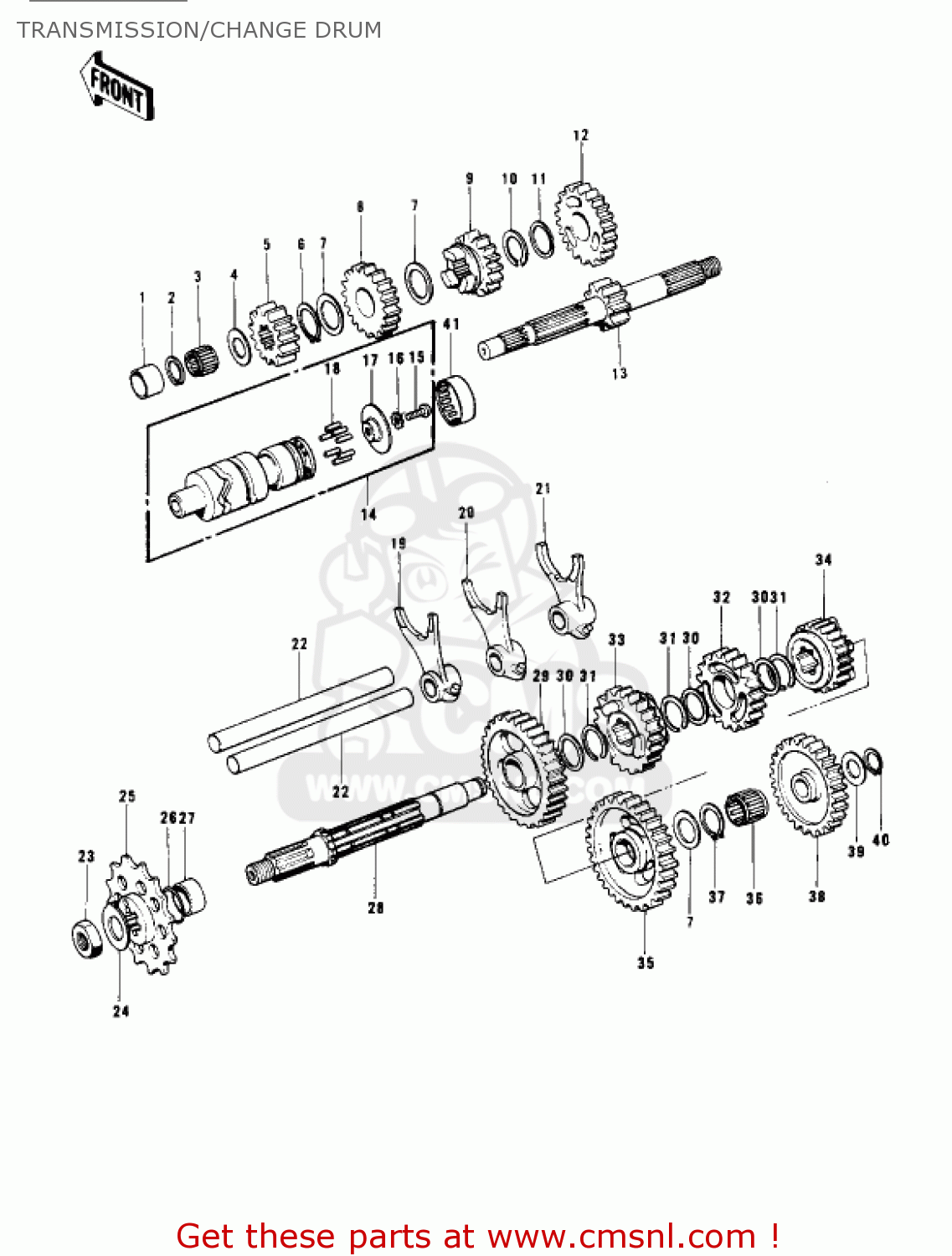

Transmission/change drum diagram KX400 1975 USA
TRANSMISSION/CHANGE DRUM KX400 1975 USA
×
prices are in EUR
ref
part #
description
quantity
1
92028132
ref: 1
BUSHING
€ 28.00
2
92033009
ref: 2
CIRCLIP,17MM
€ 2.00
3
92046035
ref: 3
BEARING,BALL,KT172313
€ 12.00
4
92022281
ref: 4
WASHER,PLAIN
€ 4.00
5
13130042
ref: 5
2ND GEAR,DRIVE,13T
€ 32.50
6
92033015
ref: 6
CIRCLIP
€ 2.50
7
92022252
ref: 7
WASHER
€ 4.00
8
13134028
ref: 8
4TH GEAR,DRIVE,16T
€ 50.50
9
13132041
ref: 9
3RD GEAR DRIVE,15T
€ 50.00
10
92033027
ref: 10
CIRCLIP
€ 3.00
11
92022254
ref: 11
WASHER
€ 1.50
12
13136054
ref: 12
TOP GEAR,DRIVE,17T
€ 63.50
13
13127052
ref: 13
SHAFT,DRIVE 10T
€ 152.50
14
13239015
ref: 14
DRUM ASSY,GEAR SHIFT
€ 55.50
15
220B0614
ref: 15
SCREW-PAN HEAD,6X14
€ 2.00
16
464H0600
ref: 16
WASHER-LOCK,6MM
€ 0.50
17
13142014
ref: 17
HOLDER,CHANGE DRUM PI
€ 14.00
18
92042029
ref: 18
PIN,GEAR CHANGE DRUM
€ 3.50
19
13140055
ref: 19
FORK,SELECTOR
€ 59.50
20
13140056
ref: 20
FORK,SELECTOR
€ 57.50
21
13140072
ref: 21
FORK,SELECTOR,4TH-TOP
€ 44.50
22
13209012
ref: 22
ROD,SHIFT
€ 10.00
23
92015019
ref: 23
NUT,18MM
€ 4.00
24
92024067
ref: 24
WASHER,LOCK
€ 2.00
25
13144050
ref: 25
STD
ENGINE SPROCKET,15T
€ 30.50
25
13144051
ref: 25
ENGINE SPROCKET,14T
€ 25.00
26
92055035
ref: 26
O RING
€ 3.00
27
92027163
ref: 27
COLLAR,25X30X10.1
€ 13.00
28
13128039
ref: 28
SHAFT,OUTPUT
€ 106.50
29
13131049
ref: 29
2ND GEAR,OUTPUT,23T
€ 56.00
30
92022253
ref: 30
WASHER
€ 2.50
31
92033026
ref: 31
CIRCLIP
€ 6.00
32
13133034
ref: 32
3RD GEAR,OUTPUT SHAF
€ 55.00
33
13135034
ref: 33
KX400
4TH GEAR,OUTPUT,19T
€ 65.00
33
13135034
ref: 33
KX400-A2
4TH GEAR,OUTPUT,19T
€ 65.00
34
13137036
ref: 34
TOP GEAR,OUTPUT,18T
€ 59.50
35
13129057
ref: 35
LOW GEAR,OUTPUT,25T
€ 47.00
36
920461170
ref: 36
BEARING-NEEDLE,KT2026
€ 9.00
37
480J1900
ref: 37
CIRCLIP-TYPE-C,19MM
€ 1.00
38
13073010
ref: 38
IDLE GEAR,KICKSTARTE
€ 63.00
39
92022197
ref: 39
WASHER-THRUST
€ 1.00
40
480J1600
ref: 40
CIRCLIP-TYPE-C,16MM
€ 2.50
41
92046040
ref: 41
BEARING-NEEDLE,#34401
€ 22.00
