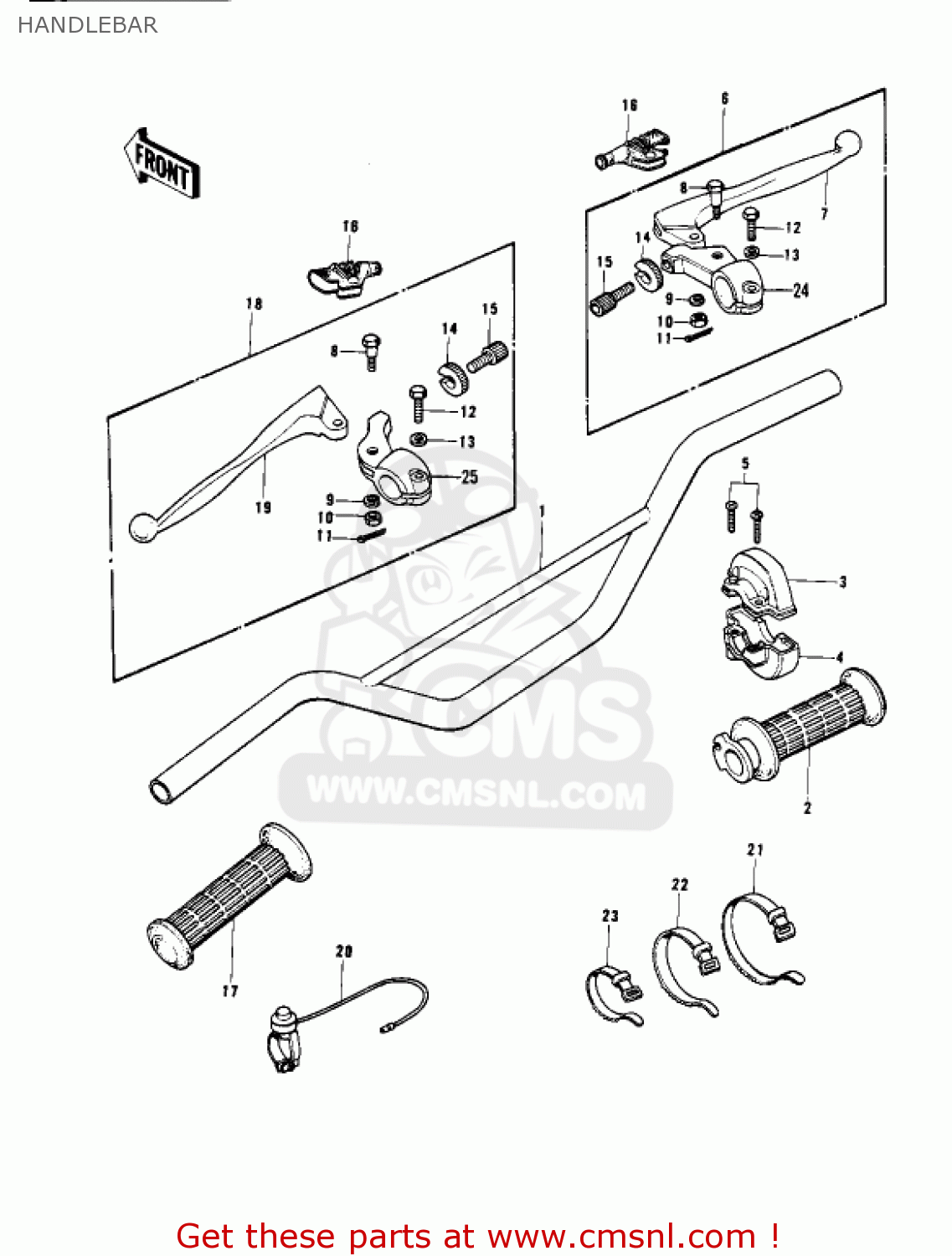

HANDLEBAR

ref

part #

description

quantity

1

46004032
ref: 1

HANDLEBAR

€ 71.50

2

46019037
ref: 2

GRIP,THROTTLE

€ 37.00

3

320991014
ref: 3

CASE,UPP,RH

€ 26.50

4

460915006
ref: 4

HOUSING-ASSY-CONTROL

€ 27.00

5

220E0518A
ref: 5

SCREW,5X18

€ 0.50

6

46021032
ref: 6

LEVER ASSY,FRNT BRAKE

€ 31.00

7

46058018
ref: 7

LEVER-GRIP,FRONT BRAK

€ 35.00

8

92001140
ref: 8

BOLT,HEX HEAD,6MM

€ 10.00

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

320B0600
ref: 10

NUT-CASTLE

€ 2.00

11

550D1615
ref: 11

PIN-COTTER,1.6X15

€ 1.50

12

110N0622
ref: 12

BOLT,6X22

€ 2.00

13

411B0600
ref: 13

WASHER-PLAIN,6MM

€ 0.50

14

46056006
ref: 14

NUT,CABLE ADJUST NUT

€ 6.00

15

46055009
ref: 15

SCREW,CABLE ASJUST

€ 13.00

16

490061017
ref: 16

BOOTS,LEVER HOLDER

€ 13.00

17

46075027
ref: 17

RUBBER,L.H GRIP

€ 6.00

18

46076048
ref: 18

LEVER,ASSY,CLUTCH

€ 52.00

19

46092021
ref: 19

LEVER-GRIP,CLUTCH

€ 23.50

20

270101018
ref: 20

SWITCH ASSY,ENG,STOP

€ 40.50

21

92072030
ref: 21
KX400

BAND,SHORT

€ 3.00

21

92072030
ref: 21
KX400-A2

BAND,SHORT

€ 3.00

22

92072031
ref: 22
KX400

BAND,MIDDLE

€ 3.00

22

92072056
ref: 22
KX400-A2

BAND,RUBBER

€ 3.00

23

92072035
ref: 23
KX400

BAND,L=80

€ 4.00

23

92072031
ref: 23
KX400-A2

BAND,MIDDLE

€ 3.00

24

46060010
ref: 24

HOLDER,FR BRAKE LEVER

€ 43.50

25

46094014
ref: 25

HOLDER,CLUTCH LEVER

€ 57.00
