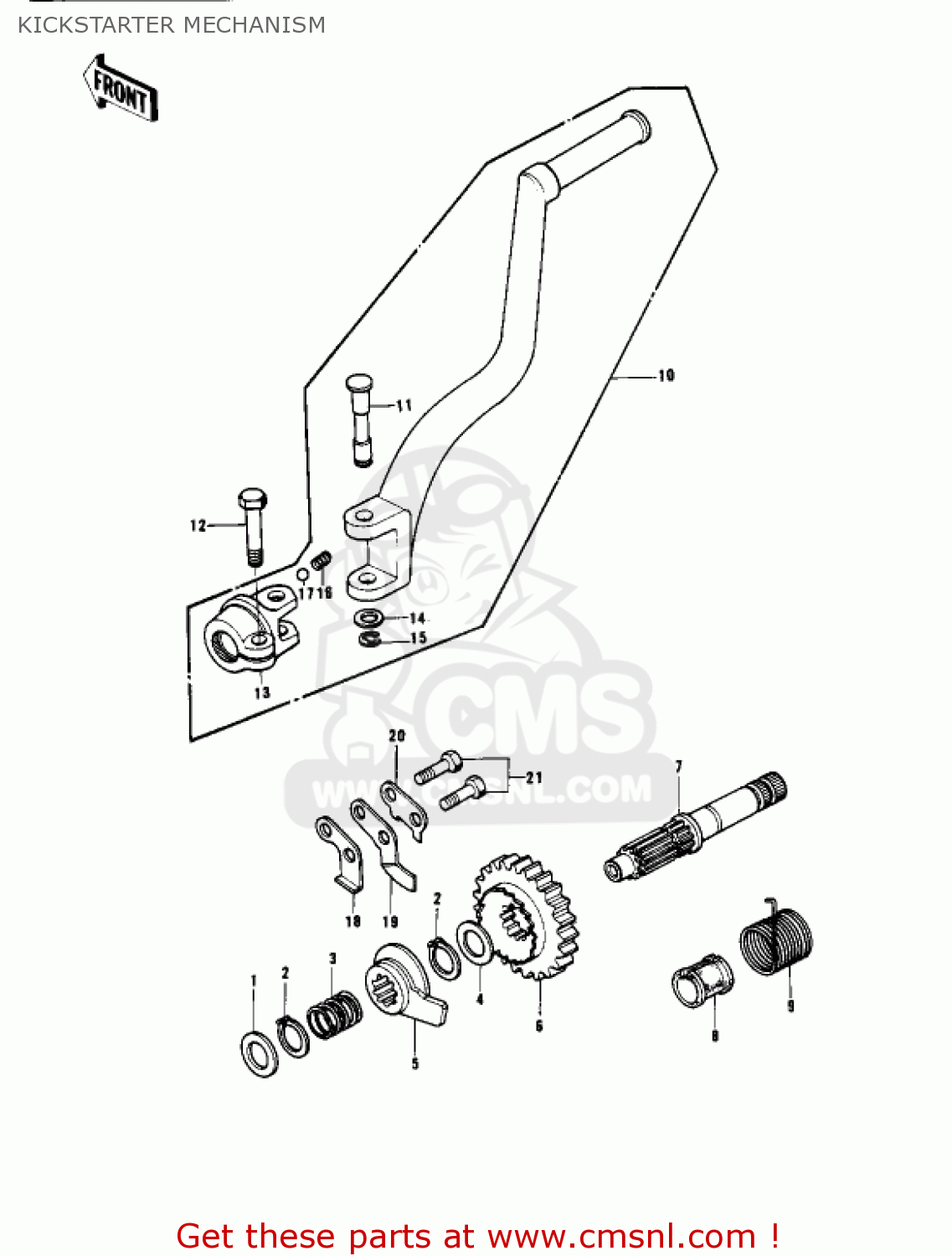

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

92022252
ref: 1

WASHER

€ 4.00

2

92033026
ref: 2

CIRCLIP

€ 6.00

3

92081097
ref: 3

SPRING

€ 7.50

4

92022159
ref: 4

WASHER-THRUST,25MM

€ 5.50

5

13078007
ref: 5

RATCHET

€ 50.00

6

13068029
ref: 6

GEAR,KICKSTARTER

€ 28.00

7

13066031
ref: 7

SHAFT,KICKSTARTER

€ 37.50

8

13070007
ref: 8

GUIDE,KICK SPRING

€ 5.50

9

92082003
ref: 9

SPRING-KICKSTARTER

€ 19.00

10

13058060
ref: 10

PEDAL ASSY,KICK

€ 131.00

11

92043119
ref: 11

PIN,KICK PEDAL

€ 24.50

12

92001085
ref: 12
KX400

BOLT-HEX HEAD,10MM

€ 3.00

12

113G1025
ref: 12
KX400-A2

BOLT-SMALL-FINE,10X25

€ 2.50

13

13061026
ref: 13

BOSS,KICK PEDAL

€ 65.50

14

410B1000
ref: 14

WASHER-PLAIN-SMALL,10

€ 0.50

15

482K7000
ref: 15

CIRCLIP-TYPE-E,7MM

€ 2.50

16

92081020
ref: 16

SPRING-KICK PEDAL

€ 2.50

17

600A0800
ref: 17

BALL-STEEL,1/4

€ 0.50

18

13072014
ref: 18

STOPPER,KICKSTARTER

€ 6.50

19

132061003
ref: 19

GUIDE-KICK

€ 7.00

20

92031008
ref: 20

WASHER,LOCK

€ 1.50

21

112G0616
ref: 21

BOLT UPSET,6X16

€ 1.00
