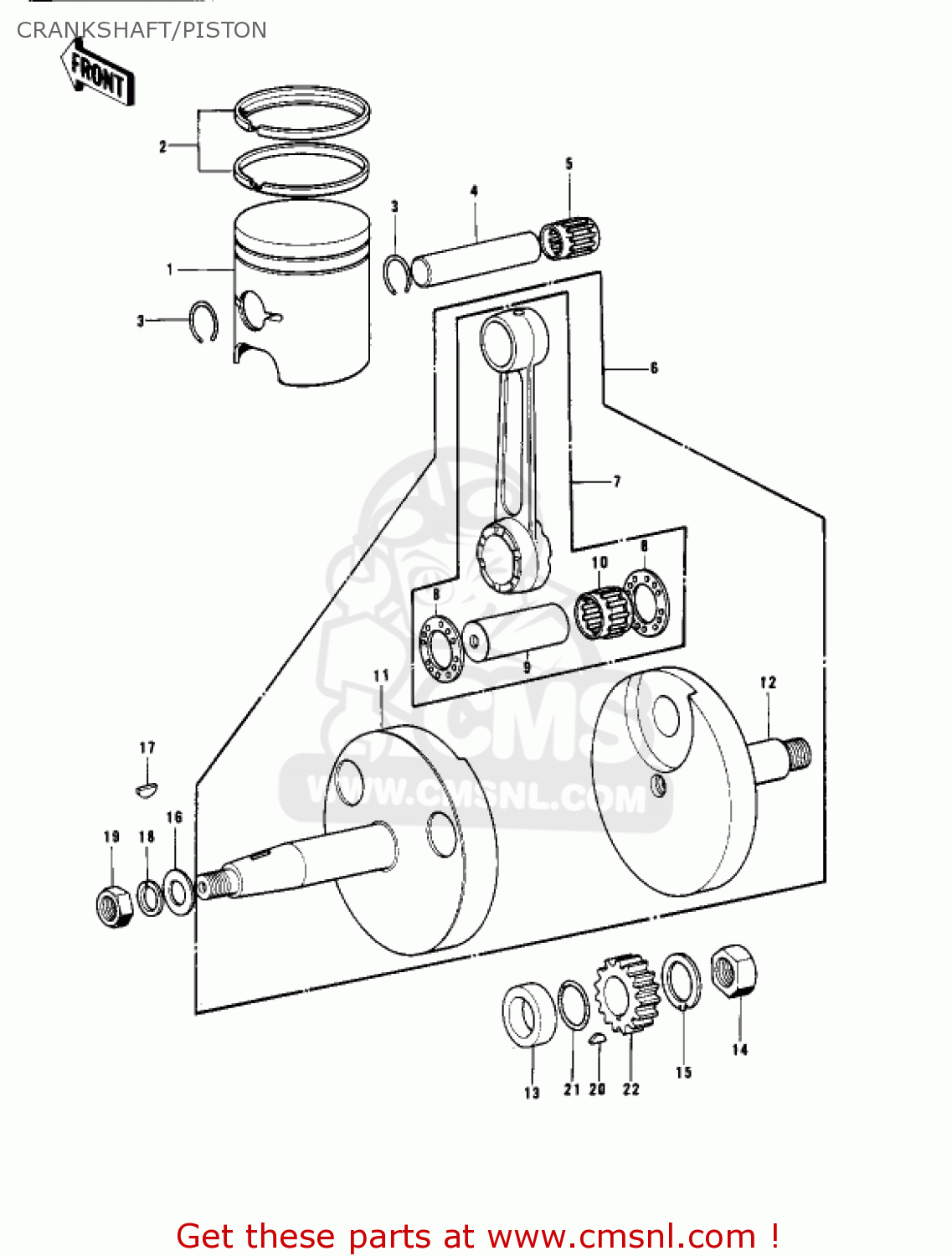

CRANKSHAFT/PISTON

ref

part #

description

quantity

1

13001076
ref: 1

PISTON,STD

€ 104.50

1

13029076
ref: 1

PISTON, 0.020 'O.S.

€ 145.00

2

13008057
ref: 2

RING SET,STD

€ 79.50

2

13025060
ref: 2

RING SET 0.020 'O.S.

€ 64.00

3

92036024
ref: 3

CIRCLIP

€ 1.50

4

13002030
ref: 4

PIN,PISTON

€ 9.50

5

130331055
ref: 5

BEARING-SMALL END,KTV

€ 26.00

6

13036042
ref: 6

CRANK&CONROD ASSY

€ 481.50

7

13044027
ref: 7

CONNECTING ROD SET

€ 144.50

8

92026093
ref: 8

WASHER

€ 17.50

9

13035032
ref: 9

CRANK PIN

€ 25.50

10

13034035
ref: 10

BEARING,KT263422

€ 21.00

11

13037054
ref: 11

CRANKSHAFT,L.H

€ 68.50

12

13038050
ref: 12

CRANKSHAFT,R.H

€ 67.00

13

92027190
ref: 13

COLLAR

€ 13.00

14

92015019
ref: 14

NUT,18MM

€ 4.00

15

92024015
ref: 15

WASHER,CLAW,18.2X32X0

€ 2.50

16

92022172
ref: 16

WASHER,14.5X25X3.6

€ 6.50

17

92038001
ref: 17

WOODRUFF KEY

€ 3.00

18

461F1400
ref: 18

WASHER-SPRING,14MM

€ 0.50

19

92015043
ref: 19

NUT,14MM

€ 3.50

20

510A5100
ref: 20

KEY-WOODRUFF

€ 1.50

21

670B3022
ref: 21

'O' RING,22MM

€ 2.00

22

13121024
ref: 22

GEAR,PRIMARY

€ 58.50

all assemblies
