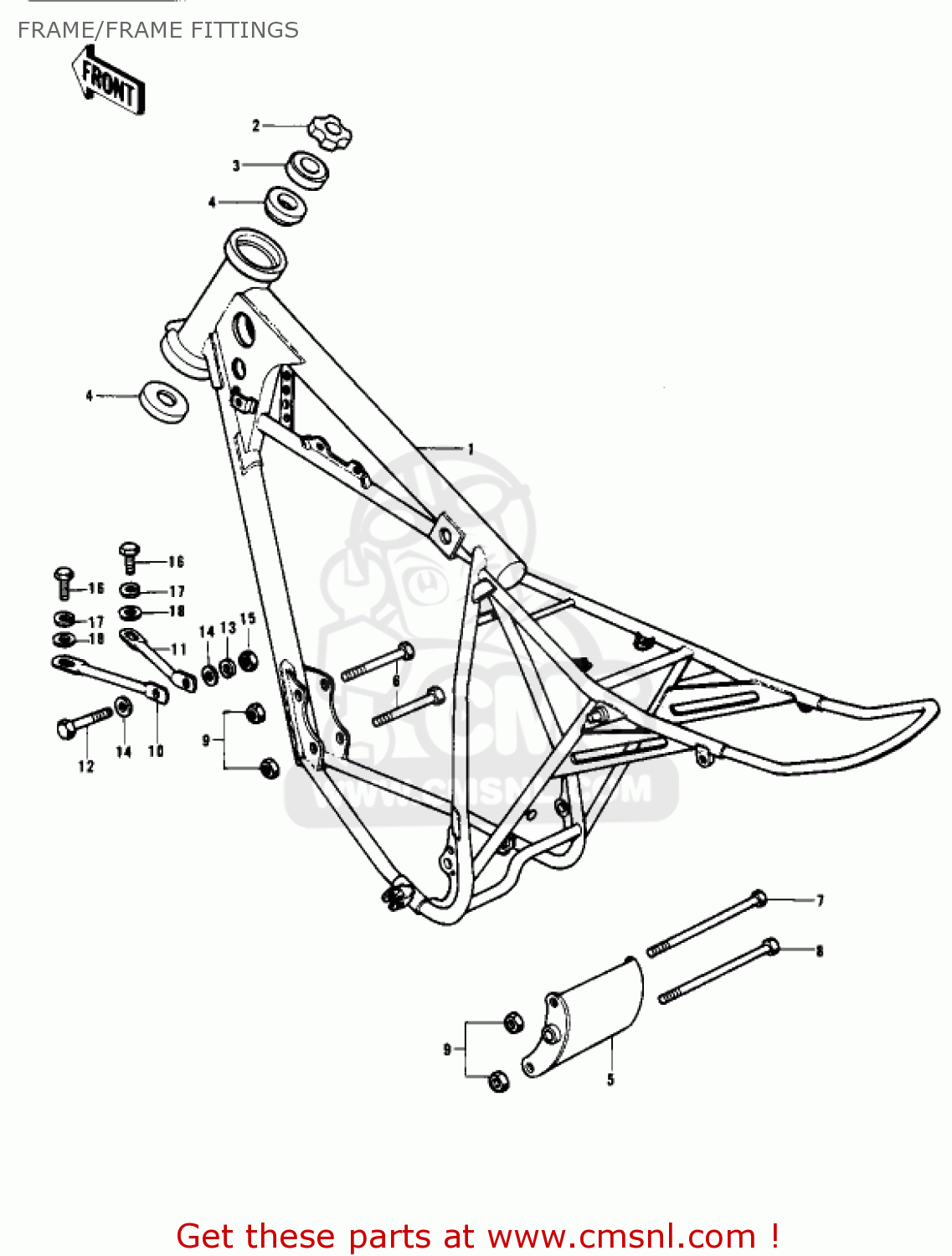

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

32002124
ref: 1

FRAME

€ 582.00

2

920151546
ref: 2

NUT,25MM,T=12

€ 14.50

3

46098015
ref: 3

CAP,STEERING STEM

€ 3.50

4

92047017
ref: 4

CONE,STRNG,STEM

€ 49.50

5

32117009
ref: 5

BRACKET,ENGINE BASE

€ 12.50

6

920011255
ref: 6
KX400

BOLT,HEX HEAD,10X65

€ 5.50

6

920011255
ref: 6
KX400-A2

BOLT,HEX HEAD,10X65

€ 5.50

7

920011602
ref: 7

BOLT,FLANGED,10X110

€ 7.50

8

920011603
ref: 8

BOLT,FLANGED,10X115

€ 7.00

9

92019016
ref: 9

NUT,10MM

€ 3.00

10

32030051
ref: 10

PLATE,ENG MOUNT L.H

€ 6.00

11

32030052
ref: 11

PLATE,ENG MOUNT R.H

€ 6.00

12

113G1028
ref: 12

BOLT,HEX HEAD,10X28

€ 4.50

13

461F1000
ref: 13

WASHER-SPRING,10MM

€ 0.50

14

411B1000
ref: 14

WASHER-PLAIN,10MM

€ 0.50

15

314B1000
ref: 15

NUT,10MM

€ 0.50

16

115G0820
ref: 16

BOLT,8X20

€ 2.00

17

461F0800
ref: 17

WASHER-SPRING,8MM

€ 0.50

18

411B0800
ref: 18

WASHER-PLAIN,8MM

€ 0.50
