FRONT FORK
KX400 1975 USA

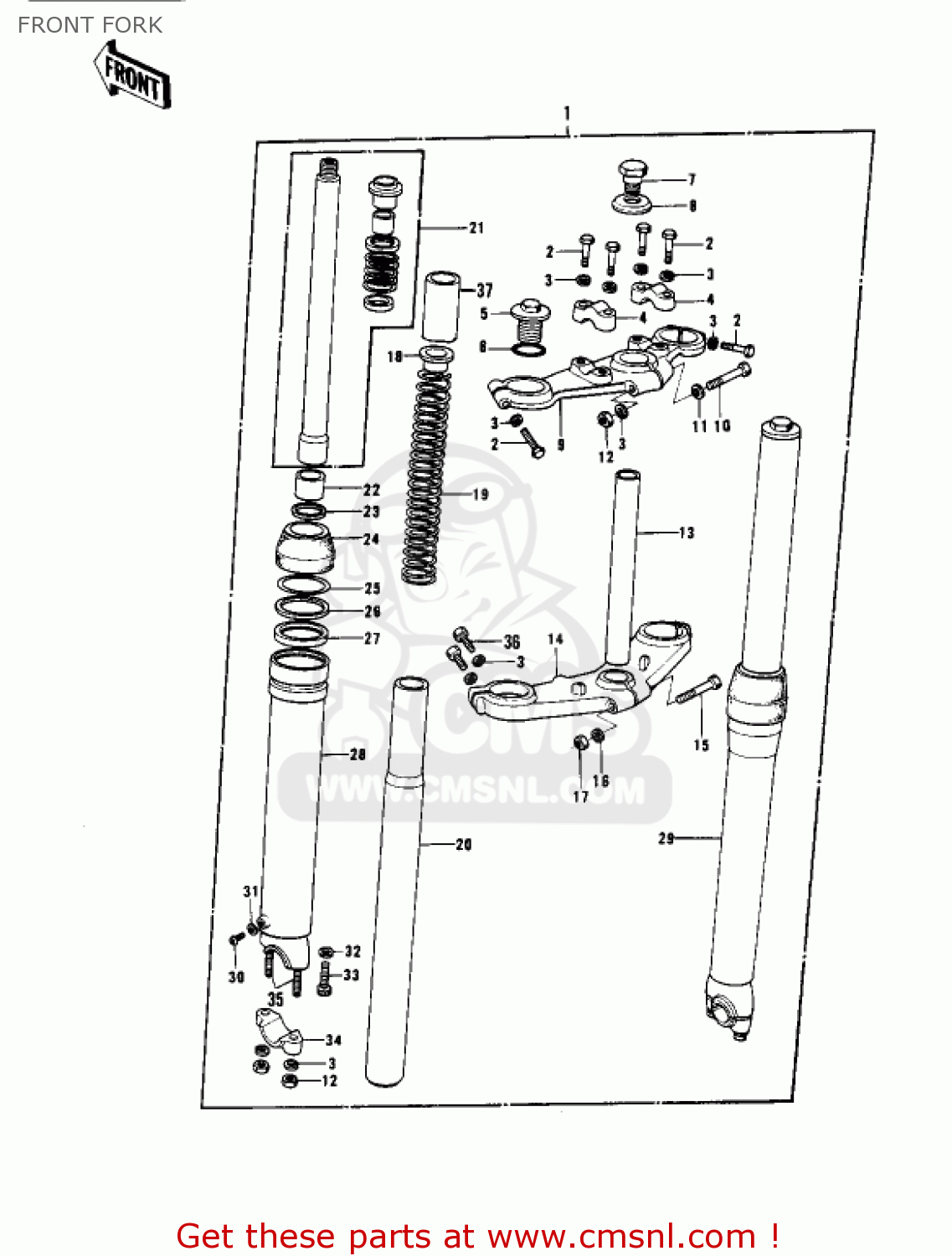

Front fork diagram KX400 1975 USA
FRONT FORK KX400 1975 USA
×
prices are in EUR
ref
part #
description
quantity
1
44001169
ref: 1
KX400
FRONT FORK ASSY
€ 1,109.50
1
44001182
ref: 1
KX400-A2
FRONT FORK ASSY
€ 538.00
2
44041044
ref: 2
BOLT-STEERING STEM HD
€ 6.50
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
46012011
ref: 4
HOLDER,HANDLEBAR
€ 12.00
5
44041037
ref: 5
BOLT-FORK FITTING
€ 30.50
6
920551012
ref: 6
RING-O,FORK TOP
€ 5.00
7
44041065
ref: 7
BOLT,FORK TOP
€ 18.50
8
44043055
ref: 8
WASHER,FORK TOP BOLT
€ 3.50
9
44039062
ref: 9
HEAD,STEERING STEM
€ 79.00
10
44041042
ref: 10
BOLT-STEERING STEM HD
€ 3.00
11
411B0800
ref: 11
WASHER-PLAIN,8MM
€ 0.50
12
311B0800
ref: 12
NUT,8MM
€ 0.50
13
44052008
ref: 13
SHAFT,STEERING STEM
€ 87.00
14
44038008
ref: 14
STEM STEERING
€ 164.00
15
44041066
ref: 15
BOLT,HEX HEAD
€ 5.50
16
461F1000
ref: 16
WASHER-SPRING,10MM
€ 0.50
17
311B1000
ref: 17
NUT,10MM
€ 0.50
18
44028033
ref: 18
GUIDE-FORK SPRING
€ 6.00
19
44026066
ref: 19
KX400
SPRING,FORK INNER
€ 26.50
19
44026068
ref: 19
KX400-A2
SPRING,FORK INNER
€ 16.50
20
44013052
ref: 20
TUBE,FORK INNER
€ 123.00
21
44022030
ref: 21
CYLINDER,FORK
€ 77.50
22
44018008
ref: 22
KX400
PISTON,FORK
€ 7.50
23
44044018
ref: 23
KX400-A2
CIRCLIP,FORK
€ 2.50
23
44044021
ref: 23
CIRCLIP, FORK
€ 3.00
24
44010032
ref: 24
SEAL,FORK
€ 17.00
25
44044012
ref: 25
RING-SNAP
€ 17.50
26
44043044
ref: 26
WASHER,OIL SEAL FIT
€ 8.00
27
920491216
ref: 27
KX400
SEAL-OIL,FORK OUTER P
€ 16.00
27
920491216
ref: 27
KX400-A2
SEAL-OIL,FORK OUTER P
€ 16.00
28
44005060
ref: 28
TUBE,L.H FORK OUTER
€ 97.50
29
44006058
ref: 29
TUBE,R.H FORK OUTER
€ 81.50
30
220B0408
ref: 30
SCREW-PAN-CROS
€ 0.50
31
44045045
ref: 31
KX400
GASKET,FORK DRAIN (NAS)
€ 1.00
31
44045002
ref: 31
KX400-A2
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
32
44045057
ref: 32
GASKET (NAS)
€ 3.00
33
44041040
ref: 33
BOLT-FORK CYLINDER
€ 4.50
34
44063011
ref: 34
HOLDER-FRONT AXLE
€ 27.00
35
920041009
ref: 35
STUD, 8X35
€ 4.00
36
44041083
ref: 36
BOLT
€ 3.00
37
44040003
ref: 37
KX400-A2
SPACER,FORK SPRING
€ 3.00
