TRANSMISSION
KX250-D2 1986 EUROPE UK AL

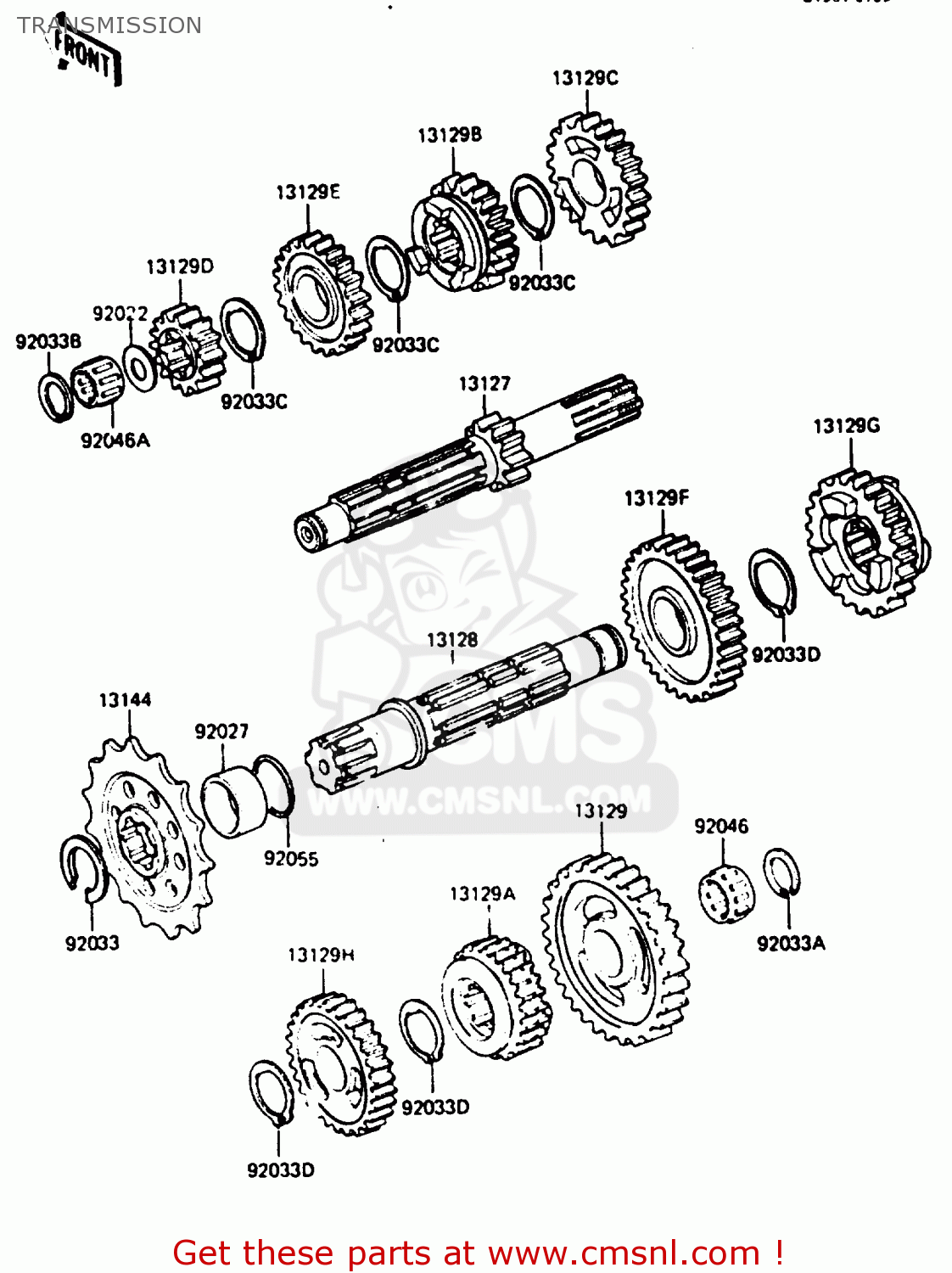

Transmission diagram KX250-D2 1986 EUROPE UK AL
TRANSMISSION KX250-D2 1986 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
13127
131271120
ref: 13127
SHAFT-TRANSMISSION IN
€ 135.00
13128
131281047
ref: 13128
SHAFT-TRANSMISSION OU
€ 118.00
13129
131291160
ref: 13129
GEAR,OUTPUT LOW,32T
€ 89.00
13129A
131291164
ref: 13129A
GEAR,OUTPUT TOP,24T
€ 88.50
13129B
131291204
ref: 13129B
3RD GEAR,DRIVE,18T
€ 50.00
13129C
131291206
ref: 13129C
GEAR,INPUT TOP,24T
€ 88.50
13129D
131291392
ref: 13129D
GEAR,INPUT 2ND,17T
€ 54.50
13129E
131291393
ref: 13129E
GEAR,INPUT 4TH,22T
€ 88.50
13129F
131291394
ref: 13129F
GEAR,OUTPUT 2ND,30T
€ 94.50
13129G
131291761
ref: 13129G
GEAR,OUTPUT,4TH 25T
€ 87.00
13129H
131291763
ref: 13129H
GEAR OUTPUT 3RD,25T
€ 79.50
13144
131441006
ref: 13144
SPROCKET-OUTPUT,14T
€ 24.00
92022
92022271
ref: 92022
WASHER,PLAIN
€ 3.50
92027
920271963
ref: 92027
COLLAR,SPROCKET
€ 12.50
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92033B
92033032
ref: 92033B
CIRCLIP
€ 3.00
92033C
920331088
ref: 92033C
RING-SNAP,20MM
€ 3.50
92033D
920331089
ref: 92033D
RING-SNAP,25MM
€ 3.50
92046
92046038
ref: 92046
BEARING,2KTV119
€ 10.00
92046A
920461059
ref: 92046A
BEARING-NEEDLE,K17X23
€ 20.00
92053
92055039
ref: 92053
'O' RING 134.5MM
€ 9.00
