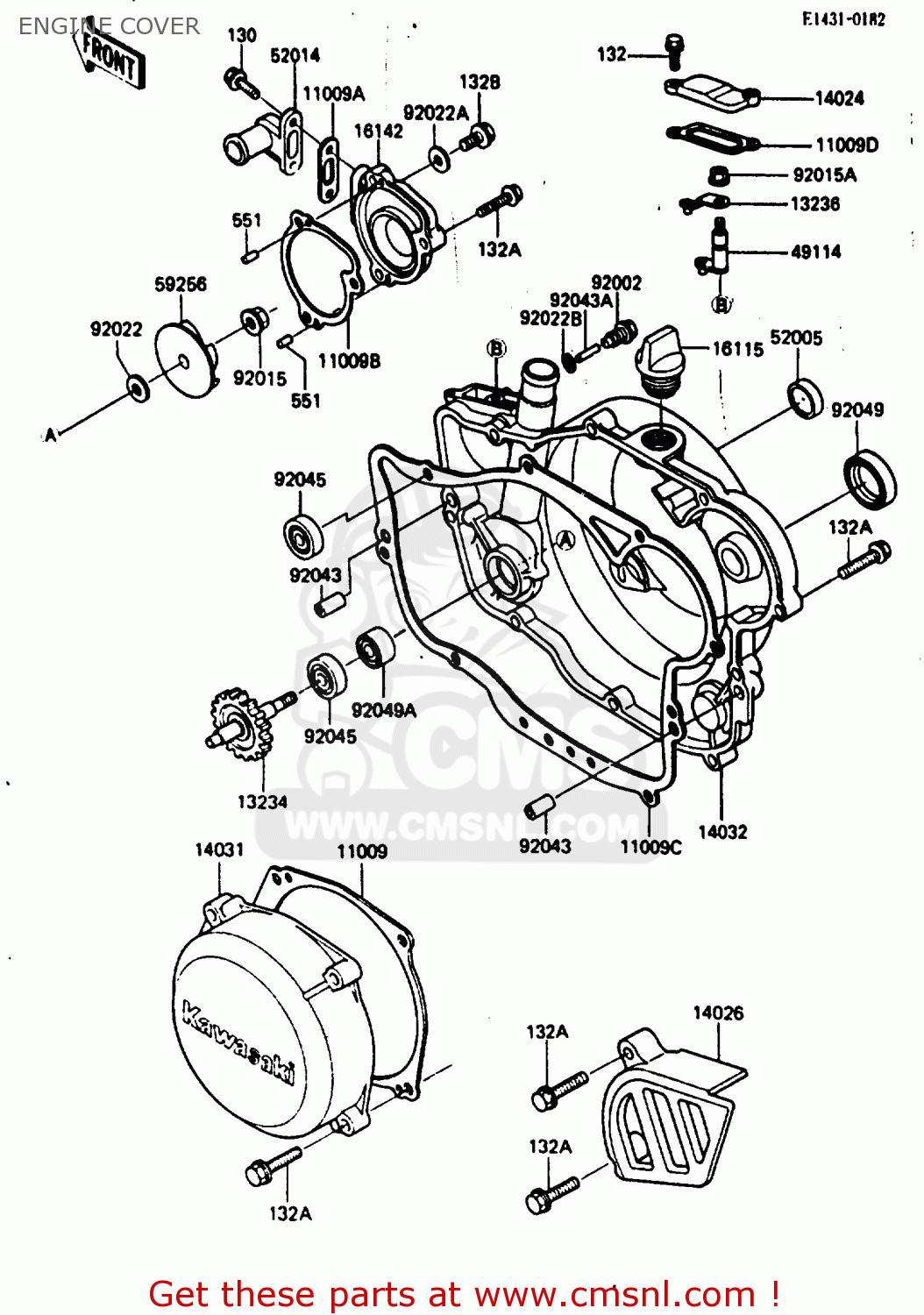

ENGINE COVER

ref

part #

description

quantity

11009

110091319
ref: 11009

GASKET,GENERATOR COVE (MCA)

€ 8.50

11009A

110091446
ref: 11009A

GASKET,WATER PUMP (MCA)

€ 3.50

11009B

110091404
ref: 11009B

GASKET,TAIL LAMP (NAS)

€ 13.00

11009C

110091548
ref: 11009C

GASKET,CLUTCH COVER (MCA)

€ 17.00

11009D

110091549
ref: 11009D

GASKET,GOVERNOR (MCA)

€ 2.00

13234

132341062
ref: 13234

SHAFT-COMP,WATER PUMP

€ 37.50

13236

132361141
ref: 13236

LEVER-COMP,GOVERNOR

€ 4.50

14024

140241139
ref: 14024

COVER,GOVERNOR

€ 5.50

14026

140261119
ref: 14026

COVER-CHAIN

€ 12.50

14031

140311104
ref: 14031

COVER-GENERATOR

€ 54.50

14032

140321208
ref: 14032

COVER-CLUTCH

€ 262.50

16115

16115018
ref: 16115

PLUG,OIL FILLER

€ 7.00

16142

161421067
ref: 16142

COVER-PUMP

€ 86.00

49114

491141057
ref: 49114

SHAFT-GOVERNOR

€ 23.00

52005

520051055
ref: 52005

GAUGE,OIL LEVEL

€ 10.50

52014

520141059
ref: 52014

ELBOW

€ 28.00

59256

592561002
ref: 59256

IMPELLER,WATER PUMP

€ 24.00

92022

920221357
ref: 92022

WASHER,6.5X18X1.6

€ 0.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151572
ref: 92015A

NUT,6MM

€ 2.50

92022

920221393
ref: 92022

WASHER,6X14X2

€ 2.50

92022A

920221488
ref: 92022A

WASHER,8.2X14X1

€ 3.00

92022B

92022304
ref: 92022B

WASHER,PLAIN

€ 2.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92043A

92043109
ref: 92043A

PIN,DOWEL,2.0X19.8

€ 2.00

92045

920451048
ref: 92045

BEARING-BALL,#608

€ 11.50

92049

92049013
ref: 92049

OIL SEAL,SB18307

€ 9.50

92049A

920491081
ref: 92049A

SEAL-OIL,A9567

€ 12.50

130

130G0516
ref: 130

BOLT-FLANGED

€ 0.50

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0625
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132G0810
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50
