REAR HUB
KX250-D2 1986 EUROPE UK AL

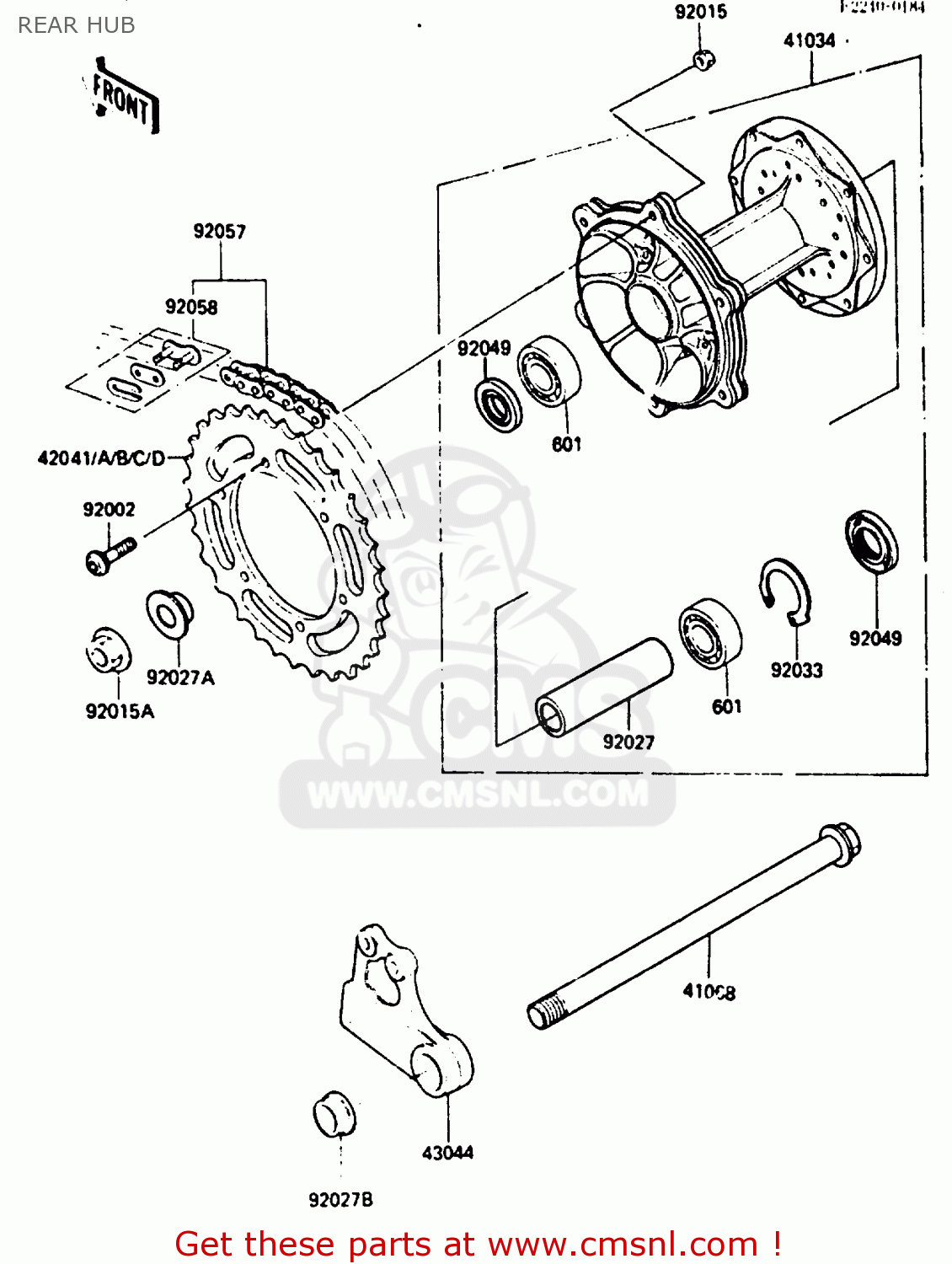

Rear hub diagram KX250-D2 1986 EUROPE UK AL
REAR HUB KX250-D2 1986 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
41034
410341139
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 434.00
41068
410681180
ref: 41068
AXLE,RR
€ 101.00
42041
420411093
ref: 42041
(OPTION)
SPROCKET-HUB,50T
€ 78.50
42041A
420411103
ref: 42041A
SPROCKET-HUB,48T
€ 87.50
42041B
420411105
ref: 42041B
(OPTION)
SPROCKET-HUB,49T
€ 75.00
42041C
420411193
ref: 42041C
(OPTION)
SPROCKET-HUB,46T,AL
€ 105.00
42041D
420411194
ref: 42041D
(OPTION)
SPROCKET-HUB,47T,AL
€ 75.00
43044
430441061
ref: 43044
HOLDER-COMP-CALIPER
€ 73.50
92002
920021387
ref: 92002
BOLT,8MM
€ 4.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151461
ref: 92015A
NUT,20MM
€ 17.50
92027
920271942
ref: 92027
COLLAR,20.2X25.4X120
€ 33.50
92027A
920271943
ref: 92027A
COLLAR,L=18
€ 21.00
92027B
920271944
ref: 92027B
COLLAR,L=13
€ 11.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491205
ref: 92049
SEAL-OIL,BJN 30374
€ 12.00
92057
920571202
ref: 92057
CHAIN,DRIVE,DID520DS5
€ 57.50
92058
920581013
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
601
601B6004U
ref: 601
BEARING-BALL,#6004UC3
€ 27.50
