CRANKCASE
KX250-D2 1986 EUROPE UK AL

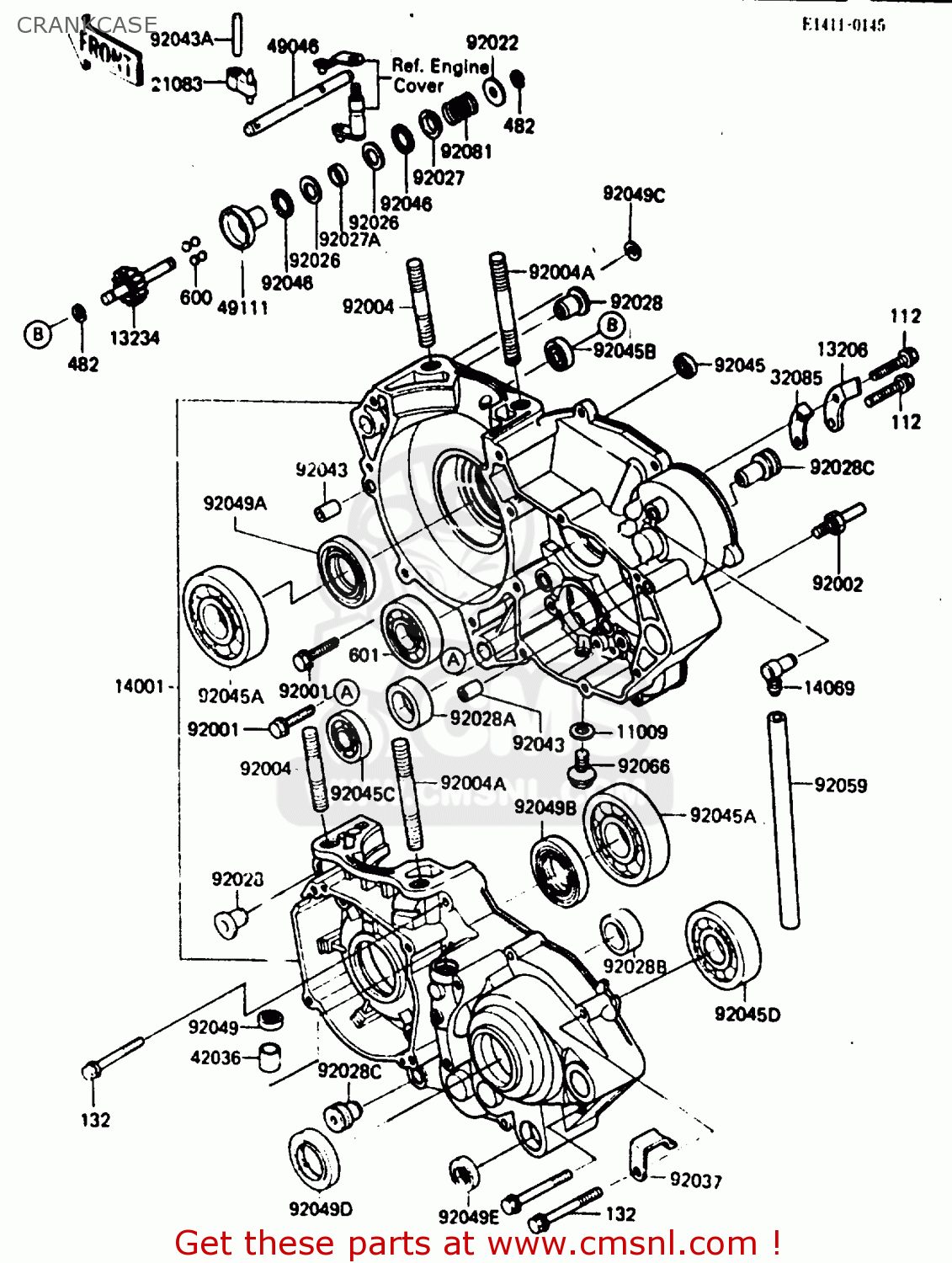

Crankcase diagram KX250-D2 1986 EUROPE UK AL
CRANKCASE KX250-D2 1986 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
13206
132061052
ref: 13206
GUIDE-KICK
€ 7.50
13234
132341061
ref: 13234
SHAFT-COMP,GOVERNOR
€ 61.00
14001
140015206
ref: 14001
SET-CRANKCASE
€ 656.00
14069
14069003
ref: 14069
BREATHER
€ 7.00
21082
210831058
ref: 21082
ARM
€ 64.50
32085
320851016
ref: 32085
STOPPER,KICKSTARTER
€ 5.50
42036
420361177
ref: 42036
SLEEVE,12X14X20
€ 12.00
49046
490461055
ref: 49046
ROD-GOVERNOR
€ 18.00
49111
491111051
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 44.00
92001
920011829
ref: 92001
BOLT,W/WASHER,6X14
€ 2.50
92002
920021601
ref: 92002
BOLT,8X15
€ 5.00
92004
920041063
ref: 92004
STUD,10X35
€ 3.50
92004A
920041065
ref: 92004A
STUD,10X45
€ 4.50
92022
920221634
ref: 92022
WASHER,8.3X28X1.6
€ 2.50
92026
920261438
ref: 92026
SPACER
€ 6.00
92027
920271036
ref: 92027
COLLAR,FRONT AXLE
€ 9.50
92027A
920271839
ref: 92027A
COLLAR,15.2X17X4
€ 8.50
92028
920281133
ref: 92028
BUSHING
€ 9.50
92028A
92028131
ref: 92028A
BUSHING
€ 28.00
92028B
92028132
ref: 92028B
BUSHING
€ 28.00
92028C
920281366
ref: 92028C
BUSHING
€ 15.50
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
920431258
ref: 92043A
PIN,4X32
€ 3.00
92045
920451010
ref: 92045
BEARING,BALL 626
€ 11.00
92045A
920451024
ref: 92045A
BEARING-BALL,#6305SH2
€ 45.50
92045B
920451048
ref: 92045B
BEARING-BALL,#608
€ 11.50
92045C
920451058
ref: 92045C
BEARING-BALL,6905Z
€ 36.50
92045D
920451115
ref: 92045D
BEARING-BALL,6205
€ 23.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92049
92049004
ref: 92049
OIL SEAL SB12205
€ 6.00
92049A
920491051
ref: 92049A
OIL SEAL,TCJ25457
€ 22.50
92049B
920491052
ref: 92049B
OIL SEAL,TCJ20407
€ 19.50
92049C
920491207
ref: 92049C
SEAL-OIL,SDO8144
€ 6.50
92049D
92050033
ref: 92049D
SEAL-OIL,TB3040
€ 14.00
92049E
92051005A
ref: 92049E
OIL SEAL,TB13225.5
€ 5.50
92059
92059061
ref: 92059
PIPE-BREATHER
€ 3.00
92066
920661241
ref: 92066
PLUG
€ 4.00
92081
920811934
ref: 92081
SPRING,GOVERNOR
€ 4.00
