FENDER

KX250-D2 1986 EUROPE UK AL

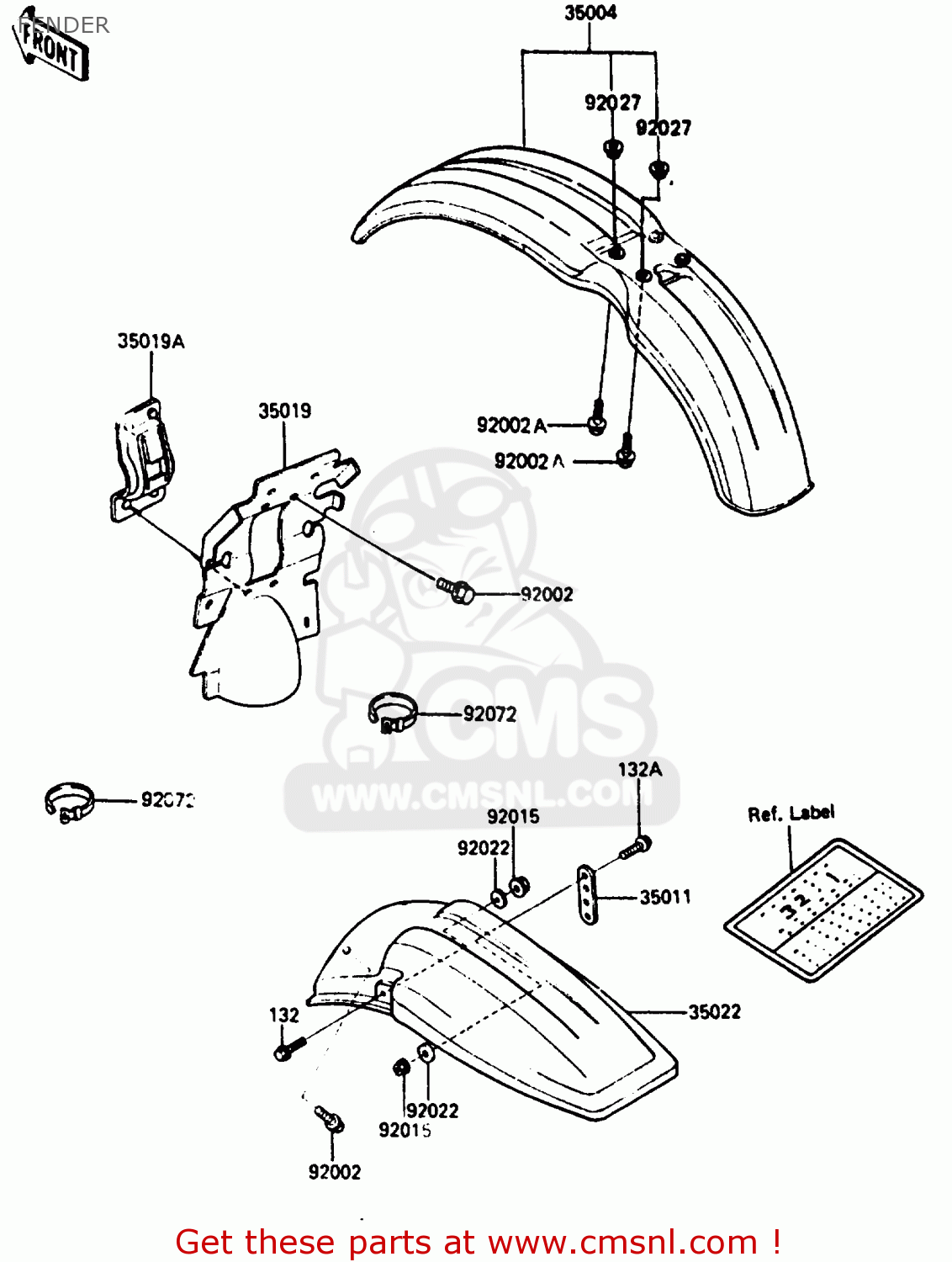

Fender diagram KX250-D2 1986 EUROPE UK AL

prices are in EUR

ref

part #

description

quantity

35004

3500411766W
ref: 35004

FENDER-FRONT,L.GREEN

€ 61.50

35011

350111261
ref: 35011

STAY,MUFFLER

€ 12.50

35019

350191129
ref: 35019

FLAP,REAR FENDER

€ 10.50

35019A

350191162
ref: 35019A

FLAP,AIR FILTER

€ 24.00

35022

3502212176W
ref: 35022

FENDER-COMP-REAR,L.GR

€ 39.00

92002

920021460
ref: 92002

BOLT,6X14

€ 3.00

92002A

920021461
ref: 92002A

BOLT,6X16

€ 3.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271936
ref: 92027

COLLAR,FRONT FENDER

€ 4.00

92072

92072056
ref: 92072

BAND,RUBBER

€ 3.00

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

132A

132G0635
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

FENDER

all assemblies
