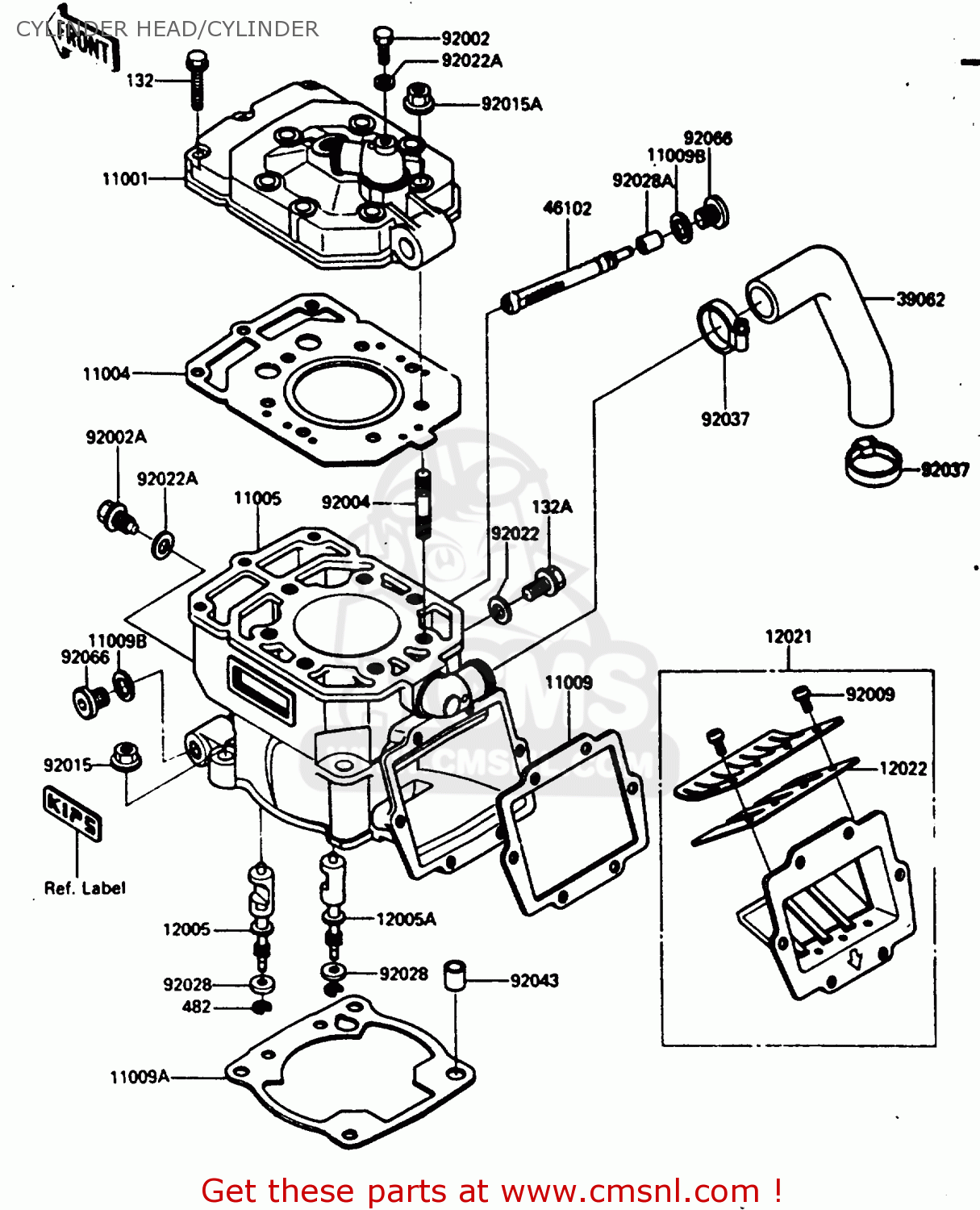

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

11001

110011216
ref: 11001

HEAD-CYLINDER

€ 121.00

11004

110041126
ref: 11004

GASKET-HEAD,CYLINDER (MCA)

€ 30.00

11005

110051471
ref: 11005

CYLINDER-ENGINE

€ 688.00

11009

110091252
ref: 11009

GASKET,REED VALVE (MCA)

€ 7.50

11009A

110091546
ref: 11009A

GASKET,CYLINDER BASE (MCA)

€ 8.00

11009B

92063073
ref: 11009B

JET-MAIN,#107.5R

€ 9.50

12005

120051069
ref: 12005

VALVE-EXHAUST,LH

€ 33.50

12005A

120051070
ref: 12005A

VALVE-EXHAUST,RH

€ 46.00

12021

120211061
ref: 12021

VALVE-ASSY-REED

€ 153.50

12022

120221056
ref: 12022

VALVE-REED,CARBON

€ 34.00

39062

390621105
ref: 39062

HOSE-COOLING

€ 8.00

46102

461021156
ref: 46102

ROD,GOVERNOR

€ 36.50

92002

920221222
ref: 92002

WASHER,PLAIN

€ 2.50

92002A

920021357
ref: 92002A

BOLT

€ 3.00

92004

920041139
ref: 92004

STUD,8X40

€ 3.00

92009

920091371
ref: 92009

SCREW,3X6

€ 2.50

92015

92015077
ref: 92015

NUT, 10MM

€ 3.00

92015A

920151143
ref: 92015A

NUT,8MM

€ 0.50

92022

920221488
ref: 92022

WASHER,8.2X14X1

€ 3.00

92022A

92022304
ref: 92022A

WASHER,PLAIN

€ 2.50

92028

920281389
ref: 92028

BUSHING,6X18X5

€ 6.00

92028A

920281413
ref: 92028A

BUSHING,5.6X10X14

€ 6.50

92037

920371389
ref: 92037

CLAMP,METER CABLE,UPP

€ 5.50

92043

92042028
ref: 92043

PIN-DOWEL

€ 1.00

92066

920661222
ref: 92066

PLUG,12X10

€ 8.00

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132G0810
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

482

482J5000
ref: 482

CIRCLIP-TYPE-E,5MM

€ 0.50

all assemblies
