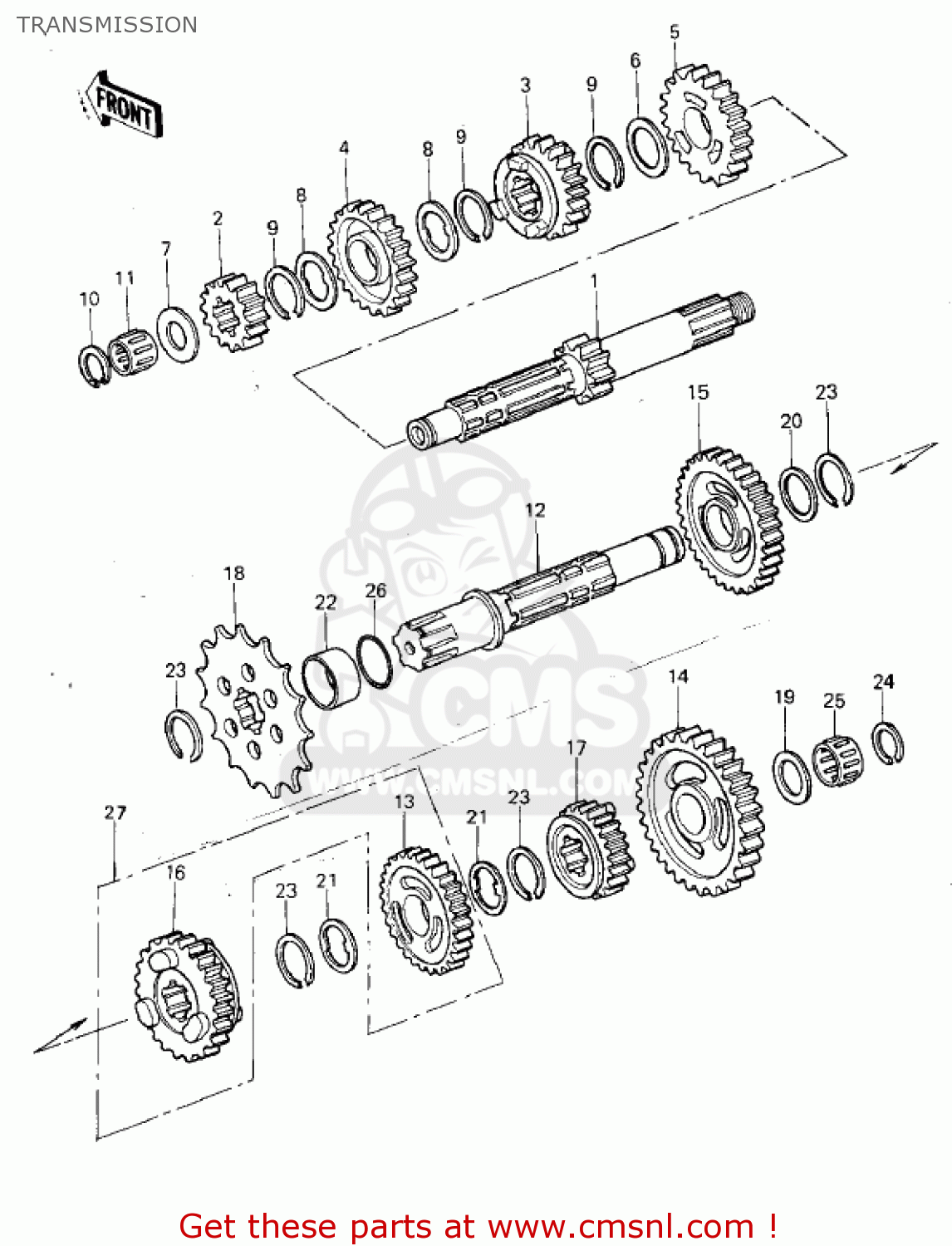

TRANSMISSION

ref

part #

description

quantity

1

131271022
ref: 1

SHAFT,DRIVE

€ 92.00

2

131291156
ref: 2

2ND GEAR,DRIVE,16T

€ 43.50

3

131291956
ref: 3

GEAR,INPUT 3RD,18T

€ 50.00

4

131291205
ref: 4

4TH GEAR,DRIVE,25T

€ 72.00

5

131291206
ref: 5

GEAR,INPUT TOP,24T

€ 88.50

6

92022198
ref: 6

WASHER-PLAIN

€ 3.50

7

92022281
ref: 7

WASHER,PLAIN

€ 4.00

8

92024039
ref: 8

WASHER-LOCK

€ 4.00

9

92033025
ref: 9

CIRCLIP,25MM

€ 3.00

10

92033032
ref: 10

CIRCLIP

€ 3.00

11

920461184
ref: 11

BEARING-NEEDLE

€ 20.00

12

131281025
ref: 12

SHAFT,OUTPUT

€ 102.00

13

131015031
ref: 13
KX250-A6

GEAR-ASSY,OUTPUT

€ 148.00

13

131291272
ref: 13
KX250-A7

3RD GEAR,OUTPUT,25T

€ 67.50

14

131291160
ref: 14

GEAR,OUTPUT LOW,32T

€ 89.00

15

131291161
ref: 15

2ND GEAR,OUTPUT,27T

€ 111.00

16

131015031
ref: 16
KX250-A6

GEAR-ASSY,OUTPUT

€ 148.00

16

131291273
ref: 16
KX250-A7

4TH GEAR,OUTPUT,29T

€ 114.00

17

131291164
ref: 17

GEAR,OUTPUT TOP,24T

€ 88.50

18

131441006
ref: 18

SPROCKET-OUTPUT,14T

€ 24.00

19

92022112
ref: 19

WASHER,20.5X30X1,STEE

€ 6.00

20

92022159
ref: 20

WASHER-THRUST,25MM

€ 5.50

21

92024038
ref: 21

WASHER-LOCK

€ 4.00

22

92027163
ref: 22

COLLAR,25X30X10.1

€ 13.00

23

92033026
ref: 23

CIRCLIP

€ 6.00

24

92033029
ref: 24

CIRCLIP,18MM

€ 6.50

25

920461170
ref: 25

BEARING-NEEDLE,KT2026

€ 9.00

26

92055035
ref: 26

O RING

€ 3.00

27

131015031
ref: 27
INCL. 13129-1272 AND

GEAR-ASSY,OUTPUT

€ 148.00

27

131015031
ref: 27
INCL. 13129-1272 AND

GEAR-ASSY,OUTPUT

€ 148.00

all assemblies
