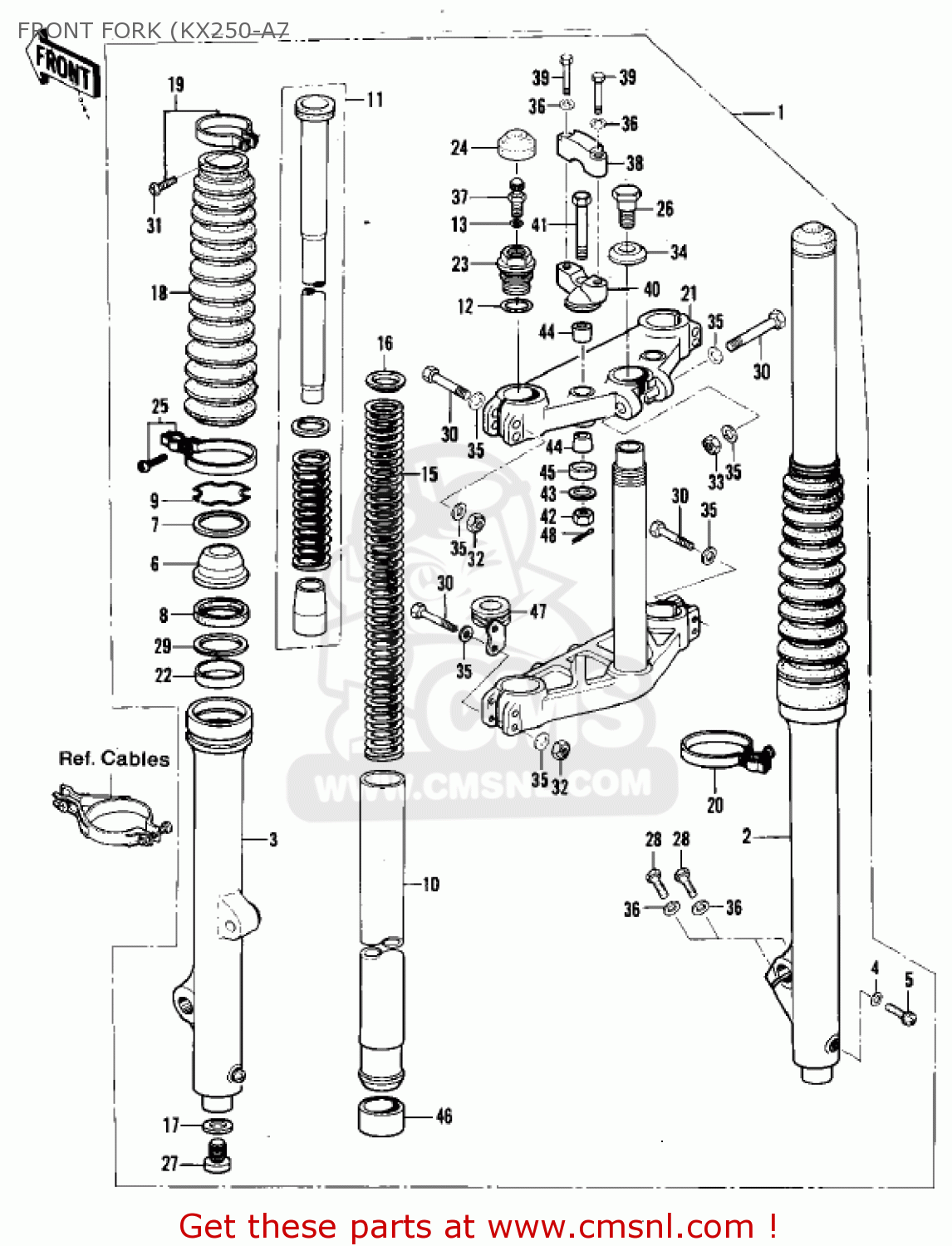

FRONT FORK (KX250-A7

ref

part #

description

quantity

1

440011272
ref: 1
U.S. & CANADA, W/O R

FRONT FORK

€ 819.00

1

440011255
ref: 1
EXPORT, W/REF. 47

FRONT FORK

€ 1,123.50

2

440061064
ref: 2

TUBE-RH OUTER FORK

€ 159.50

3

440051064
ref: 3

TUBE-LH OUTER FORK

€ 176.50

4

44045002
ref: 4

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

5

220B0408
ref: 5

SCREW-PAN-CROS

€ 0.50

6

920931035
ref: 6

DUST SHIELD,FORK OUTR

€ 10.50

7

320991013
ref: 7

CASE,DUST SHIELD

€ 3.50

8

920491042
ref: 8

OIL SEAL,FORK OUTE TU

€ 13.50

9

920331047
ref: 9

SNAP RING,FORK OUTER

€ 4.00

10

440131053
ref: 10

PIPE-FORK INNER

€ 196.00

11

440221052
ref: 11

CYLINDER ASSY,FORK

€ 51.50

12

920551050
ref: 12

RING-O,FORK TOP CAP

€ 4.00

13

920551018
ref: 13

RING-O,AIR VALVE

€ 2.50

14

440371065
ref: 14

STEM,STEERING

€ 283.00

15

440261042
ref: 15

SPRING,FORK INNER

€ 28.50

16

440281003
ref: 16

GUIDE-FORK SPRING

€ 7.50

17

110091127
ref: 17

GASKET,FORK CYLID BOL (NAS)

€ 3.00

18

490061058
ref: 18

BOOT,FORK,LIME GREEN

€ 35.50

19

920721046
ref: 19

BAND,BOOT

€ 6.50

20

920721025
ref: 20

CLAMP,BOOT,R.H

€ 6.00

21

440391040
ref: 21

BRACKET-UPPER

€ 133.50

22

440651091
ref: 22

BUSHING-FRONT FORK,OU

€ 17.00

23

440291008
ref: 23

CAP,FORK TOP

€ 38.50

24

440291009
ref: 24

SEAT-FORK SPRING

€ 4.00

25

920721026
ref: 25

CLAMP,BOOT,L.H

€ 8.50

26

44041065
ref: 26

BOLT,FORK TOP

€ 18.50

27

920011309
ref: 27

BOLT,FORK CYLINDER

€ 4.50

28

115G0825
ref: 28

BOLT-HEX,HEAD,8X25

€ 3.00

29

920221262
ref: 29

WASHER,FORK OUTER PIP

€ 5.50

30

920011398
ref: 30

BOLT,FLANGED 8X55

€ 2.50

31

220B0420
ref: 31

SCREW-PAN-CROS

€ 2.00

32

311G0800
ref: 32

NUT-HEX,8MM

€ 2.50

33

920151124
ref: 33

NUT,LOCK,8MM

€ 3.50

34

44043052
ref: 34

WASHER,PLAIN

€ 6.00

35

410B0800
ref: 35

WASHER-PLAIN-SMALL,8M

€ 0.50

36

461F0800
ref: 36

WASHER-SPRING,8MM

€ 0.50

37

161261003
ref: 37

VALVE,AIR

€ 22.50

38

460121014
ref: 38

HOLDER-HANDLE

€ 8.50

39

115G0835
ref: 39

BOLT HEX,HEAD,8X35

€ 3.00

40

460121012
ref: 40

HOLDER-HANDLE

€ 18.00

41

920011436
ref: 41

BOLT

€ 6.00

42

920151142
ref: 42

NUT

€ 3.00

43

920221262
ref: 43

WASHER,FORK OUTER PIP

€ 5.50

44

920751307
ref: 44

DAMPER RUBBER

€ 3.00

45

110121165
ref: 45

COVER-DAMPER RUBBER

€ 0.50

46

920281126
ref: 46

BUSHING-FRONT FORK,IN

€ 31.50

47

920721027
ref: 47
EXPORT, SEE NUMBER P

BAND,CABLE

€ 12.50

4

550D2020
ref: 4

PIN-COTTER,2.0X20

€ 0.50
