SWING ARM (KX250-A6)

KX250-A7 KX250 1981 USA CANADA EXPORT

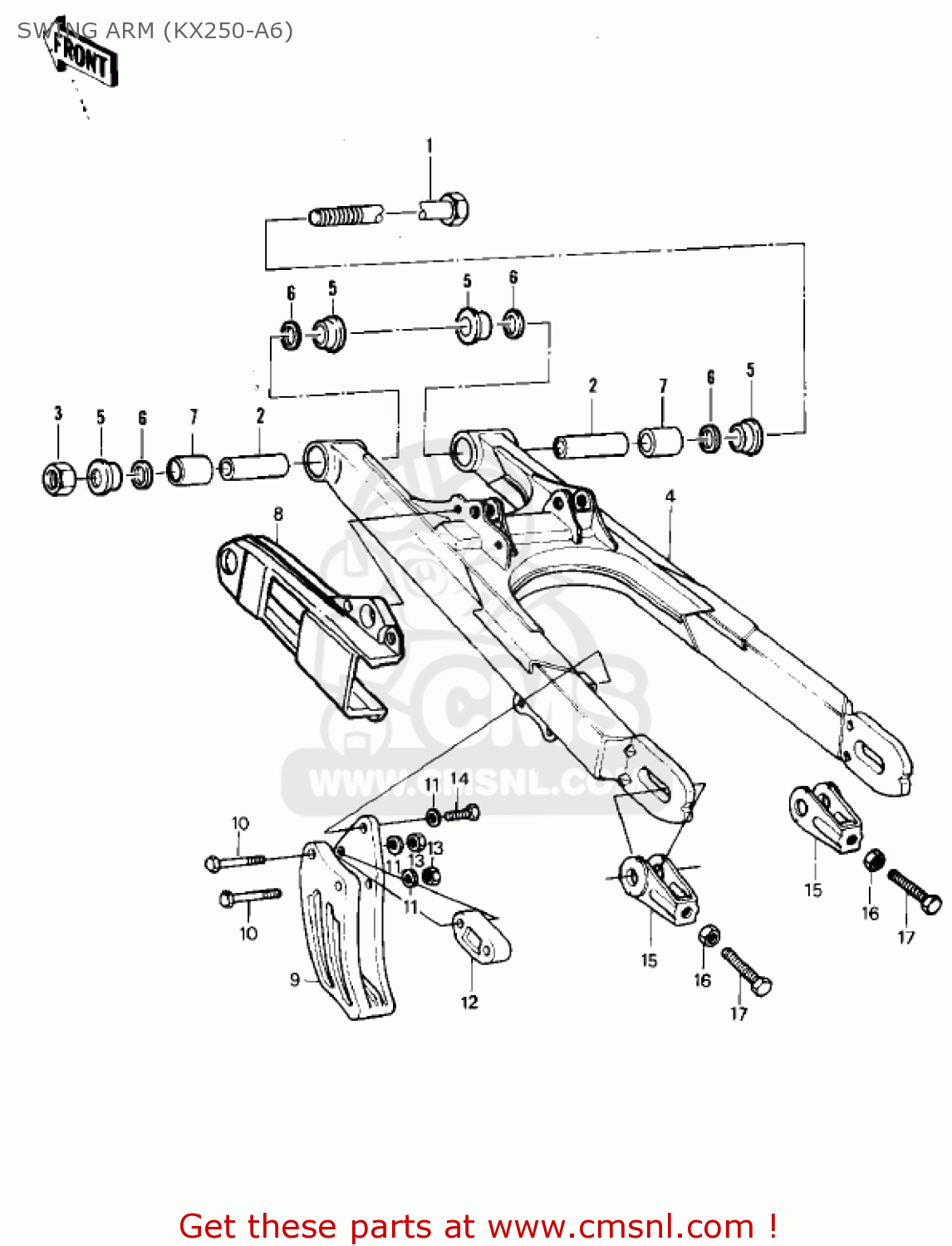

Swing arm (kx250-a6) diagram KX250-A7 KX250 1981 USA CANADA EXPORT

prices are in EUR

ref

part #

description

quantity

330321020
ref: 1

SHAFT-SWING ARM

€ 64.50

420361031
ref: 2

SLEEVE,SWING ARM

€ 33.50

92019011
ref: 3

NUT,LOCK,14MM

€ 6.00

330011043
ref: 4
BOX SECTION

ARM,SWING

€ 331.00

110121099
ref: 5

CAP,SWING ARM

€ 14.50

920251116
ref: 6

SHIM,20X26.6X0.5

€ 2.50

920281072
ref: 7

BUSHING

€ 20.50

120531046
ref: 8

GUIDE-CHAIN,FR

€ 57.50

550201038
ref: 9

GUARD,CHAIN

€ 24.50

112G0660
ref: 10

BOLT-UPSET

€ 3.00

92022125
ref: 11

WASHER,6.5X20X1.6

€ 1.00

120531039
ref: 12

GUIDE-CHAIN,RR,UPP

€ 10.50

92019008
ref: 13

NUT-LOCK,6MM

€ 3.00

112G0620
ref: 14

BOLT 6X20

€ 1.00

330401012
ref: 15

ADJUSTER-CHAIN

€ 25.00

312G0800
ref: 16

NUT,8MM

€ 2.00

920011027
ref: 17

BOLT,CHAIN ADJUSTER

€ 9.50
