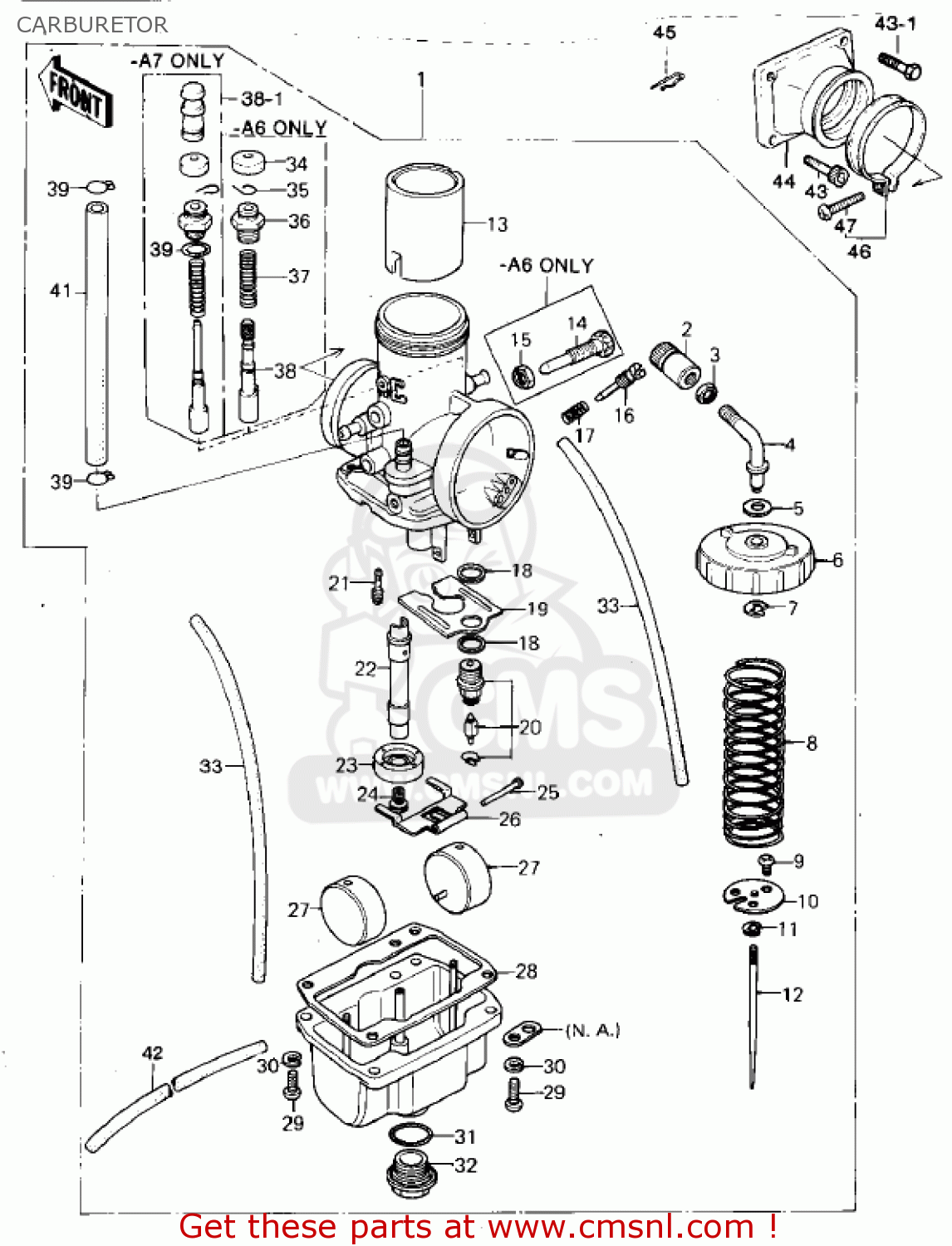

CARBURETOR

ref

part #

description

quantity

1

160011238
ref: 1
VM38SS

CARBURETOR ASSY

€ 298.00

1

160011338
ref: 1
VM38SS

CARBURETOR ASSY

€ 295.50

2

160021006
ref: 2

ADJUSTER-CABLE

€ 6.50

3

16003004
ref: 3

NUT-CABLE ADJUST LOCK

€ 4.50

4

130701014
ref: 4

GUIDE,CABLE

€ 24.50

5

110091191
ref: 5

GASKET,CABLE GUIDE (NAS)

€ 4.50

6

160041010
ref: 6

TOP,MIXING CHAMBER

€ 26.50

7

16008011
ref: 7

CLAMP,CABLE GUIDE

€ 4.50

8

16006016
ref: 8

SPRING-THROTTLE VALVE

€ 12.50

9

920091037
ref: 9

SCREW,4X5

€ 2.50

10

160071007
ref: 10

SEAT-SPRING,THROTTLE

€ 6.50

11

16008010
ref: 11

CLAMP,E-TYPE

€ 5.00

12

160091033
ref: 12

NEEDLE-JET,6F28

€ 28.00

13

160251027
ref: 13

VALVE,THROTTLE,CA2.5

€ 79.00

13

160251053
ref: 13

VALVE,THROTTLE,CA,3.0

€ 73.00

14

160211030
ref: 14

SCREW-THROTTLE STOP

€ 13.00

15

16003006
ref: 15

NUT-CABLE ADJUST LOCK

€ 4.50

16

16014006
ref: 16

SCREW-PILOT AIR

€ 9.00

17

16022007
ref: 17

SPRING-THR STOP SCREW

€ 5.50

18

110091076
ref: 18

GASKET,FLOAT VALVE (NAS)

€ 2.00

19

16038019
ref: 19

PLATE,FLOAT CHAMBER

€ 12.00

20

16030020
ref: 20

VALVE-FLOAT

€ 42.00

21

920641005
ref: 21

JET-PILOT,#50

€ 10.50

21

92064022
ref: 21

PILOT JET #30 ISO

€ 11.50

22

160171036
ref: 22

NEEDLE JET,R-2

€ 24.00

22

160171080
ref: 22

NEEDLE JET,R-4

€ 24.50

23

160651015
ref: 23

HOLDER,NEEDLE JET

€ 30.50

23

160651052
ref: 23

HOLDER-CARBURETOR,NEE

€ 15.50

24

920631027
ref: 24
STD KX250-A6

MAIN JET,#172.5R

€ 8.00

24

920631027
ref: 24
STD KX250-A6

MAIN JET,#172.5R

€ 8.00

24

920631020
ref: 24

MAIN JET,#165R

€ 7.50

24

920631021
ref: 24

MAIN JET,#167.5R

€ 7.00

24

920631022
ref: 24
STD KX250-A7

JET-MAIN,#170R

€ 11.50

24

920631022
ref: 24
STD KX250-A7

JET-MAIN,#170R

€ 11.50

24

920631039
ref: 24

JET-MAIN,#175R

€ 12.50

24

920631040
ref: 24

MAIN JET,#177.5R

€ 6.00

25

16032008
ref: 25

PIN,FLOAT

€ 4.00

26

16055009
ref: 26

ARM-FLOAT

€ 12.50

27

16031029
ref: 27

FLOAT

€ 40.00

28

16019028
ref: 28

GASKET,FLOAT CHAMBER (NAS)

€ 11.50

29

220B0516A
ref: 29

SCREW-PAN HEAD,5X16

€ 2.50

30

461F0500
ref: 30

WASHER-SPRING,5MM

€ 0.50

31

16038009
ref: 31

GASKET,MAIN JET COVER

€ 5.50

32

16049006
ref: 32

COVER-MAIN JET

€ 10.50

33

920591142
ref: 33

TUBE,3.5X6.5X410

€ 16.50

34

16036013
ref: 34

CAP,STARTER PLUNGER

€ 5.50

35

920371077
ref: 35

CLAMP

€ 3.00

36

16012021
ref: 36

CAP-STARTER PLUNGER

€ 11.50

37

16013011
ref: 37

SPRING,STARTER PLUNGR

€ 6.00

38

16016013
ref: 38

PLUNGER ASSY,STARTER

€ 28.50

38-1

160161026
ref: 38-1

PLUNGER,STARTER

€ 40.50

39

670B1509
ref: 39

O RING,9MM

€ 1.00

40

92037056
ref: 40

CLAMP,FUEL TUBE

€ 3.00

41

920591026
ref: 41

HOSE,FUEL,6.5OX11.5O

€ 14.50

42

920591017
ref: 42

HOSE,OVERFLOW

€ 18.00

43

120Q0625
ref: 43

BOLT,6X25

€ 1.00

43-1

130G0620
ref: 43-1

BOLT,FLANGED,6X20

€ 2.50

44

160651029
ref: 44

HOLDER-CARBURETOR

€ 63.00

45

92036018
ref: 45

CIRCLIP

€ 2.50

46

92037116
ref: 46

CLAMP

€ 10.50

47

220B0535
ref: 47

SCREW-PAN-CROS

€ 2.00
