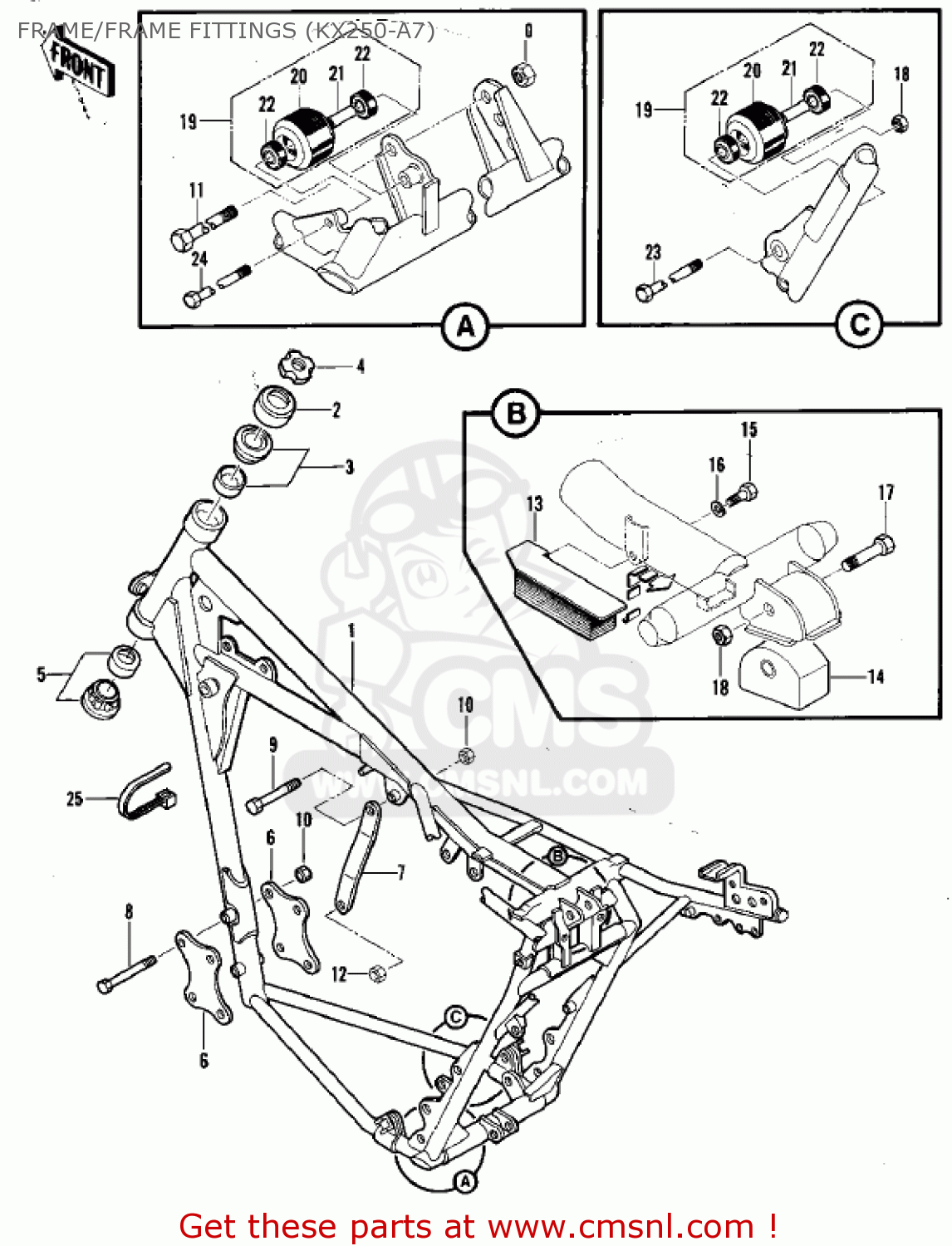

FRAME/FRAME FITTINGS (KX250-A7)

ref

part #

description

quantity

1

320021231
ref: 1

FRAME

€ 941.50

2

46098015
ref: 2

CAP,STEERING STEM

€ 3.50

3

92047017
ref: 3
UPPER

CONE,STRNG,STEM

€ 49.50

4

920151546
ref: 4

NUT,25MM,T=12

€ 14.50

5

921161008
ref: 5
LOWER

BEARING-ROLLER,LWR,32

€ 78.00

6

320291112
ref: 6

BRACKET,ENGINE

€ 14.00

7

320294016
ref: 7

BRACKET,ENGINE

€ 16.00

8

920011033
ref: 8

BOLT,HEX HEAD,10X66.5

€ 5.50

9

920011412
ref: 9

BOLT

€ 6.00

10

92019021
ref: 10

NUT,LOCK,10M/M

€ 2.00

11

920014001
ref: 11

BOLT,HEX HEAD,10X127

€ 6.00

12

920151415
ref: 12

NUT,10MM

€ 3.00

13

920751249
ref: 13

DAMPER,RR SHCK ABSRBR

€ 10.50

14

920754025
ref: 14

DAMPER

€ 29.00

15

114G0812
ref: 15

BOLT-SMALL,8X12

€ 2.00

16

461F0800
ref: 16

WASHER-SPRING,8MM

€ 0.50

17

115G0840
ref: 17

115G0840

18

920151124
ref: 18

NUT,LOCK,8MM

€ 3.50

19

921221013
ref: 19

ROLLER,ASSY

€ 58.50

20

921221014
ref: 20

ROLLER

€ 9.50

21

920271081
ref: 21

COLLAR

€ 6.50

22

920451009
ref: 22

BEARING-BALL,608LLU/2

€ 34.50

23

115G0855
ref: 23

BOLT-SMALL-UPSET,8X55

€ 4.50

24

114B0870
ref: 24

BOLT-HEX HEAD,8X70

€ 3.00

25

920723509
ref: 25

BAND,RUBBER

€ 2.00
