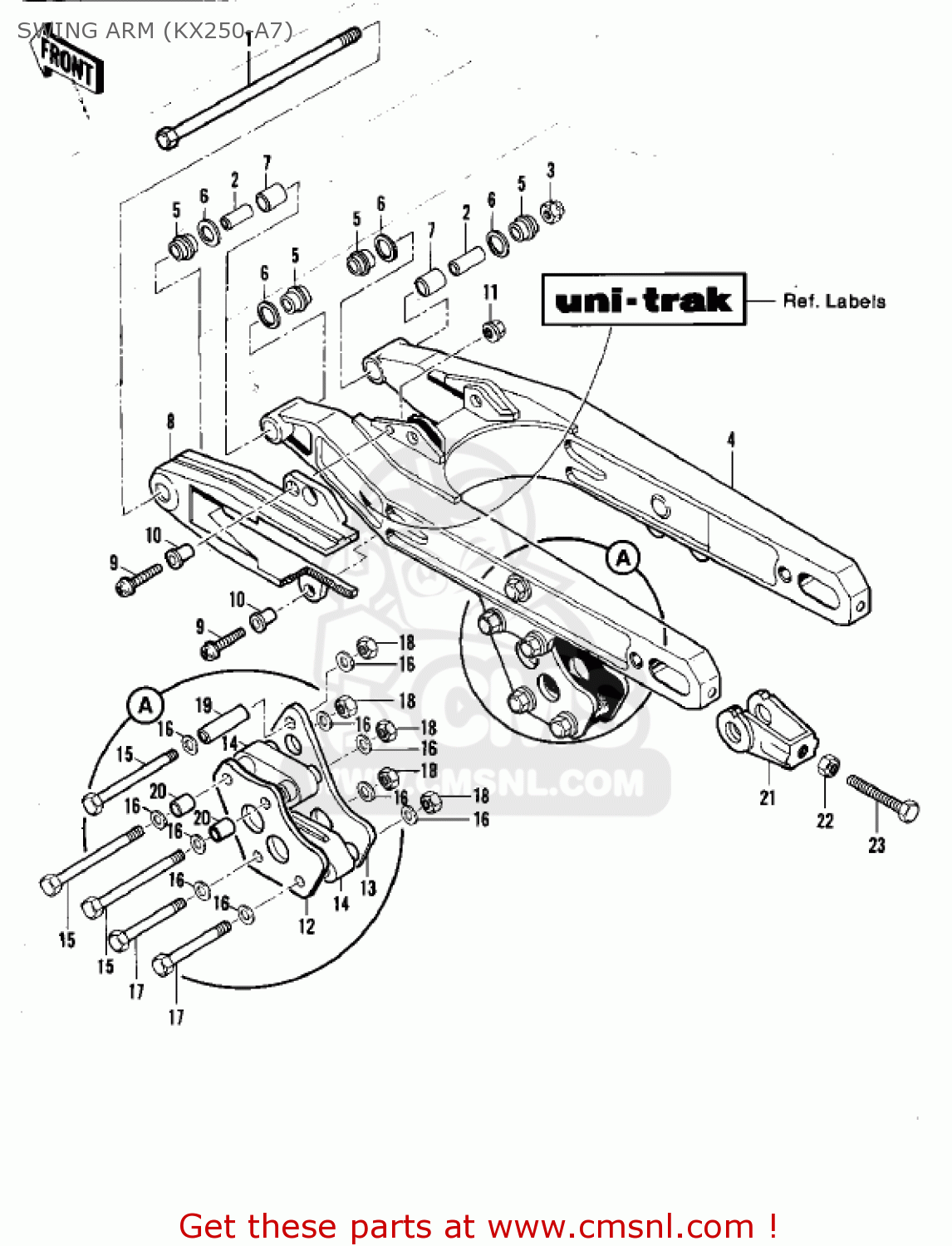

SWING ARM (KX250-A7)

ref

part #

description

quantity

1

330321020
ref: 1

SHAFT-SWING ARM

€ 64.50

2

420361031
ref: 2

SLEEVE,SWING ARM

€ 33.50

3

92019011
ref: 3

NUT,LOCK,14MM

€ 6.00

4

330014003
ref: 4
FORGED

ARM-COMP,SWING

€ 331.00

5

110121099
ref: 5

CAP,SWING ARM

€ 14.50

6

920251116
ref: 6

SHIM,20X26.6X0.5

€ 2.50

7

920281072
ref: 7

BUSHING

€ 20.50

8

120534001
ref: 8

GUIDE,CHAIN

€ 39.50

9

920091289
ref: 9

SCREW,6X20

€ 2.50

10

920271260
ref: 10

COLLAR

€ 4.00

11

920151078
ref: 11

NUT,6M/M

€ 1.50

12

550204009
ref: 12

GUARD,CHAIN

€ 15.50

13

550204010
ref: 13

GUARD,CHAIN

€ 15.50

14

120531015
ref: 14

GUIDE-CHAIN

€ 22.00

15

112G0660
ref: 15

BOLT-UPSET

€ 3.00

16

411B0600
ref: 16

WASHER-PLAIN,6MM

€ 0.50

17

112G0645
ref: 17

BOLT-UPSET

€ 0.50

18

92019008
ref: 18

NUT-LOCK,6MM

€ 3.00

19

920274016
ref: 19

COLLAR

€ 3.00

20

920274017
ref: 20

COLLAR

€ 1.50

21

330404004
ref: 21

ADJUSTER-CHAIN

€ 24.00

22

318G0800
ref: 22

NUT-HEX-SMALL,8MM

€ 1.00

23

920011027
ref: 23

BOLT,CHAIN ADJUSTER

€ 9.50
