TRANSMISSION
KX125-E2 1987 EUROPE UK AL

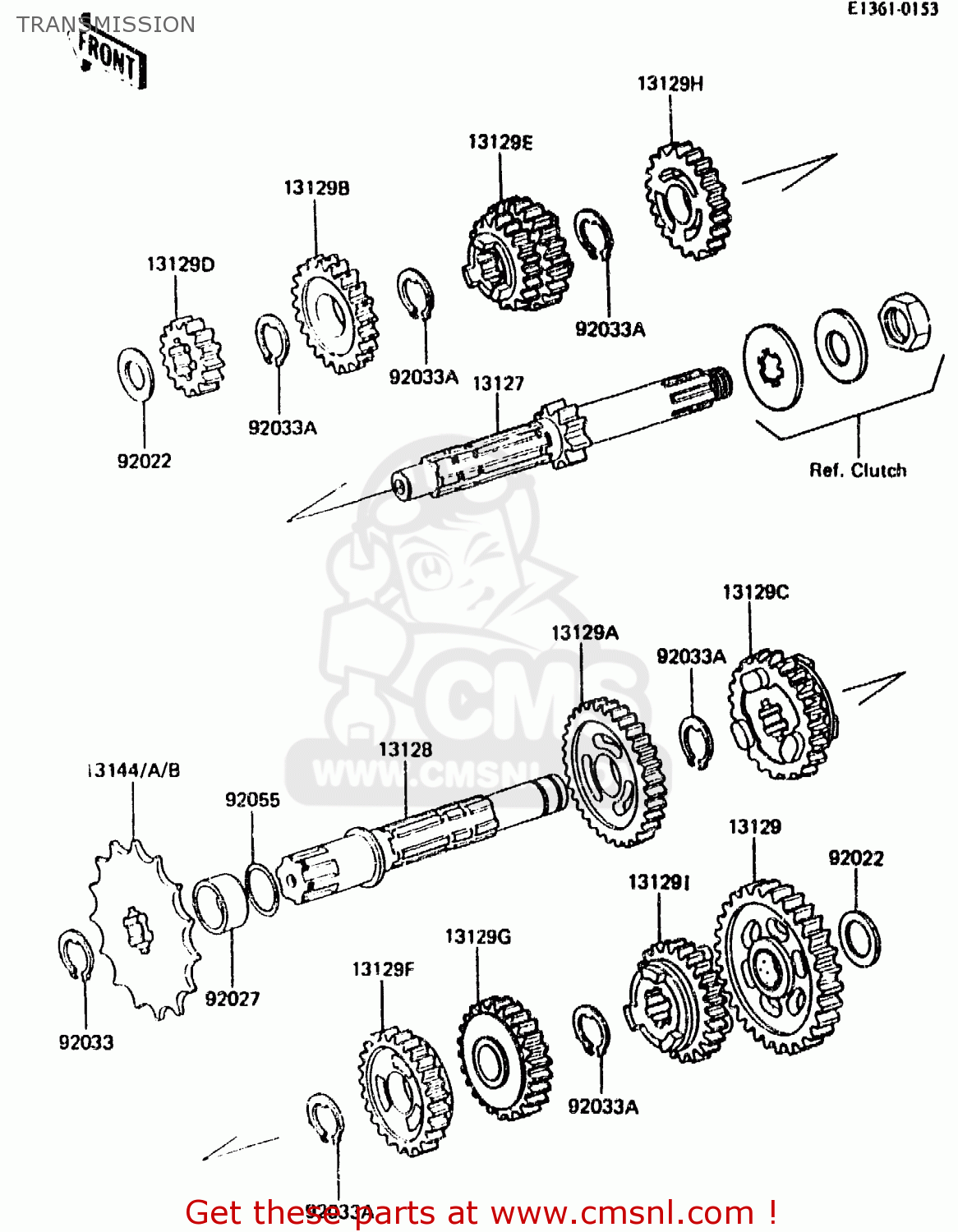

Transmission diagram KX125-E2 1987 EUROPE UK AL
TRANSMISSION KX125-E2 1987 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
13127
131271116
ref: 13127
SHAFT-TRANSMISSION IN
€ 163.00
13128
131281115
ref: 13128
SHAFT-TRANSMISSION OU
€ 120.00
13129
131291304
ref: 13129
GEAR,OUTPUT,LOW,30T
€ 34.00
13129A
131291386
ref: 13129A
GEAR,OUTPUT 2ND,28T
€ 63.50
13129B
131291399
ref: 13129B
GEAR,INPUT 5TH,24T
€ 67.50
13129C
131291405
ref: 13129C
GEAR,OUTPUT 5TH,25T
€ 59.00
13129D
131291624
ref: 13129D
GEAR,INPUT 2ND,16T
€ 44.00
13129E
131291625
ref: 13129E
GEAR,INPUT 3RD&4TH,20
€ 74.50
13129F
131291627
ref: 13129F
GEAR,OUTPUT 3RD,28T
€ 69.00
13129G
131291628
ref: 13129G
GEAR,OUTPUT 4TH,26T
€ 65.50
13129H
131291831
ref: 13129H
GEAR,INPUT TOP,25T
€ 56.00
13129I
131291834
ref: 13129I
GEAR,OUTPUT TOP,23T
€ 43.50
13144
131441036
ref: 13144
(OPTION)
SPROCKET-OUTPUT,11T
€ 22.00
13144A
131441049
ref: 13144A
SPROCKET-OUTPUT,12T
€ 17.00
13144B
131441050
ref: 13144B
(OPTION)
SPROCKET-OUTPUT,13T
€ 18.00
92022
92022279
ref: 92022
WASHER,15.3X25X1
€ 7.00
92027
920271445
ref: 92027
COLLAR,20X25X10.8
€ 10.50
92033
920331079
ref: 92033
RING-SNAP,18MM
€ 2.50
92033A
920331231
ref: 92033A
RING-SNAP,20MM
€ 3.50
92055
92055022
ref: 92055
'O' RING
€ 4.00
