FUEL TANK

KX125-E2 1987 EUROPE UK AL

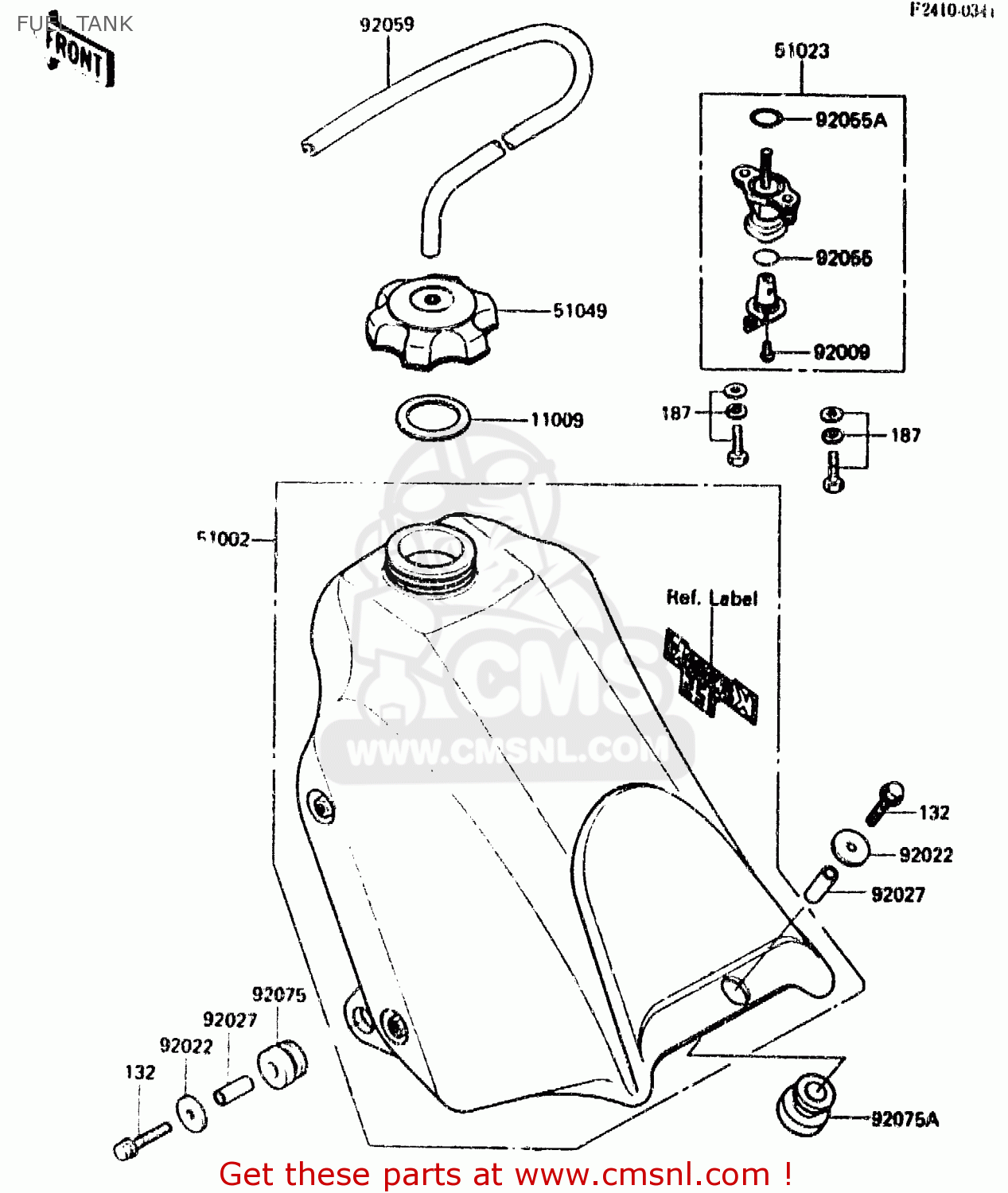

Fuel tank diagram KX125-E2 1987 EUROPE UK AL

prices are in EUR

ref

part #

description

quantity

11009

110091622
ref: 11009

GASKET,FUEL TANK CAP (NAS)

€ 4.00

51002

5100252686W
ref: 51002

TANK-COMP-FUEL,L.GREE

€ 261.00

51023

510231115
ref: 51023

TAP-ASSY,FUEL

€ 37.00

51049

510491075
ref: 51049

CAP-TANK,FUEL

€ 19.00

92009

920091386
ref: 92009

SCREW,3X8

€ 2.00

92022

920221690
ref: 92022

WASHER

€ 2.50

92027

920271966
ref: 92027

COLLAR,6.8X10X14

€ 3.00

92055

920551299
ref: 92055

RING-O

€ 1.00

92055A

920551300
ref: 92055A

RING-O,FUEL TAP PACKI

€ 5.00

92059

920591265
ref: 92059

TUBE,5X9X350

€ 7.00

92075

920751787
ref: 92075

DAMPER

€ 4.00

92075A

920751937
ref: 92075A

DAMPER

€ 3.50

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

187

187B0616
ref: 187

BOLT-UPSET-WSP

€ 0.50
