CRANKCASE
KX125-E2 1987 EUROPE UK AL

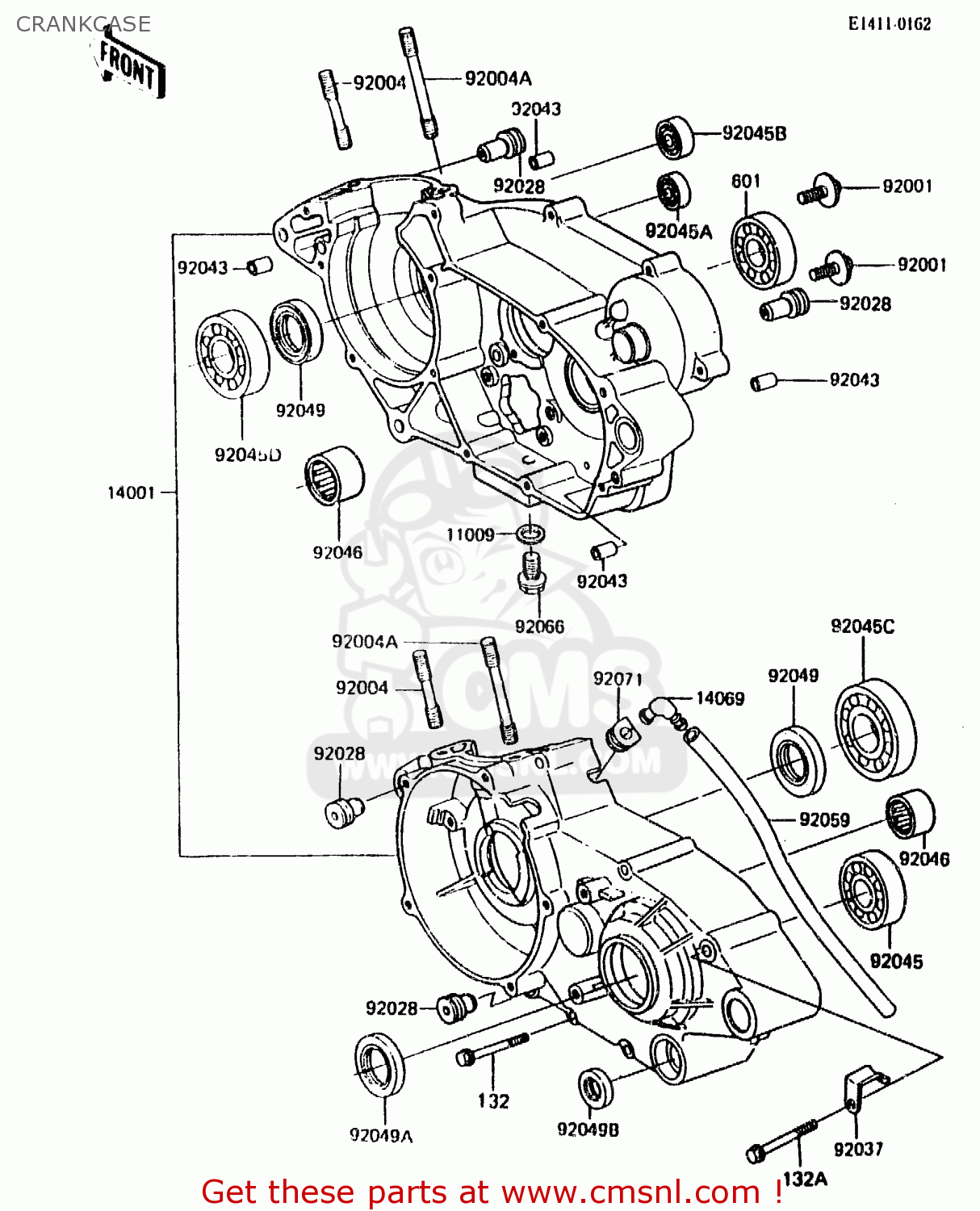

Crankcase diagram KX125-E2 1987 EUROPE UK AL
CRANKCASE KX125-E2 1987 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
14001
140015184
ref: 14001
SET-CRANKCASE
€ 647.00
14069
14069002
ref: 14069
BREATHER
€ 17.50
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92004
920041008
ref: 92004
STUD, 8X25
€ 3.50
92004A
920041132
ref: 92004A
STUD
€ 6.00
92028
920281366
ref: 92028
BUSHING
€ 15.50
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451007
ref: 92045
BEARING-BALL,6204SH2,
€ 21.00
92045A
920451010
ref: 92045A
BEARING,BALL 626
€ 11.00
92045B
920451048
ref: 92045B
BEARING-BALL,#608
€ 11.50
92045C
920451120
ref: 92045C
BEARING-BALL,6305JR2C
€ 34.00
92045D
920451134
ref: 92045D
BEARING-BALL,63/22T2C
€ 36.00
92046
920461058
ref: 92046
BEARING-NEEDLE,HMK151
€ 16.00
92049
920491052
ref: 92049
OIL SEAL,TCJ20407
€ 19.50
92049A
92050013
ref: 92049A
OIL SEAL SC25376
€ 9.50
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92059
920591074
ref: 92059
TUBE,6X9X280
€ 9.00
92066
920661241
ref: 92066
PLUG
€ 4.00
92071
92071042
ref: 92071
GROMMET
€ 2.50
132
132G0640
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132G0665
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
601
601B6303
ref: 601
BEARING-BALL,#6303C3
€ 24.00
