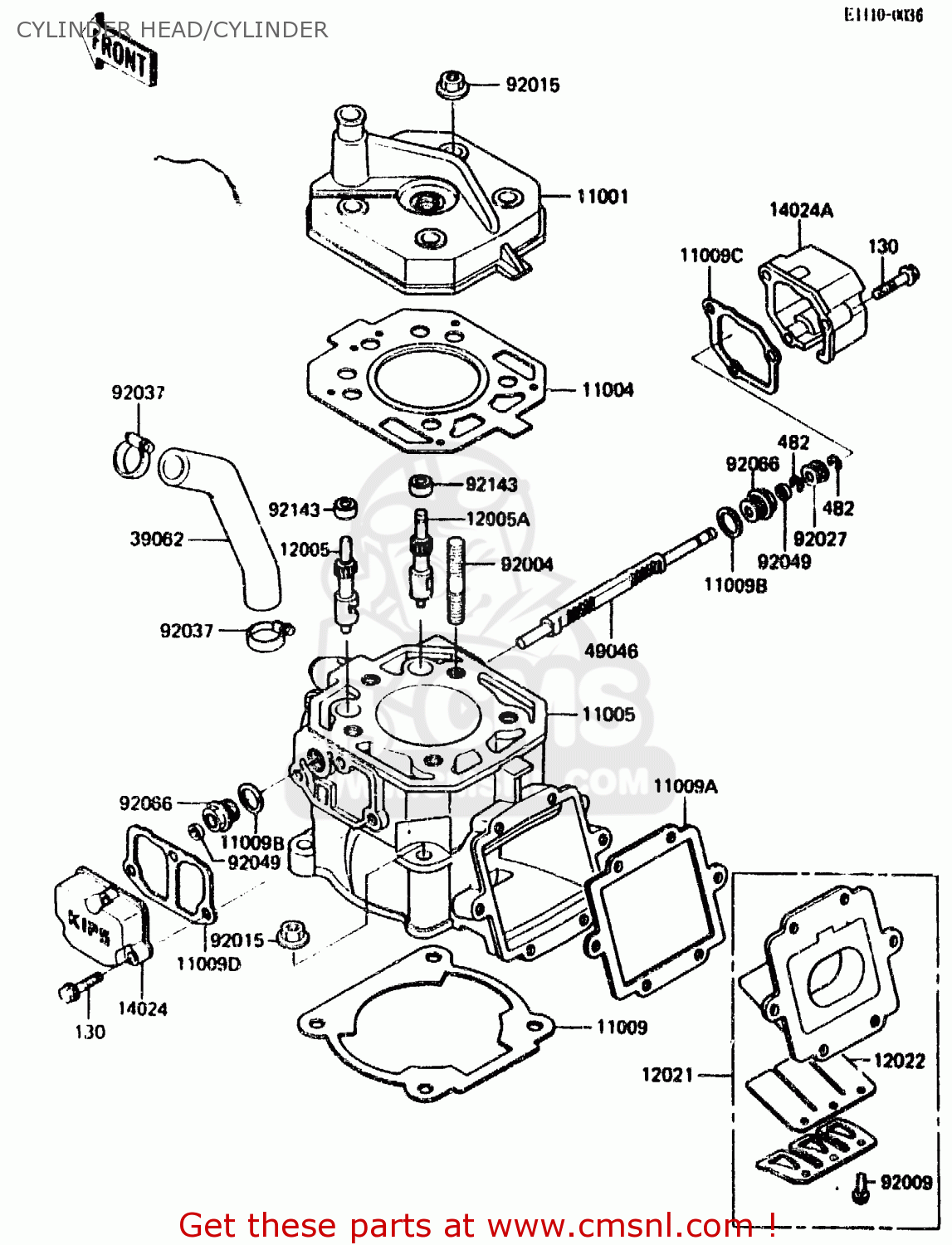

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

11001

110011244
ref: 11001

HEAD-CYLINDER

€ 96.00

11004

110041160
ref: 11004

GASKET-HEAD (MCA)

€ 23.50

11005

110051508
ref: 11005

CYLINDER-ENGINE

€ 493.00

11009

110091258
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 6.00

11009A

110091263
ref: 11009A

GASKET,REED VALVE (MCA)

€ 6.00

11009B

110091467
ref: 11009B

GASKET,16.2X22X1 (NAS)

€ 1.00

11009C

110091479
ref: 11009C

GASKET,RH,GOVERNOR (MCA)

€ 5.50

11009D

110091641
ref: 11009D

GASKET,LH,RESONATOR (MCA)

€ 4.00

12005

120051088
ref: 12005

VALVE-EXHAUST,LH

€ 48.50

12005A

120051089
ref: 12005A

VALVE-EXHAUST,RH

€ 55.00

12021

120211064
ref: 12021

VALVE-ASSY-REED

€ 148.00

12022

120221057
ref: 12022

VALVE-REED,CARBON

€ 37.00

14024

140241400
ref: 14024

COVER,LH,RESONATOR

€ 28.00

14024A

140251985
ref: 14024A

COVER,RH,GOVERNOR

€ 33.00

39062

390621205
ref: 39062

HOSE-COOLING,PUMP-CYL

€ 12.50

49046

490461059
ref: 49046

ROD-GOVERNOR

€ 56.50

92004

920041131
ref: 92004

STUD,8X45

€ 3.50

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92027

920271834
ref: 92027

COLLAR,GOVERNOR ROD

€ 11.50

92037

920371589
ref: 92037

CLAMP,COOLING HOSE

€ 13.00

92049

920491206
ref: 92049

SEAL-OIL,RSO-5.5 11 4

€ 7.50

92066

920661194
ref: 92066

PLUG,ROD

€ 11.50

92143

921431074
ref: 92143

COLLAR,EXHAUST VALVE

€ 4.50

130

130G0525
ref: 130

BOLT-FLANGED

€ 0.50

482

482K4000
ref: 482

CIRCLIP-TYPE-E,4MM

€ 0.50

all assemblies
