REAR SUSPENSION (KX125-B1)
KX125-B1 KX125 1982 USA CANADA

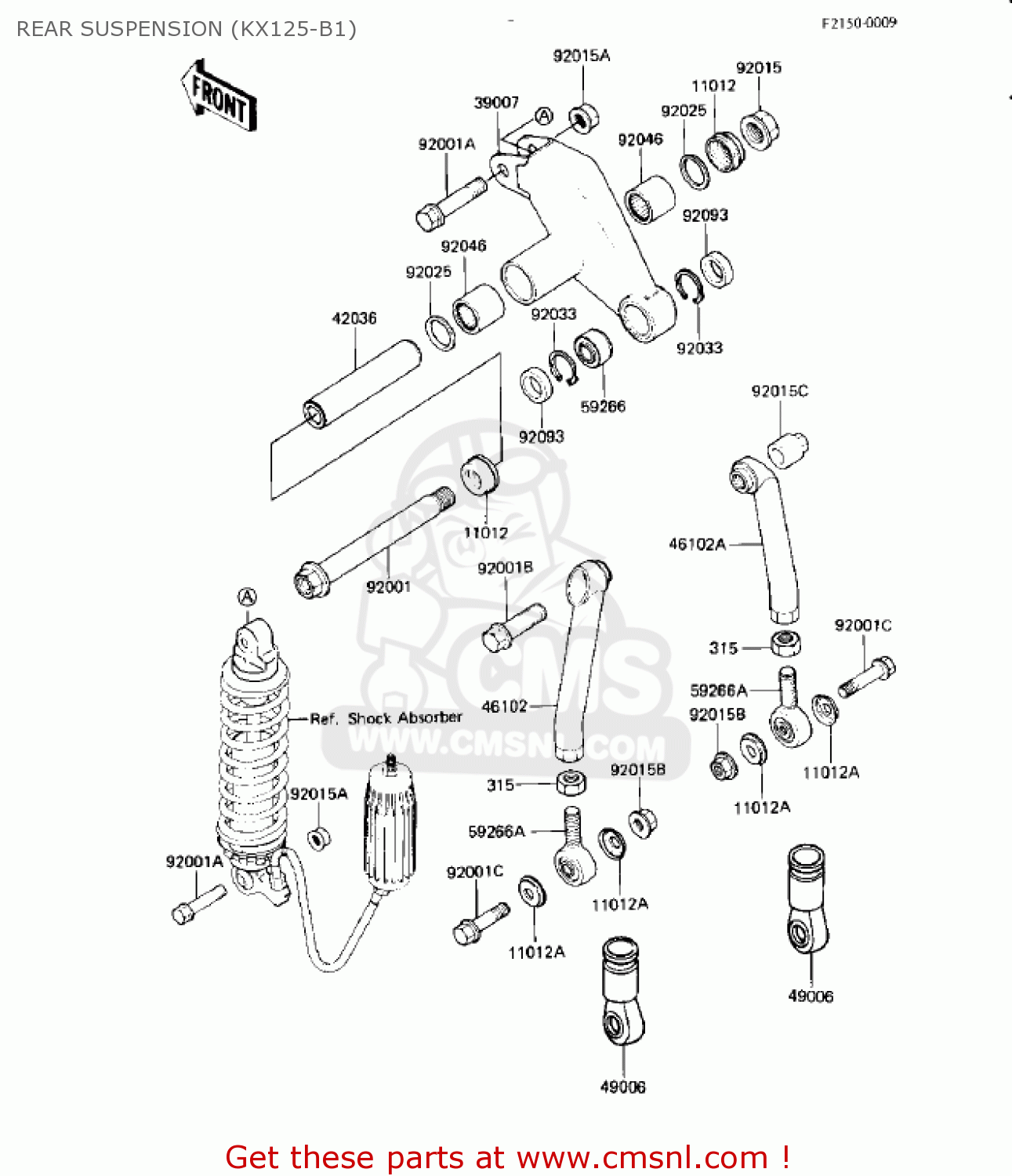

Rear suspension (kx125-b1) diagram KX125-B1 KX125 1982 USA CANADA
REAR SUSPENSION (KX125-B1) KX125-B1 KX125 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121203
ref: 11012
CAP,SUSPENSION ARM
€ 11.50
11012A
110121208
ref: 11012A
CAP
€ 6.50
39007
390071009
ref: 39007
ARM-SUSP
€ 122.00
42036
420361054
ref: 42036
SLEEVE,SUSPENSION
€ 30.00
46102
461021037
ref: 46102
ROD,L.H
€ 81.50
46102A
461021038
ref: 46102A
ROD,R.H
€ 81.50
49006
490061049
ref: 49006
BOOT,BALL JOINT
€ 7.00
59266
592661006
ref: 59266
JOINT-BALL
€ 69.00
59266A
592661007
ref: 59266A
JOINT-BALL
€ 53.50
92001
920011495
ref: 92001
BOLT,16X156
€ 47.50
92001A
920011497
ref: 92001A
BOLT,12X55
€ 6.50
92001B
920011498
ref: 92001B
BOLT,14X46
€ 5.50
92001C
920011499
ref: 92001C
BOLT,10X44
€ 3.50
92015
920151015
ref: 92015
NUT,16MM
€ 13.50
92015A
920151156
ref: 92015A
NUT,12MM
€ 4.50
92015B
920151415
ref: 92015B
NUT,10MM
€ 3.00
92015C
920151123
ref: 92015C
NUT,UNITRAK LINK
€ 17.50
92025
920251229
ref: 92025
SHIM,SUSPENSION
€ 2.50
92033
920331064
ref: 92033
RING-SNAP
€ 4.00
92046
920461041
ref: 92046
BEARING-NEEDLE
€ 55.50
92093
920931069
ref: 92093
SEAL
€ 4.00
315
315G1200
ref: 315
NUT-HEX-FINE
€ 1.00
