FRONT FORK (KX125-B1)
KX125-B1 KX125 1982 USA CANADA

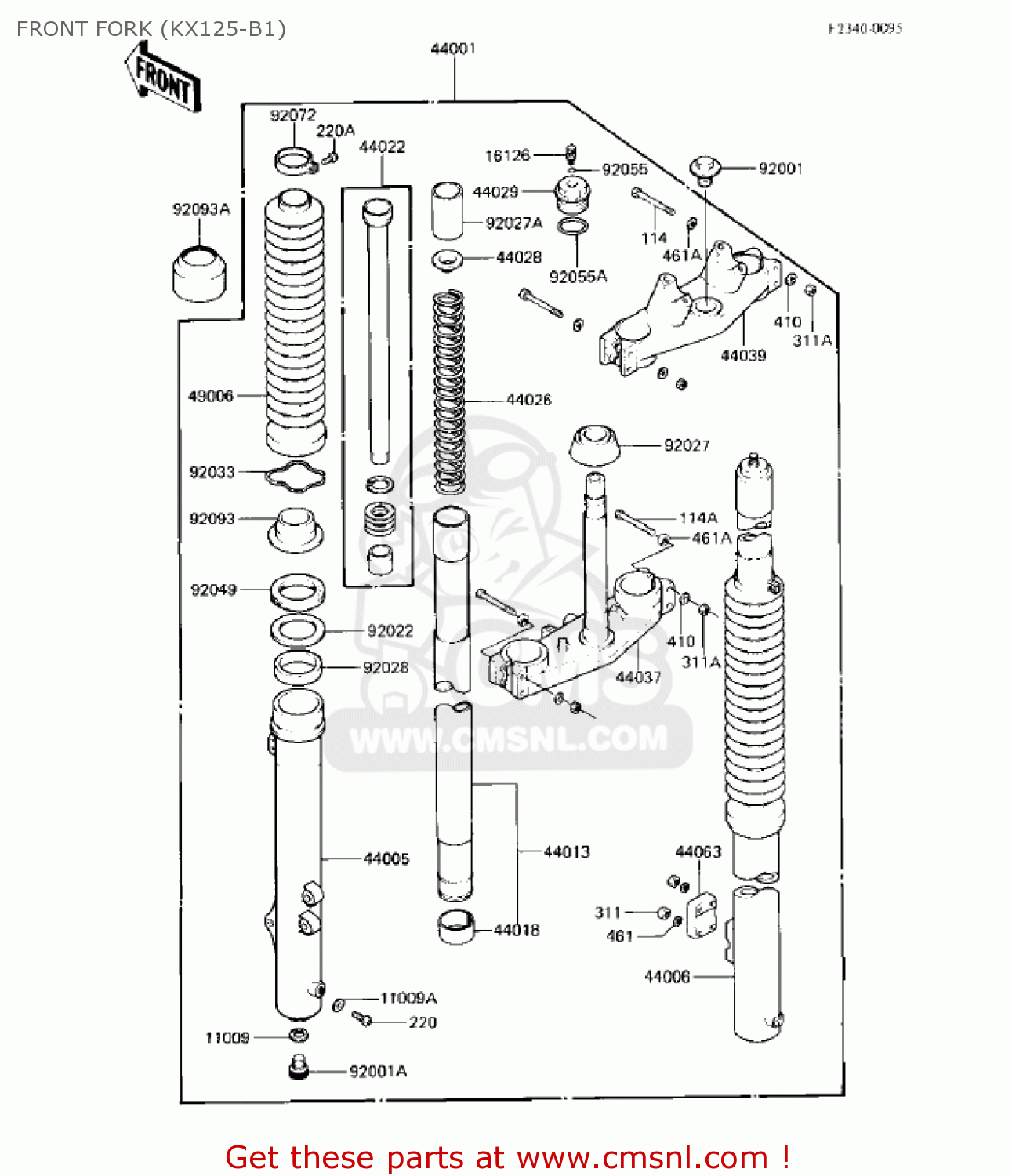

Front fork (kx125-b1) diagram KX125-B1 KX125 1982 USA CANADA
FRONT FORK (KX125-B1) KX125-B1 KX125 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
16126
161261048
ref: 16126
VALVE,AIR FRONT FORK
€ 11.50
44001
440011323
ref: 44001
FORK-FRONT
€ 1,120.50
44005
440051083
ref: 44005
PIPE-LEFT FORK OUTER
€ 254.50
44006
440061083
ref: 44006
PIPE-RIGHT FORK OUTER
€ 209.50
44013
440131081
ref: 44013
PIPE-FORK INNER
€ 211.50
44018
440181006
ref: 44018
PISTON-FORK
€ 17.00
44022
440221074
ref: 44022
CYLINDER-FORK
€ 80.50
44026
440261130
ref: 44026
SPRING-FRONT FORK
€ 34.00
44028
440281009
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291030
ref: 44029
SEAT-FORK SPRING
€ 36.00
44037
440371083
ref: 44037
HOLDER-FORK UNDER
€ 232.00
44039
440391053
ref: 44039
HOLDER-FORK UPPER
€ 128.50
44063
440631007
ref: 44063
HOLDER-FRONT AXLE
€ 14.00
49006
490061080
ref: 49006
BOOT,FORK OUTER TUBE
€ 38.00
92001
920011520
ref: 92001
BOLT
€ 10.50
92001A
920011533
ref: 92001A
BOLT,FORK CYLINDER
€ 9.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92027
920271427
ref: 92027
COLLAR,FRONT FORK
€ 41.50
92027A
920271448
ref: 92027A
COLLAR,FORK INNER
€ 6.50
92028
440651064
ref: 92028
BUSHING-FRONT FORK
€ 21.00
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491091
ref: 92049
SEAL-OIL,FORK OUTER T
€ 11.00
92055
920551094
ref: 92055
0 RING,AIR VALVE
€ 1.00
92055A
920551122
ref: 92055A
RING-O,FORK TOP CAP
€ 3.50
92072
920721077
ref: 92072
BAND,BOOT
€ 7.00
92093
920931076
ref: 92093
SEAL,FORK OUTER TUBE
€ 10.00
92093A
920931078
ref: 92093A
SEAL,DUST FORK
€ 12.00
114
114G0850
ref: 114
BOLT-HEX HEAD,8X50
€ 3.00
114A
114G0855
ref: 114A
BOLT,HEX HEAD,8X55
€ 4.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0416
ref: 220A
SCREW-PAN-CROS
€ 2.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
311A
311G0800
ref: 311A
NUT-HEX,8MM
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
