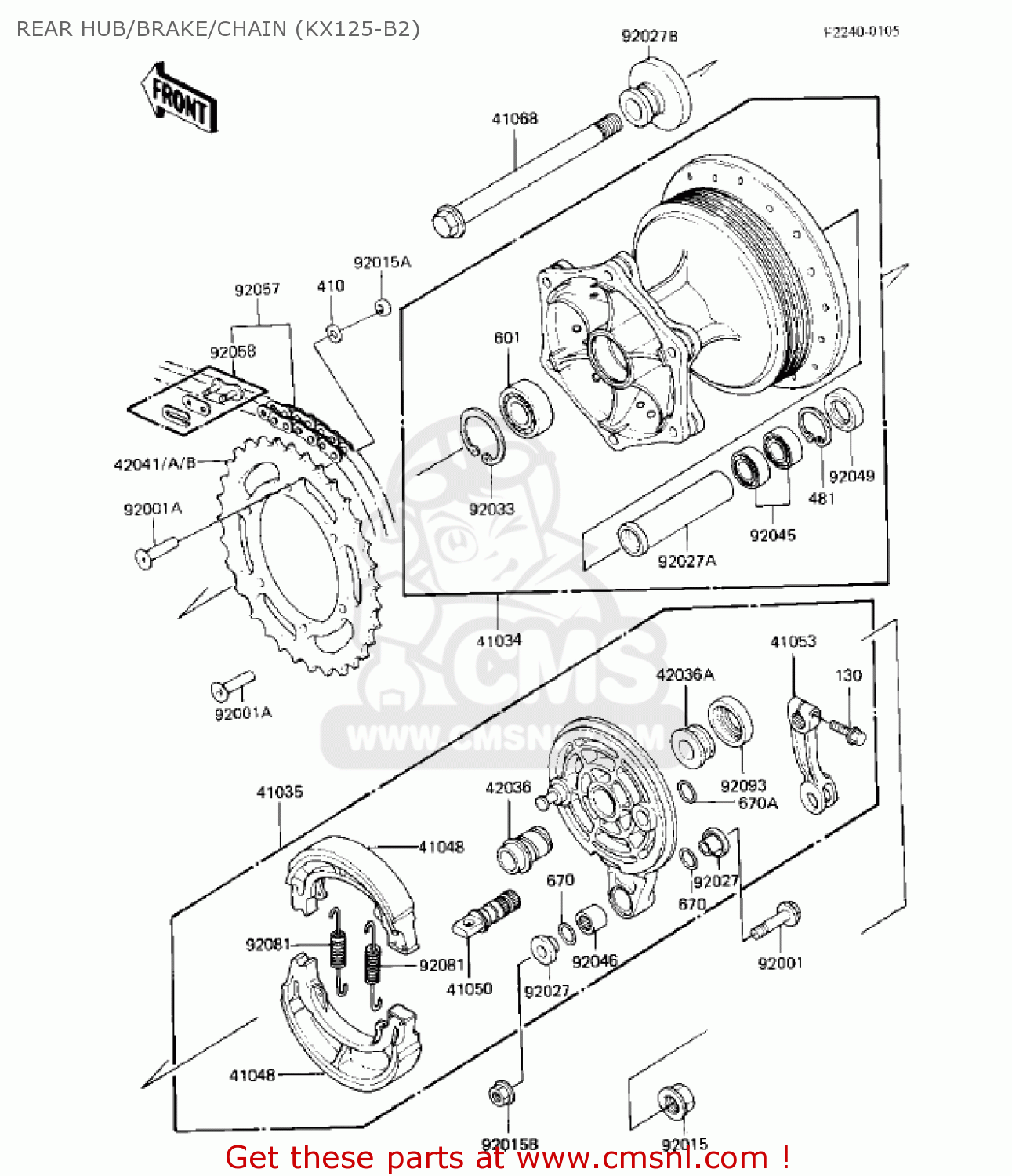

REAR HUB/BRAKE/CHAIN (KX125-B2)

ref

part #

description

quantity

41034

410345002
ref: 41034

DRUM-ASSY,RR

€ 255.50

41035

410351104
ref: 41035

PANEL -ASSY-BRAKE,RR

€ 206.00

41048

42019013
ref: 41048

SHOE, BRAKE (MCA)

€ 12.50

41050

410501022
ref: 41050

CAM-BRAKE,REAR

€ 32.50

41053

410531029
ref: 41053

LEVER-BRAKE CAM,REAR

€ 84.00

41068

410681076
ref: 41068

AXLE,RR,L=264

€ 56.50

42036

420361070
ref: 42036

SLEEVE,RR BRAKE,LH,L=

€ 38.50

42036A

420361071
ref: 42036A

SLEEVE,RR BRAKE,RH,L=

€ 17.00

42041

420411255
ref: 42041

SPROCKET-HUB,50T,AL

€ 78.50

42041A

420411104
ref: 42041A
(OPTION)

SPROCKET-HUB,51T

€ 89.00

42041B

420411256
ref: 42041B
(OPTION)

SPROCKET-HUB,49T,AL

€ 75.00

92001

920011178
ref: 92001

BOLT,FLANGED,8X38

€ 7.00

92001A

920011521
ref: 92001A

BOLT

€ 6.00

92015

920151015
ref: 92015

NUT,16MM

€ 13.50

92015A

920151134
ref: 92015A

NUT,8MM

€ 3.50

92015B

920151143
ref: 92015B

NUT,8MM

€ 0.50

92027

920271040
ref: 92027

COLLAR,L=11.5

€ 12.50

92027A

920271459
ref: 92027A

COLLAR,REAR DRUM,L=10

€ 55.00

92027B

920271460
ref: 92027B

COLLAR,RR AXLE,LH

€ 16.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92045

920451053
ref: 92045

BEARING-BALL,6903/2A

€ 27.50

92046

920461009
ref: 92046

BEARING-NEEDLE,HK1216

€ 14.50

92049

920491103
ref: 92049

SEAL-OIL,BJN22325

€ 11.50

92057

920571317
ref: 92057

CHAIN,DRIVE,DID520DSX

€ 103.50

92058

920581013
ref: 92058

JOINT-CHAIN,DRIVE

€ 6.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92093

920931004
ref: 92093

OIL SEAL

€ 3.50

130

130G0622
ref: 130

BOLT-FLANGED,6X22

€ 1.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

481

481J3000
ref: 481

CIRCLIP-TYPE-C,30MM

€ 1.00

601

601B6004U
ref: 601

BEARING-BALL,#6004UC3

€ 27.50

670

670B2011
ref: 670

O RING,11MM

€ 1.00

670A

670B2012
ref: 670A

O RING,12MM

€ 1.00
