CRANKSHAFT/PISTON
KX125-B1 KX125 1982 USA CANADA

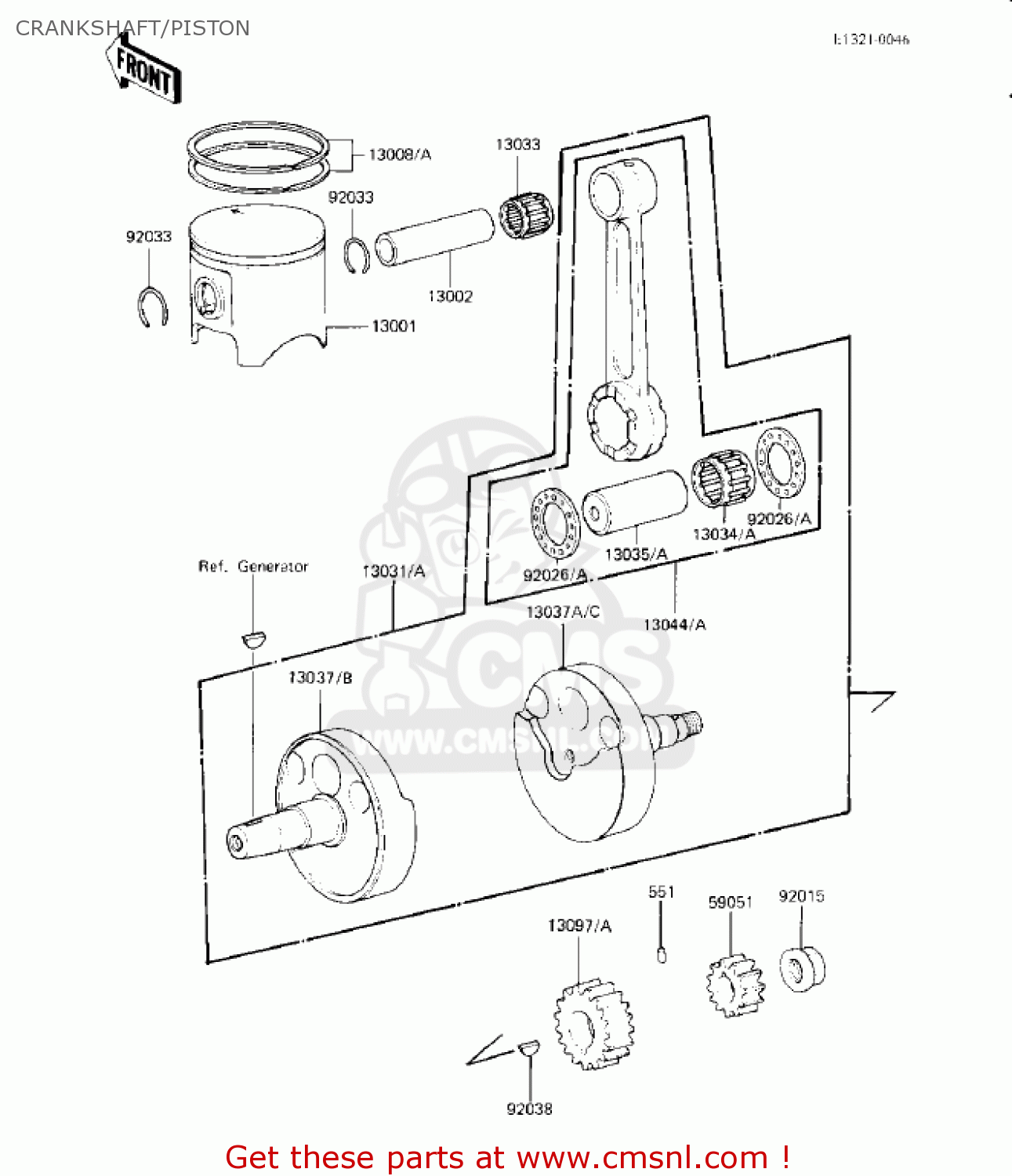

Crankshaft/piston diagram KX125-B1 KX125 1982 USA CANADA
CRANKSHAFT/PISTON KX125-B1 KX125 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
130011198
ref: 13001
PISTON-ENGINE
€ 75.50
13002
130021003
ref: 13002
PIN-PISTON
€ 16.50
13008
130085045
ref: 13008
RING-SET-PISTON
€ 39.50
13008A
130085051
ref: 13008A
RING-SET-PISTON
€ 55.00
13031
130311063
ref: 13031
CRANKSHAFT-COMP
€ 203.50
13031A
130311090
ref: 13031A
CRANKSHAFT-COMP
€ 203.50
13033
130331007
ref: 13033
BEARING-SMALL END
€ 24.00
13034
130341079
ref: 13034
BEARING-BIG END
€ 37.50
13034A
130341079
ref: 13034A
BEARING-BIG END
€ 37.50
13035
130351001
ref: 13035
PIN-CRANK
€ 25.50
13035A
13035101001
ref: 13035A
PIN-CRANK
€ 33.00
13037
130371121
ref: 13037
CRANKSHAFT,LH
€ 130.00
13037A
130371122
ref: 13037A
CRANKSHAFT,RH
€ 131.50
13037B
130371167
ref: 13037B
CRANKSHAFT,LH
€ 131.50
13037C
130371168
ref: 13037C
CRANKSHAFT,RH
€ 130.00
13044
130445018
ref: 13044
SET-CONNECTING ROD
€ 132.00
13044A
130445030
ref: 13044A
SET-CONNECTING ROD
€ 144.00
13097
130971053
ref: 13097
GEAR-PRIMARY SPUR,18T
€ 69.00
13097A
130971069
ref: 13097A
GEAR-PRIMARY SPUR,19T
€ 50.50
59051
590511035
ref: 59051
GEAR-SPUR,WATER PUMP,
€ 18.00
92015
920151161
ref: 92015
NUT,10MM
€ 3.50
92026
92026011
ref: 92026
SPACER,22.5X37X1.0
€ 6.50
92026A
920261136
ref: 92026A
SPACER,22.2X37X1.0
€ 5.50
92033
92036004
ref: 92033
CIRCLIP-PISTON PIN
€ 0.50
92038
92038003
ref: 92038
WOODRUFF KEY-PRY PINI
€ 1.50
551
551A0408
ref: 551
PIN-DOWEL,4X8
€ 0.50
