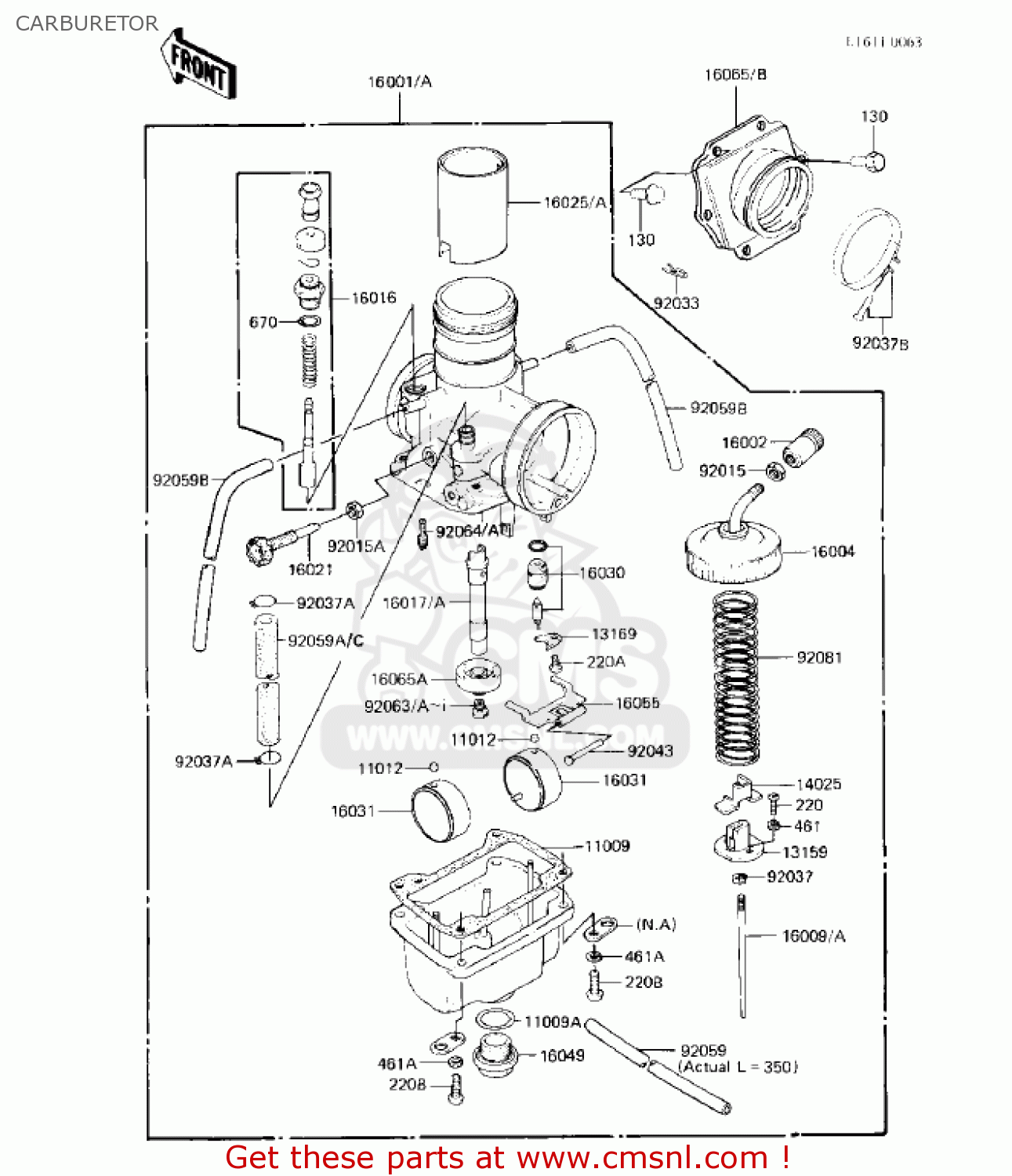

CARBURETOR

ref

part #

description

quantity

11009

110091275
ref: 11009

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

11009A

16038009
ref: 11009A

GASKET,MAIN JET COVER

€ 5.50

11012

110121047
ref: 11012

CAP,FLOAT

€ 3.50

13159

131591010
ref: 13159

CONNECTOR,THROTTLE

€ 9.00

13169

131691190
ref: 13169

PLATE,LOCK

€ 3.50

14025

140251113
ref: 14025

COVER,THROTTLE VALVE

€ 6.00

16001

160011506
ref: 16001

CARBURETOR

€ 228.00

16001A

160011677
ref: 16001A

CARBURETOR

€ 241.00

16002

160021006
ref: 16002

ADJUSTER-CABLE

€ 6.50

16004

160041013
ref: 16004

CAP-CHAMBER,MIXING

€ 34.00

16009

160091103
ref: 16009

NEEDLE-JET,5E31

€ 28.00

16009A

160091140
ref: 16009A

NEEDLE-JET,5DH92

€ 28.00

16016

160161026
ref: 16016

PLUNGER,STARTER

€ 40.50

16017

160171106
ref: 16017

JET-NEEDLE,R-6

€ 24.50

16017A

160171128
ref: 16017A

JET-NEEDLE,R-2

€ 35.50

16021

160211030
ref: 16021

SCREW-THROTTLE STOP

€ 13.00

16025

160251063
ref: 16025

VALVE-THROTTLE,CA3.0

€ 62.50

16025A

160251080
ref: 16025A

VALVE-THROTTLE,CA3.0

€ 52.50

16030

160301020
ref: 16030

VALVE-FLOAT,3.3

€ 33.00

16031

16031029
ref: 16031

FLOAT

€ 40.00

16049

16049006
ref: 16049

COVER-MAIN JET

€ 10.50

16055

16055009
ref: 16055

ARM-FLOAT

€ 12.50

16065

160651050
ref: 16065

HOLDER-CARBURETOR

€ 57.50

16065A

160651052
ref: 16065A

HOLDER-CARBURETOR,NEE

€ 15.50

16065B

160651068
ref: 16065B

HOLDER-CARBURETOR

€ 55.00

92015

16003004
ref: 92015

NUT-CABLE ADJUST LOCK

€ 4.50

92015A

16003006
ref: 92015A

NUT-CABLE ADJUST LOCK

€ 4.50

92033

92036018
ref: 92033

CIRCLIP

€ 2.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

92037056
ref: 92037A

CLAMP,FUEL TUBE

€ 3.00

92037B

920371313
ref: 92037B

CLAMP,CARBURETOR HOLD

€ 7.00

92043

16032008
ref: 92043

PIN,FLOAT

€ 4.00

92059

920591142
ref: 92059

TUBE,3.5X6.5X410

€ 16.50

92059A

920591289
ref: 92059A

TUBE,6.5X11.5X200

€ 14.00

92059B

920591292
ref: 92059B

TUBE,4X7X400,OVERFLOW

€ 5.50

92059C

920591443
ref: 92059C

TUBE,5.8X10.8X180

€ 19.50

92063

920631018
ref: 92063
(RACING USE ONLY)

JET-MAIN,#160R

€ 8.50

92063A

920631019
ref: 92063A
(RACING USE ONLY)

JET-MAIN,#162.5R

€ 11.50

920638

920631020
ref: 920638

MAIN JET,#165R

€ 7.50

92063C

920631021
ref: 92063C
(RACING USE ONLY)

MAIN JET,#167.5R

€ 7.00

92063D

920631022
ref: 92063D
(RACING USE ONLY)

JET-MAIN,#170R

€ 11.50

92063E

920631025
ref: 92063E
(RACING USE ONLY)

JET-MAIN,#155R

€ 8.50

92063F

920631026
ref: 92063F
(RACING USE ONLY)

JET-MAIN,#157.5R

€ 8.50

92063G

92063119
ref: 92063G
(RACING USE ONLY)

MAIN JET,#147.5R

€ 7.50

92063H

92063120
ref: 92063H
(RACING USE ONLY)

JET-MAIN,#150R

€ 8.50

92063I

92063121
ref: 92063I

MAIN JET,#152.5R

€ 7.00

92064

92064021
ref: 92064

PILOT JET #20 ISO

€ 12.00

92064A

92064023
ref: 92064A

JET-PILOT,#35

€ 13.00

92081

920811432
ref: 92081

SPRING,THROTTLE VALVE

€ 9.50

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0406
ref: 220A

SCREW-PAN-CROS,4X6

€ 2.50

220B

220B0516A
ref: 220B

SCREW-PAN HEAD,5X16

€ 2.50

461

461F0300
ref: 461

WASHER-SPRING,3MM

€ 0.50

461A

461F0500
ref: 461A

WASHER-SPRING,5MM

€ 0.50

670

670B1509
ref: 670

O RING,9MM

€ 1.00
