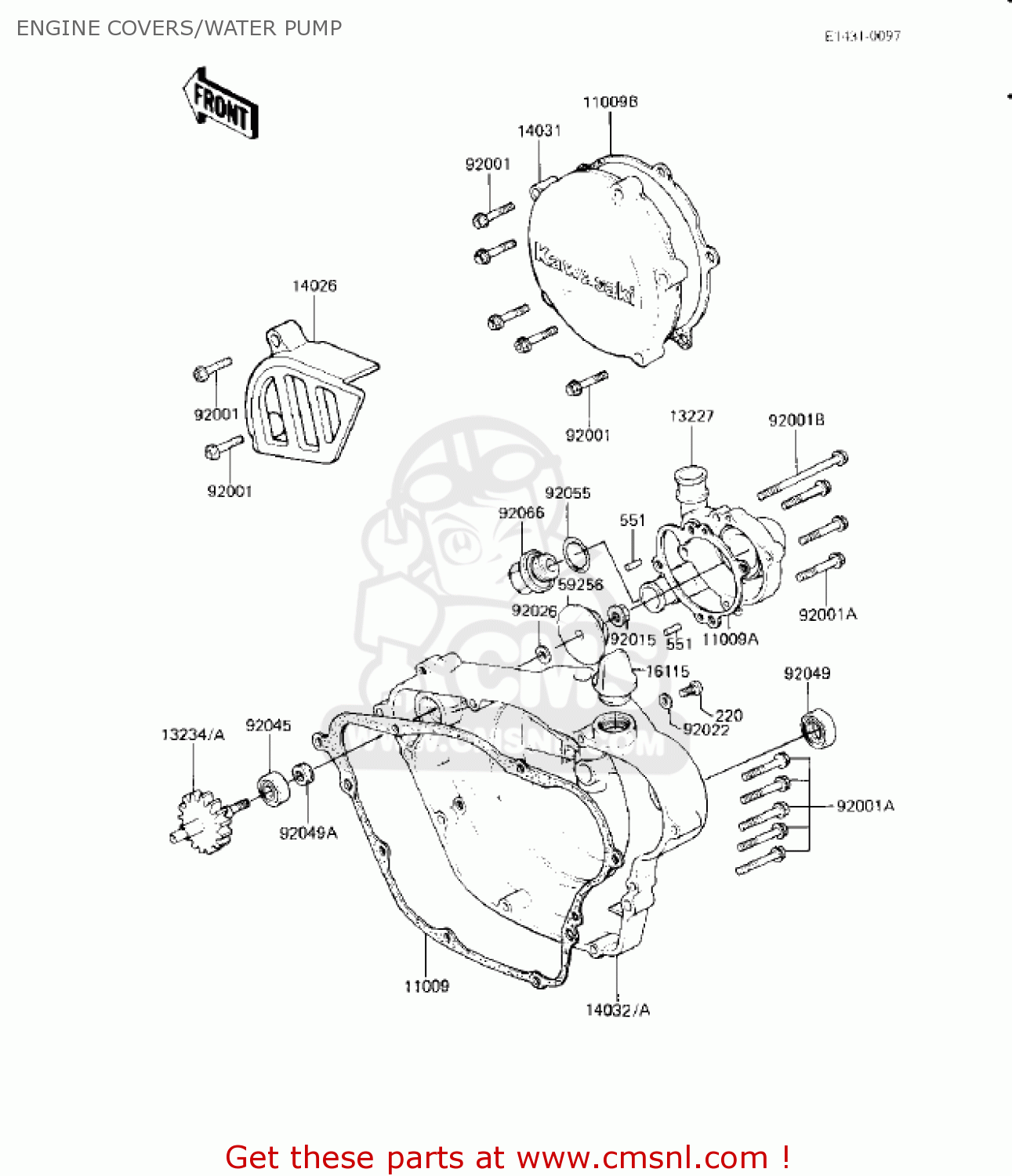

ENGINE COVERS/WATER PUMP

ref

part #

description

quantity

11009

110091264
ref: 11009

GASKET,CLUTCH COVER (MCA)

€ 16.00

11009A

110091265
ref: 11009A

GASKET,WATER PUMP HOU (MCA)

€ 6.50

11009B

110091266
ref: 11009B

GASKET,GENERATOR COVE (MCA)

€ 6.00

13227

132271004
ref: 13227

HOUSING,WATER PUMP

€ 74.50

13234

132341007
ref: 13234

SHAFT-COMP,WATER PUMP

€ 50.00

13234A

132341009
ref: 13234A

SHAFT-COMP,WATER PUMP

€ 37.50

14026

140261119
ref: 14026

COVER-CHAIN

€ 12.50

14031

140311074
ref: 14031

COVER-GENERATOR

€ 81.50

14032

140325020
ref: 14032

COVER-CLUTCH

€ 225.50

14032A

140325020
ref: 14032A

COVER-CLUTCH

€ 225.50

16115

16115018
ref: 16115

PLUG,OIL FILLER

€ 7.00

59256

592561002
ref: 59256

IMPELLER,WATER PUMP

€ 24.00

92001

132G0625
ref: 92001

BOLT-FLANGED-SMALL

€ 3.00

92001A

132G0630
ref: 92001A

BOLT-FLANGED-SMALL

€ 1.50

92001B

132G0670
ref: 92001B

BOLT-FLANGED-SMALL

€ 1.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92026

92026094
ref: 92026

WASHER,THRUST

€ 6.50

92045

920451212
ref: 92045

BEARING-BALL

€ 11.50

92049

92049002
ref: 92049

OIL SEAL SB16244

€ 6.00

92049A

920491366
ref: 92049A

SEAL-OIL,MHSD8X18X10J

€ 12.50

92055

920551146
ref: 92055

RING-O

€ 5.50

92066

92066066
ref: 92066

PLUG

€ 7.00

220

220B0608
ref: 220

SCREW-PAN HEAD,6X8

€ 0.50

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50
